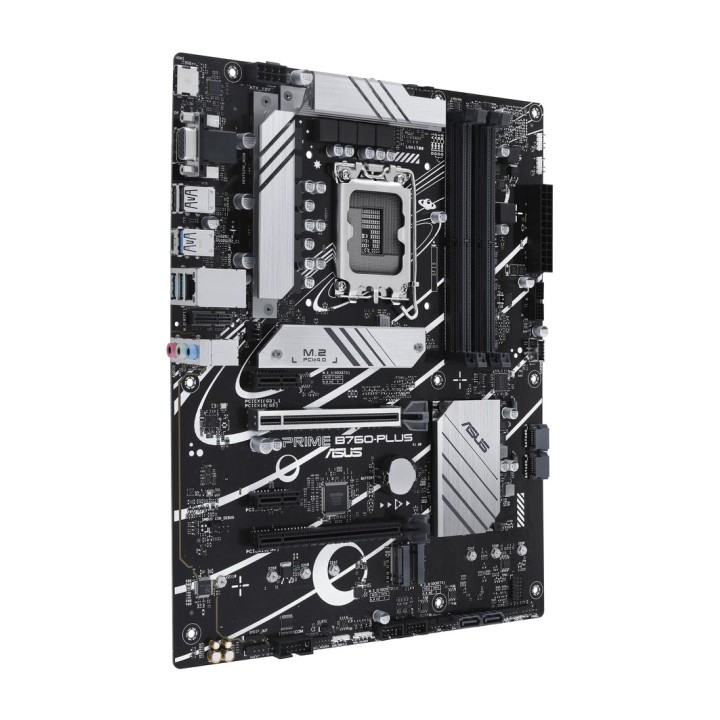

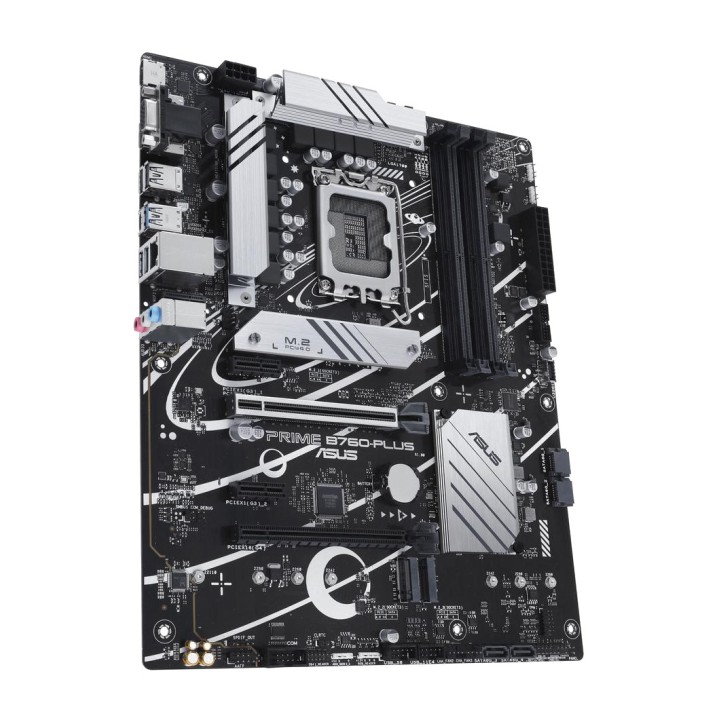

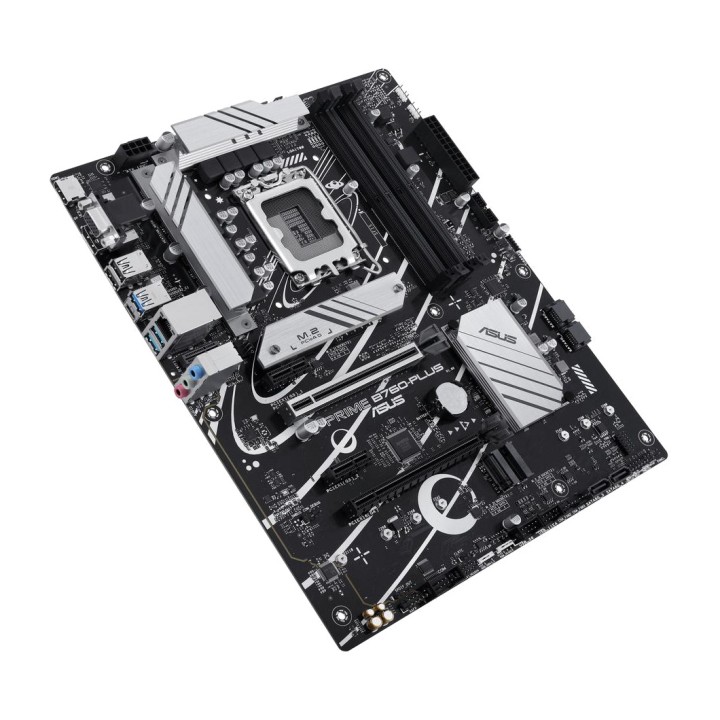

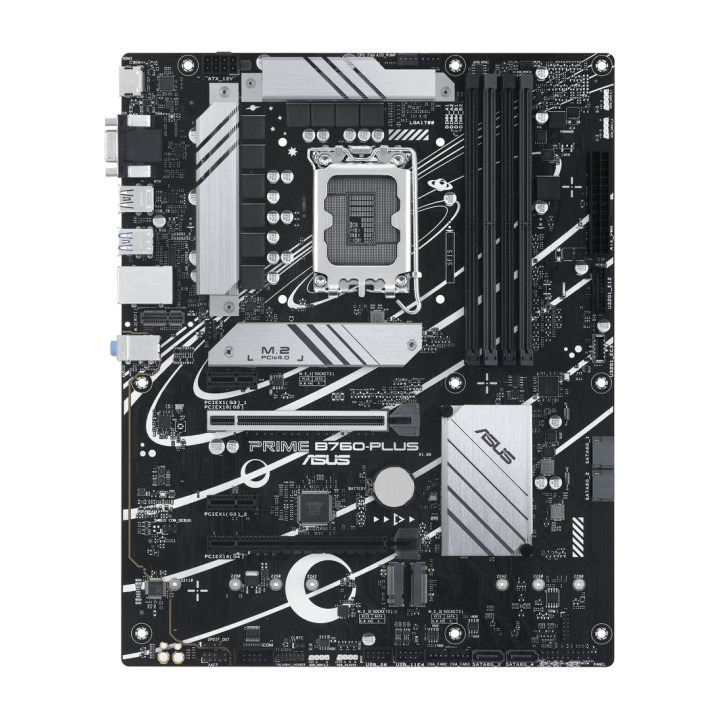

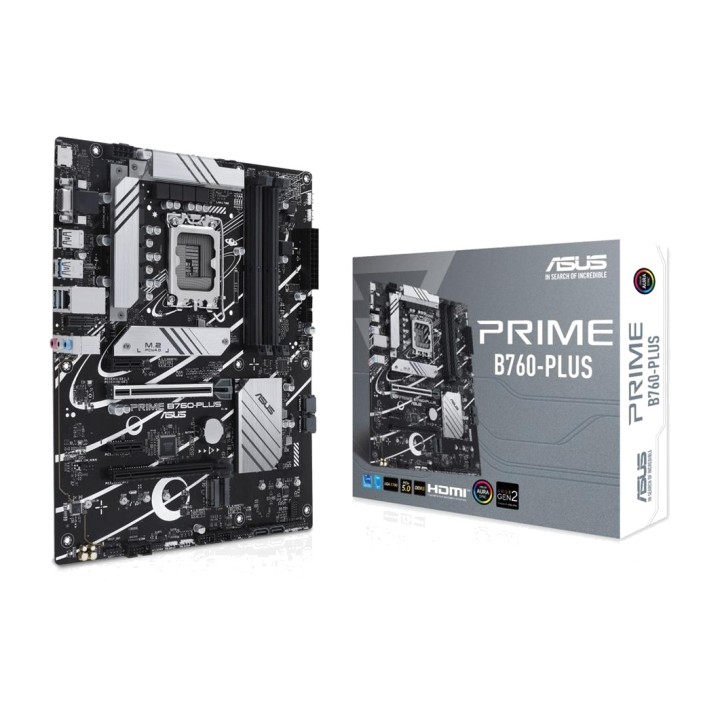

ASUS ATX motherboard for Intel PRIME B760-PLUS LGA1700 DDR5 MGS0000031663

Features of the ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
The ASUS PRIME B760-PLUS motherboard provides a solid, versatile foundation for building systems with the latest-generation Intel processors. Designed in ATX format and equipped with the Intel B760 chipset, it is intended for users looking for stability, modern connectivity and upgradeability. Ideal for work systems as well as light gaming or home configurations.
Broad compatibility with Intel processors
Thanks to its LGA 1700 socket, this motherboard is compatible with a wide range of Intel processors, including 12th-, 13th- and 14th-generation models. This ensures a long service life and upgrade options without having to change the base platform.

Intel socket ® LGA 1700
Compatible with Intel Core™ i9/i7/i5/i3, Pentium Gold and Celeron
Intel chipset ® B760

Performance with next-generation DDR5 memory
The ASUS PRIME B760-PLUS supports DDR5 memory, enabling higher speeds and greater energy efficiency compared with previous generations. It also includes exclusive ASUS technologies that improve RAM stability and overclocking.

4 slots DIMM DDR5
Maximum capacity of up to 192 GB
Compatible with ASUS OptiMem II and AEMP II

Fast storage and extensive expansion options
Equipped with 3 PCIe 4.0 M.2 slots and several PCIe slots for graphics or expansion cards, this motherboard offers great flexibility when building a system tailored to your needs. In addition, the SATA ports allow you to connect traditional SSD or HDD drives.

1 x PCIe 5.0 x16 SafeSlot Core+
1 x PCIe 4.0 x16 (x4 mode) and 2 x PCIe 3.0 x1
3 x M.2 PCIe 4.0 and 4 x SATA 6 Gb/s ports

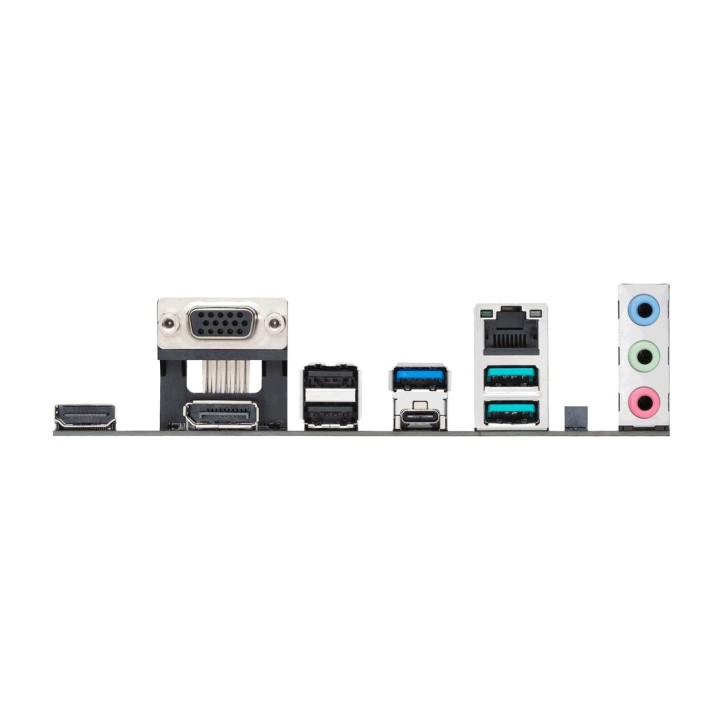

Modern connectivity and high-speed networking
Connectivity is ensured thanks to a comprehensive selection of USB ports and integrated video outputs. It also features 2.5 Gb Ethernet, ideal for fast transfers and lag-free online gaming.

Realtek® 2.5 Gb Ethernet
USB 3.2 Gen 2 and USB-C ports, and Thunderbolt header ™ (USB4®)
Video outputs: HDMI™, DisplayPort and VGA

Efficient cooling and ASUS reliability
With dedicated heatsinks for the VRM and M.2 drives, and Fan Xpert 2+ technology, this motherboard ensures efficient thermal management. The system stays cool even under demanding workloads.

Heatsinks for VRM and M.2
Fan Xpert 2+ with intelligent fan control
Multiple connectors for fans and pumps

Other specifications

Form factor: ATX (305 mm x 244 mm)
Audio: Realtek 7.1-channel high definition
UEFI BIOS with EZ Mode and Advanced Mode
Compatible with Windows 11 and Windows 10 64-bit
Volume (m ³): 0.0053
