MSI Micro ATX motherboard PRO B860M-P WIFI6E LGA1851 DSP0000041993

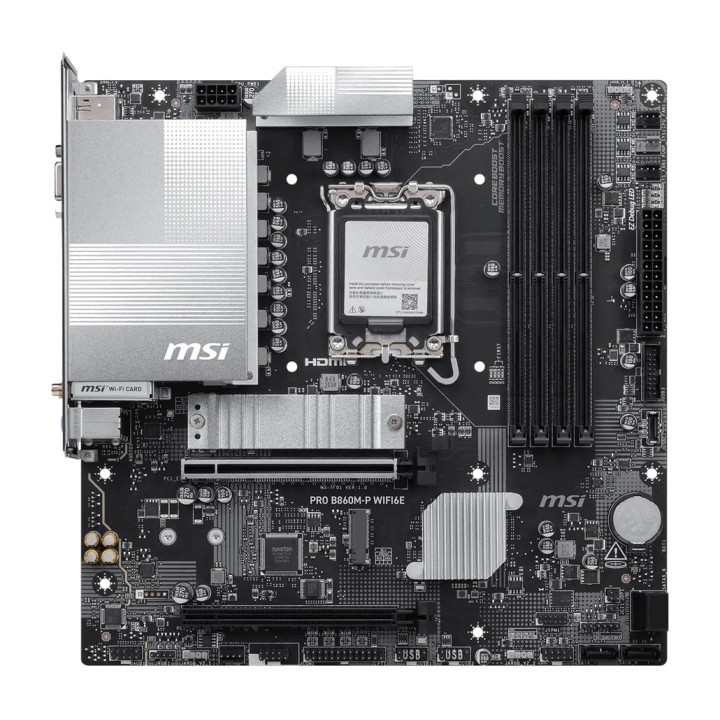

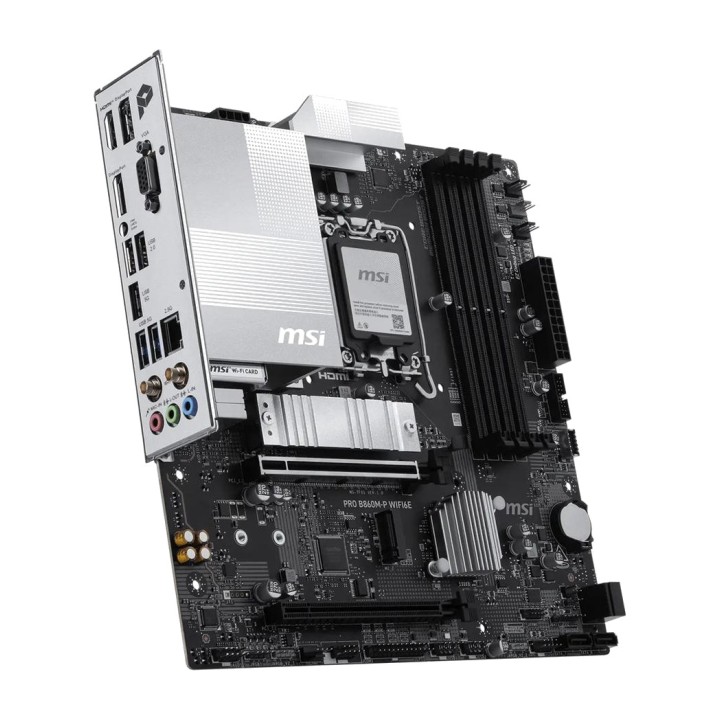

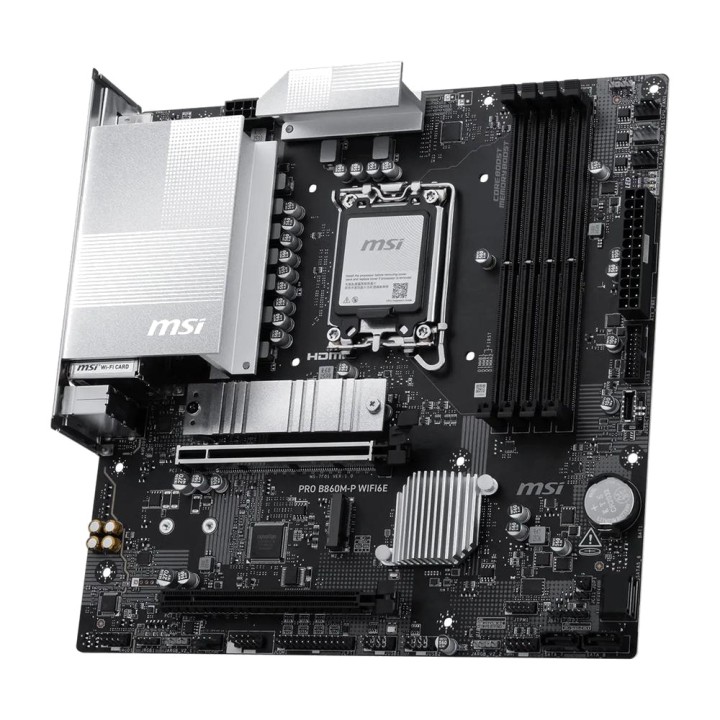

Motherboard Features MSI PRO B860M-P WIFI6E
The MSI PRO B860M-P WIFI6E is a Micro-ATX motherboard designed to get the most out of Intel® Core™ Ultra processors (Series 2) with an LGA 1851 socket. Its elegant silver-toned design pairs perfectly with white or black systems, while its comprehensive connectivity, DDR5 compatibility, PCIe 5.0, Wi-Fi 6E and 2.5G LAN make it an excellent foundation for work, productivity and advanced-use systems.
Compatible with Intel® Core™ Ultra processors and high-speed DDR5 memory
Ready for the new generation of Intel processors, this motherboard delivers advanced performance thanks to the Intel B860 chipset and support for DDR5 memory up to 8800 MT/s via overclocking. It also supports Intel XMP 3.0 profiles for easy memory configuration and to make the most of its potential.

LGA 1851 socket compatible with Intel® Core™ Ultra (Series 2).
4 DDR5 UDIMM slots with a maximum capacity of 256 GB.
Supports DDR5 memory up to 8800 MT/s (OC).
Compatible with Intel XMP 3.0 and memory overclocking.
Dual-channel architecture with support for Non-ECC and CUDIMM memory.

Ultra-fast storage with PCIe 5.0
The MSI PRO B860M-P WIFI6E features next-generation connectivity for SSDs, allowing you to take advantage of the highest available speeds thanks to its M.2 PCIe 5.0 x4 slot. It also offers a second M.2 PCIe 4.0 slot and four SATA ports to expand storage capacity.

1 M.2 PCIe 5.0 x4 slot from the CPU.
1 M.2 PCIe 4.0 x4 slot from the chipset.
4 SATA 6 Gb/s ports.
Supports RAID 0, 1, 5 and 10 for SATA drives.

Modern connectivity for any environment
This motherboard offers comprehensive wired and wireless connectivity. It features Wi-Fi 6E with an EZ Antenna, Bluetooth® 5.3 technology and a 2.5 Gigabit Ethernet network connection for fast transfers and stable connections.

Wi-Fi 6E supports the 2.4 GHz, 5 GHz and 6 GHz bands.
Wireless speeds of up to 2.4 Gbps.
Bluetooth ® 5.3.
Realtek® 2.5Gbps LAN port.

Extensive expansion options and USB connectivity
The PRO B860M-P WIFI6E is ready for high-performance components, thanks to its PCI Express slots and a wide selection of rear and internal USB ports for peripherals and accessories.

1 PCIe slot 5.0 x16.
1 PCIe 4.0 x16 slot (x4 electrical).
5 USB 5Gbps Type-A ports.
1 USB 5Gbps Type-C port for the front panel.
6 USB 2.0 ports across rear and internal connections.

Supports multiple displays
Thanks to its various video outputs, this motherboard can connect multiple monitors when used with a processor featuring integrated graphics. It is an ideal solution for office environments, productivity or multitasking setups.

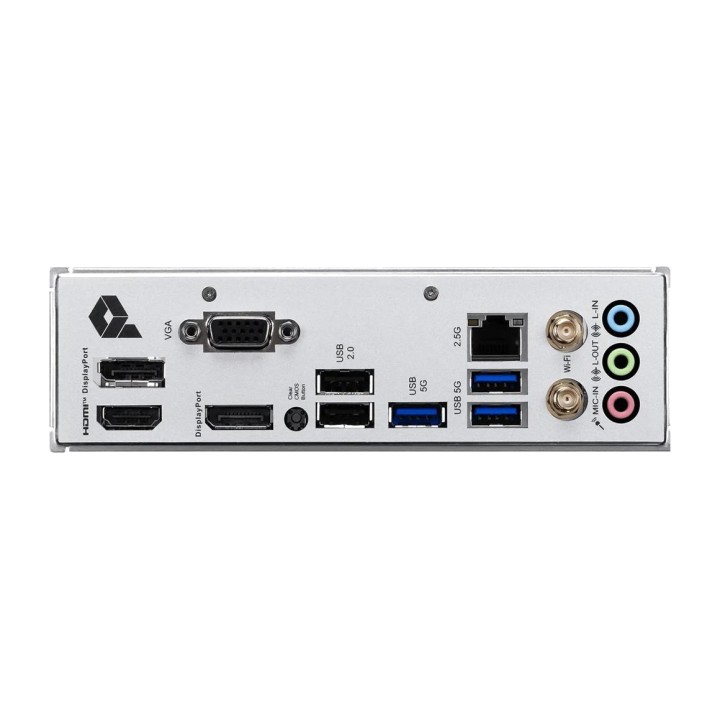

1 HDMI™ 2.1 port with a maximum resolution of 4K at 60 Hz.
2 DisplayPort 1.4 ports with resolutions up to 4K at 60 Hz.
1 VGA (D-Sub) output.

Designed for easy and reliable installation
MSI includes several features to simplify system installation, monitoring and maintenance. The LED indicators make it easy to identify potential issues during startup, while the Clear CMOS button simplifies restoring the BIOS settings.

4 EZ Debug LED indicators.
EZ Memory Detection LED.
Clear CMOS button on the rear panel.
RGB and Addressable RGB Gen connectors 2.
COMPATIBLE WITH TPM 2.0.

Other specifications

Intel chipset ® B860.
Micro-ATX form factor.
Dimensions: 243.84 x 243.84 mm.
Realtek® ALC897 audio codec with 7.1-channel HD sound.
Internal connectors for CPU Fan, PUMP_SYS and 2 system fans.
Connectors for front audio, COM port, parallel port (LPT), TPM and chassis intrusion detection.
Compatible with 64-bit Windows® 11.
Volume (m ³): 0.0053
