MSI ATX motherboard B550-GAMING AM4 DSP0000041986

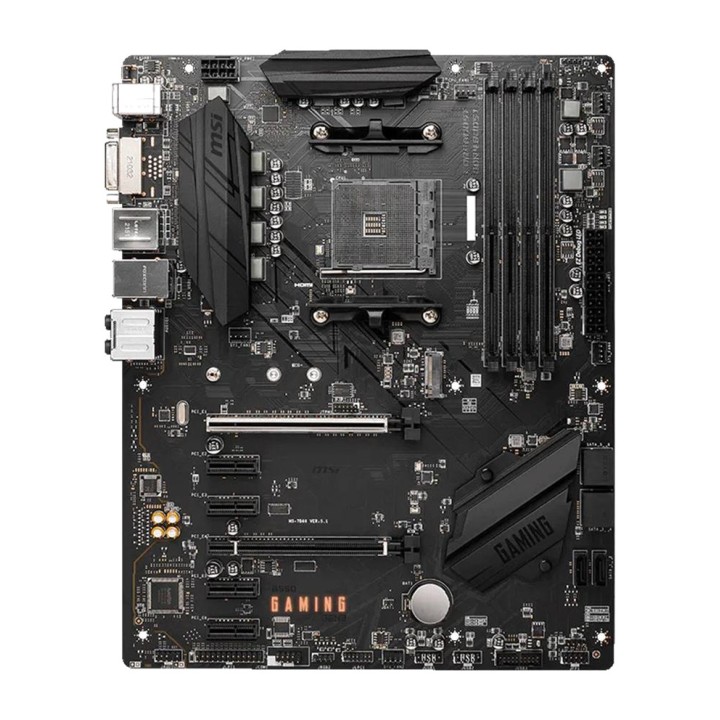

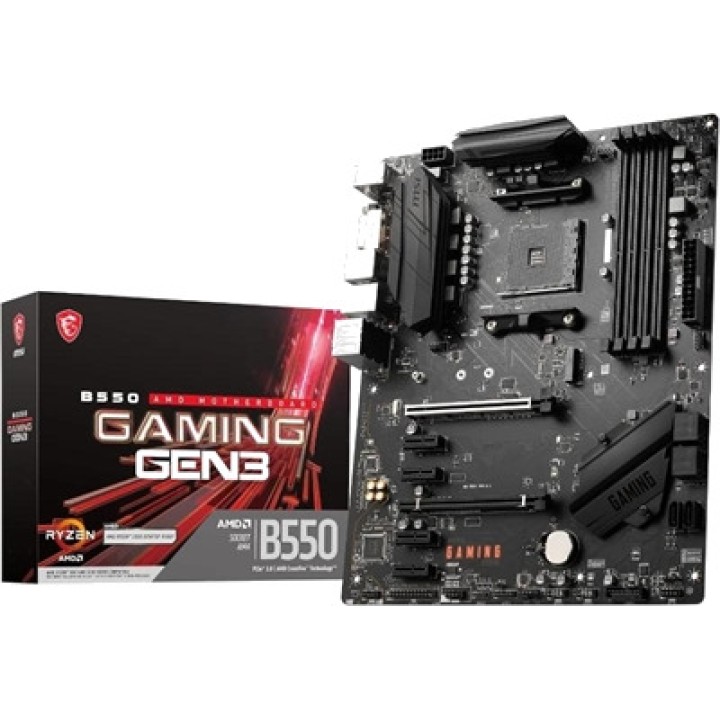

Features of the MSI MPG B550 GAMING GEN3 DDR4 ATX AM4
The MSI MPG B550 GAMING GEN3 is an ATX motherboard designed to get the most out of AMD Ryzen processors with an AM4 socket. Based on the AMD B550 chipset, it offers an excellent combination of performance, expandability and connectivity, making it an ideal choice for gaming, productivity or content creation systems.
Compatible with AMD Ryzen processors
This motherboard is compatible with a wide range of AMD Ryzen processors, providing a platform ready for high-performance configurations and future upgrades within the AM4 ecosystem.

Socket AM4.
Compatible with AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series and Series processors 3000.
Chipset AMD B550.

High-speed DDR4 memory
Thanks to its four DDR4 slots, it supports up to 128 GB of memory in dual-channel configuration. It also supports A-XMP profiles to achieve very high frequencies through overclocking.

4 DDR4 slots with a maximum capacity of 128 GB.
Dual Channel architecture.
Compatible with DDR4 memory up to 4400+ MHz via A-XMP OC.
Compatible with Non-ECC UDIMM, ECC UDIMM (Non-ECC mode) and Un-buffered memory.

Extensive expansion options
The MSI MPG B550 GAMING GEN3 features several PCI Express slots for installing graphics cards, expansion cards and other devices, offering a versatile configuration for different needs.

2 PCIe slots x16.
4 PCIe slots x1.
Compatible with AMD CrossFire technology.

Fast and flexible storage
It features connections for M.2 SSDs and SATA drives, allowing you to create fast, high-capacity storage systems. It is also compatible with RAID configurations to improve performance or data security.

1 M.2 Key M slot compatible with PCIe 3.0 x4 and SATA 6 Gb/s.
Compatible with 2260, 2280 and formats 22110.
6 SATA 6 Gb/s ports.
Compatible with RAID 0, RAID 1 and RAID 10.

Video and network connectivity
When using a processor with integrated graphics, the motherboard provides digital video outputs for connecting high-resolution monitors. It also features Gigabit Ethernet network connectivity for a stable connection.

1 HDMI™ 2.0b port with a maximum resolution of 4096x2160 at 30 Hz.
1 DVI-D port with a maximum resolution of 1920x1200 at 60 Hz.
Realtek® RTL8111H Gigabit LAN controller.

High-definition audio
The Realtek ALC897 codec provides high-definition sound for an immersive experience in games and multimedia content alike.

Realtek codec ® ALC897.
7.1-channel HD audio.

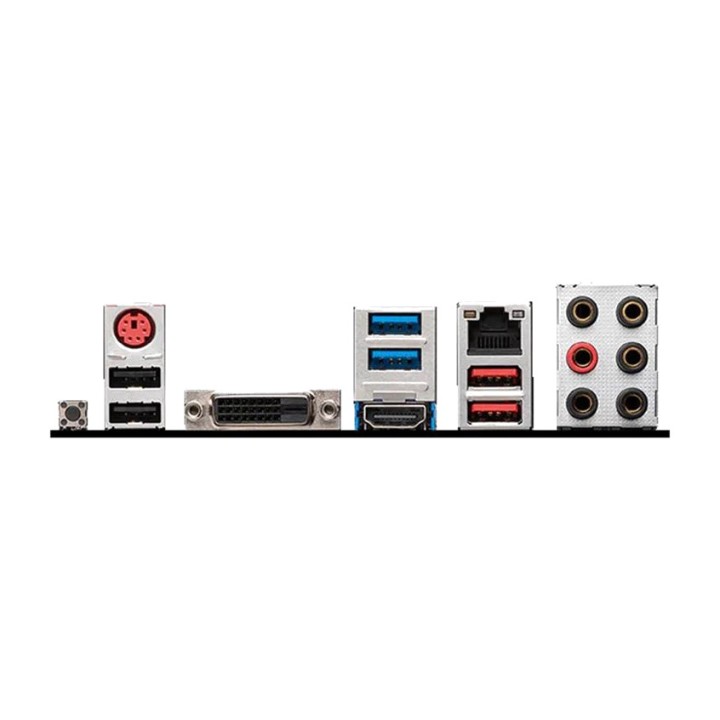

USB connectivity and rear panel
It includes a wide range of connections for peripherals and external devices, as well as practical features such as the Flash BIOS button to make firmware updates easier.

USB 3.2 Gen 2 Type-A up to 10 Gbps.
USB 3.2 Gen 1 Type-A up to 5 Gbps.
USB 2.0.
Gigabit LAN port.
Audio connectors.
HDMI™ and DVI-D ports.
BIOS Flash button.
Combined keyboard and mouse port.

Cooling and monitoring
The motherboard is designed to maintain efficient cooling thanks to its numerous connectors for fans and liquid-cooling pumps, along with system monitoring features.

1 CPU fan connector.
1 liquid cooling pump connector.
4 system fan connectors.
CPU, system and chipset temperature monitoring.
Speed control for fans and pump.

Lighting and additional features
It includes connectors for RGB lighting and diagnostic tools that make assembling and maintaining the system easier.

2 4-pin RGB connectors.
4 EZ Debug LED indicators.
Clear CMOS jumper.
TPM connector.
Chassis intrusion connector.
Serial port and parallel port connectors.

Other specifications

ATX form factor.
Dimensions: 30.5 x 24.4 cm.
Controller I/O NUVOTON NCT6797.
AMI UEFI BIOS, 256 Mb.
Compatible with ACPI 6.1 and SMBIOS 2.8.
Multilingual BIOS.
24-pin ATX power connector.
8-pin ATX12V connector.
1 internal USB 3.2 Gen 1 connector for 2 additional ports.
2 internal USB 2.0 connectors for 4 additional ports.
Included software: MSI Center, CPU-Z MSI GAMING, Google Chrome™, Google Toolbar, Google Drive and Norton™ Internet Security Solution.
Volume (m ³): 0.0091
