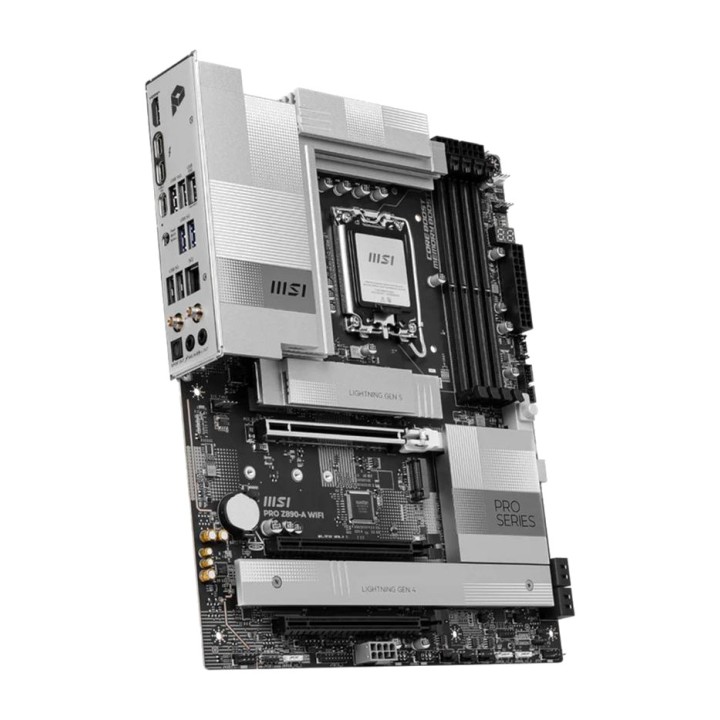

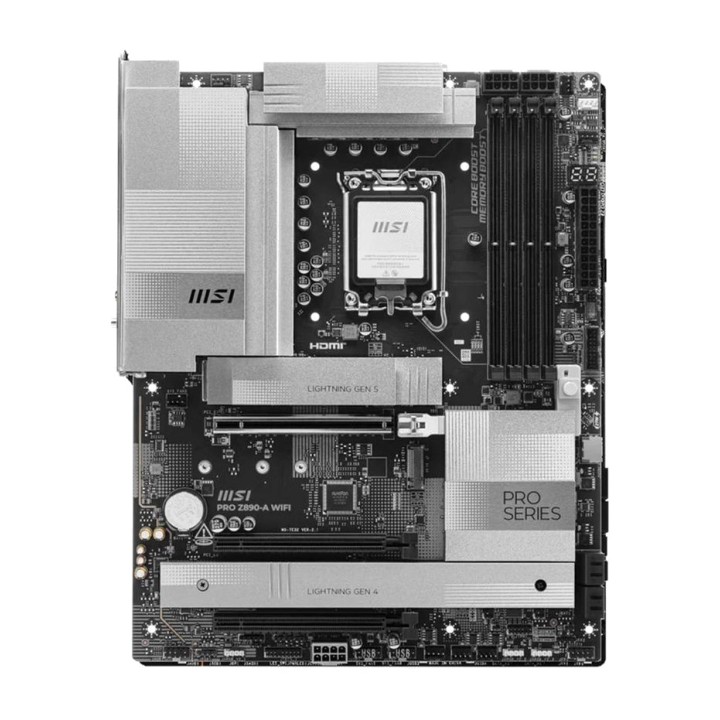

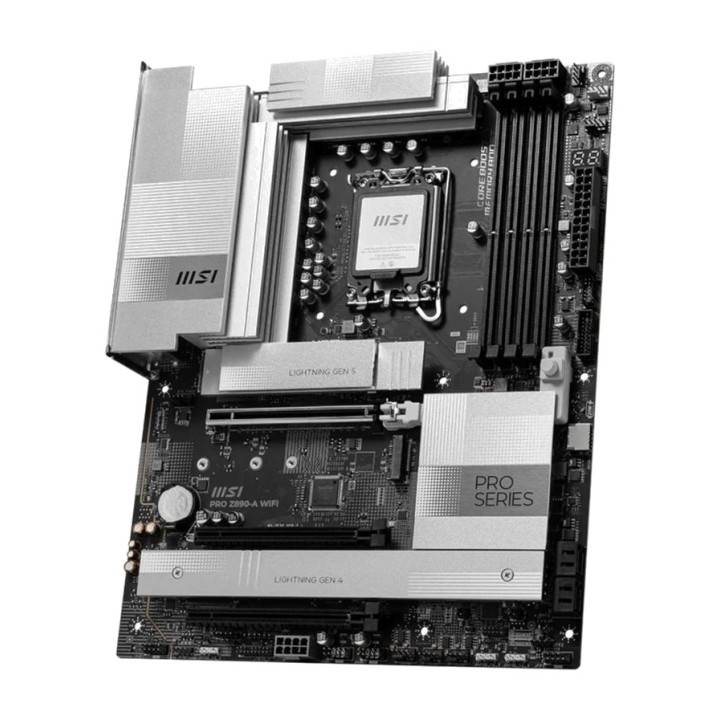

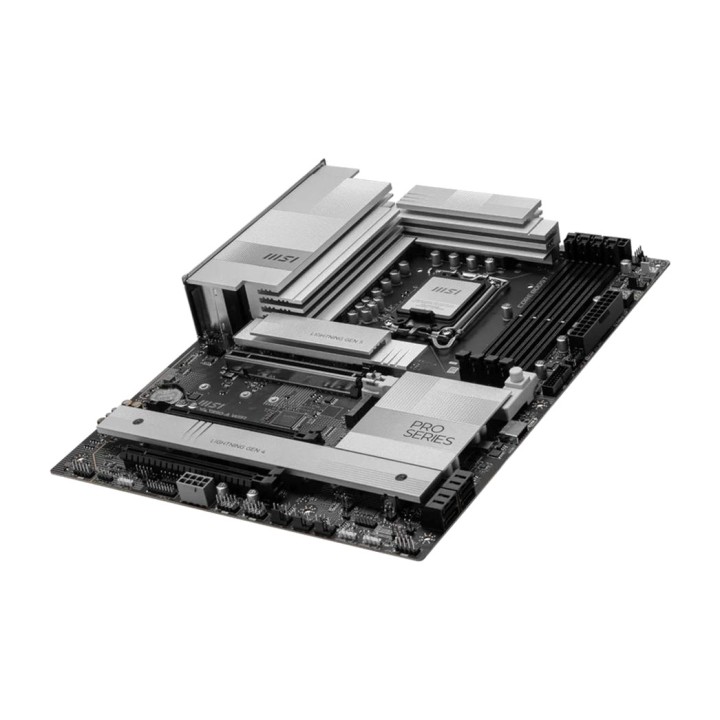

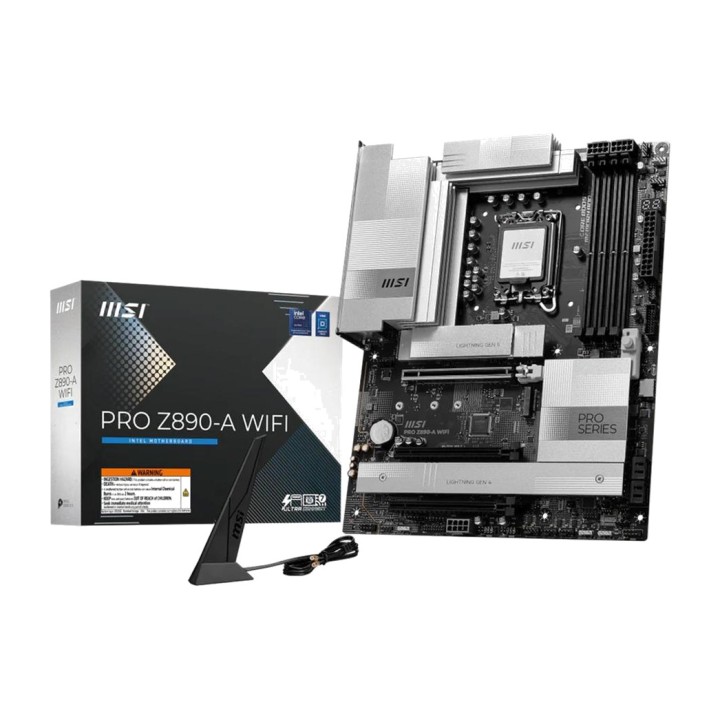

MSI ATX motherboard PRO Z890-A-WIFI LGA1851 DSP0000041845

Features of the MSI PRO Z890-A WIFI
The MSI PRO Z890-A WIFI is an ATX motherboard designed for users seeking high performance, stability and next-generation connectivity. Based on the Intel Z890 chipset, it supports Intel® Core™ Ultra (Series 2) processors for the LGA 1851 socket and is ready to make the most of work, content creation and high-end gaming systems thanks to its support for DDR5, PCIe 5.0, Wi-Fi 7 and Thunderbolt™ 4.
Ready for Intel® Core™ Ultra processors (Series 2)
Its platform features the Intel Z890 chipset alongside an advanced power delivery system that ensures stable operation even under heavy loads. Core Boost technology and the power design let you harness the full potential of the latest processors.

LGA 1851 socket compatible with Intel® Core™ Ultra (Series 2).
Intel chipset Z890.
ATX form factor.
16+1+1+1-phase Digital PWM power system with SPS of 90 A.
Dual 8-pin CPU power connectors.
6-layer PCB with 2 oz copper and server-grade materials.

High-speed DDR5 memory
Thanks to Memory Boost technology and Intel XMP 3.0 compatibility, this motherboard supports high-performance DDR5 memory for greater performance in both professional applications and games.

4 slots DDR5 UDIMM.
Maximum capacity of up to 256 GB.
Supports speeds of up to 9200+ MT/s via overclocking.
Intel compatible XMP 3.0.
Support for Non-ECC and CUDIMM memory.

PCIe 5.0 and ultra-fast storage
The MSI PRO Z890-A WIFI features connectivity ready for the latest graphics cards and SSDs, offering high bandwidth to reduce loading times and improve overall system performance.

1 PCIe 5.0 x16 slot with Steel Armor II.
2 PCIe 4.0 x16 slots (x4 electrical).
1 M.2 PCIe 5.0 x4 connector, up to 128 Gbps.
3 M.2 PCIe connectors 4.0 x4.
4 SATA 6 Gb/s ports.
Compatible with RAID 0, 1, 5 and 10 for SATA and NVMe.

Frozr cooling for stable operation
The Frozr design improves heat dissipation from the main components, helping maintain consistent performance even during long work or gaming sessions.

Extended heatsinks.
7 W/mK MOSFET thermal pads.
EZ M.2 Shield Frozr II for SSDs.
Smart fan control via MSI Center.
Dedicated connectors for CPU fans, pump and system.

Next-generation professional connectivity
The motherboard offers a comprehensive selection of connections for modern systems, combining Thunderbolt™ 4, 5 Gbps LAN and Wi-Fi 7 to facilitate file transfers, connection of high-resolution monitors and access to high-speed networks.

2 Thunderbolt™ 4 ports up to 40 Gbps.
Realtek® 5GbE LAN network.
Intel® Wi-Fi 7.
Bluetooth ® 5.4.
Supports displays up to 8K via Thunderbolt ™ 4.

EZ DIY design for easier assembly
EZ DIY features make both system installation and maintenance easier, reducing the time needed to install components or perform upgrades.

EZ PCIe Release to remove the graphics card with a single button.
EZ M.2 Shield Frozr II tool-free.
EZ M.2 Clip II for screwless SSD installation.
EZ Antenna magnetic Wi-Fi antenna.
Flash BIOS Button for easy BIOS updates.

High-definition audio and video outputs
Thanks to the Realtek® ALC1220P codec, the motherboard delivers high-quality sound for entertainment, gaming and multimedia content. It also offers video outputs that support very high resolutions when used with a processor featuring integrated graphics.

7.1-channel HD audio.
S/PDIF output.
1 HDMI™ 2.1 port supporting up to 4K at 120 Hz.
2 Thunderbolt™ 4 ports with DisplayPort 2.1.
Supports resolutions up to 8K at 60 Hz.

Other specifications

Compatible with 64-bit Windows® 11.
4 EZ Debug LEDs and 1 EZ Digit Debug LED.
1 Thunderbolt 5 Card connector (JTBT5).
1 8-pin PCIe_PWR connector.
6 system fan connectors.
1 CPU fan connector.
1 liquid cooling pump connector.
3 ARGB V2 connectors and 1 RGB connector.
CONNECTOR TPM 2.0.
Front USB 20 Gbps Type-C port with USB PD fast charging up to 27 W.

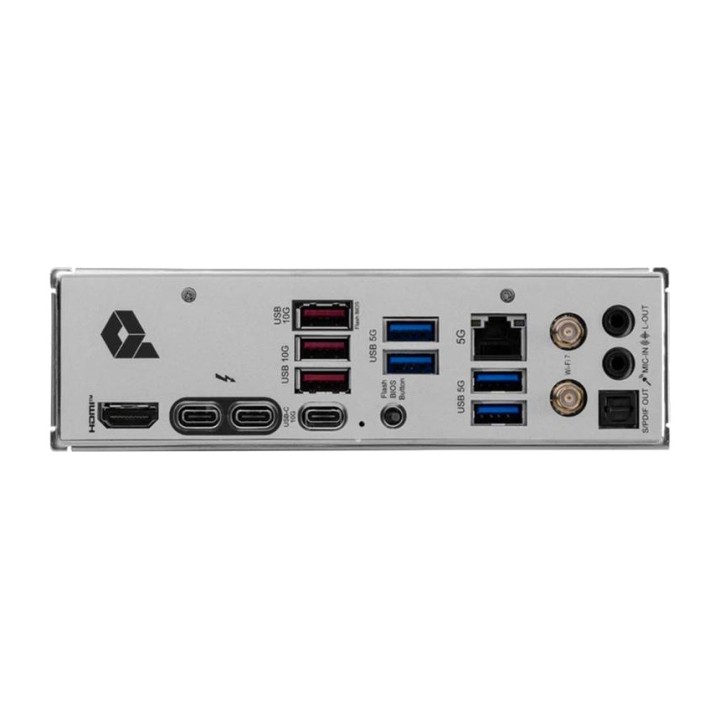

Rear panel with USB 10 Gbps, USB 5 Gbps, HDMI™, Thunderbolt™ 4, USB Type-C, 5G LAN, audio connectors, S/PDIF output and Flash BIOS button.
Volume (m ³): 0.0091
