MSI micro ATX motherboard for Intel Core Ultra PRO H810M-B DDR5 LGA1851 DSP0000033462

Motherboard Features MSI PRO H810M-B
The MSI PRO H810M-B is a micro ATX motherboard designed to provide a reliable, efficient and future-ready foundation for work PCs, multimedia workstations or advanced home setups. Thanks to its compatibility with Intel Core Ultra processors (Series 2) and support for up to 128 GB of DDR5 memory, it enables the construction of high-performance systems with an excellent balance of efficiency, power and connectivity.
Next-generation compatibility with Intel Core Ultra
This motherboard is equipped with the new LGA 1851 (Socket V1) socket and an Intel H810 chipset, ensuring compatibility with the latest Intel CPUs and providing a solid foundation for future upgrades. It delivers stable performance for both everyday tasks and more demanding applications.

Support for Intel Core Ultra processors (Series 2)
Intel H810 chipset for efficient system management
Micro ATX design ideal for compact cases

High performance with memory DDR5
With support for up to 128 GB of DDR5 memory and speeds of up to 6400 MHz, this motherboard provides a powerful foundation for multitasking, gaming, design or editing. In addition, its architecture improves energy efficiency, reducing power consumption without compromising performance.

2 slots for DDR5-SDRAM
Supported frequencies: 4800 / 6400 MHz
Integrated MSI Memory Boost technology

Modern and versatile connectivity
The MSI PRO H810M-B features next-generation connections to ensure maximum compatibility with peripherals and high-resolution monitors. In addition, its 2.5G Ethernet port improves speed and stability for demanding network connections.

USB 3.2 Gen 2 Type-A and USB 2.0
HDMI 2.1 and DisplayPort video outputs 1.4
2.5 Gigabit Ethernet LAN connectivity

Fast, expandable storage
Thanks to its 4 SATA III ports and one M.2 slot, this motherboard lets you combine SSDs and HDDs in a versatile setup, ensuring fast load times and storage ready for future demands.

Compatible with HDDs and SSDs
1 high-speed M.2 slot
4 SATA III ports

Surround sound with Realtek and Windows support 11
The Realtek ALC897 chip delivers an immersive 7.1 audio experience, ideal for both entertainment and professional work. The motherboard is also fully optimised for Windows 11, ensuring compatibility from the very first use.

7.1-channel audio with Realtek ALC897
Front and rear audio connectors
Compatible with Windows 11

Functional design built for productivity
With its understated silver tones, the MSI PRO H810M-B fits perfectly into black or white systems. It is part of MSI's PRO Series, designed for users seeking reliability, efficiency and ease of installation.

Micro ATX design: 220 mm x 243.8 mm

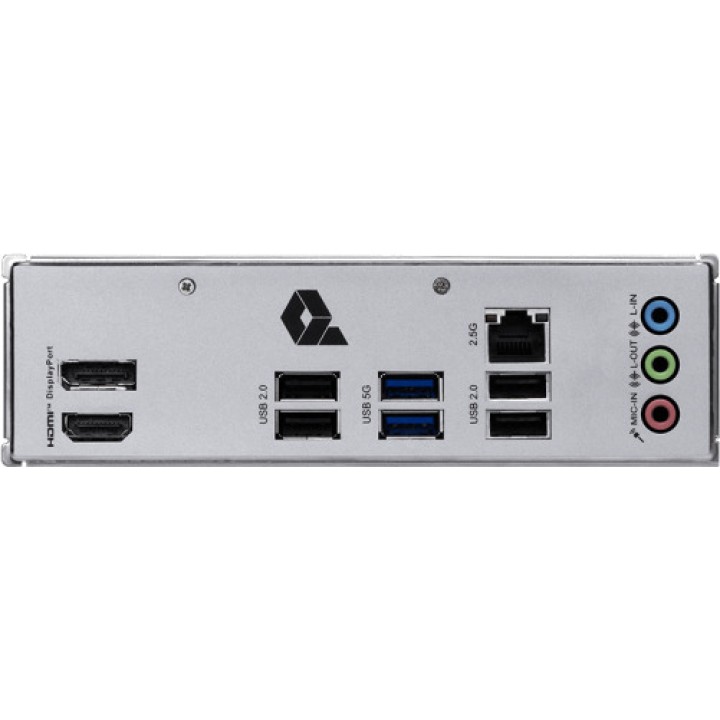

Pre-installed I/O shield for easy installation
Integrated diagnostic LEDs (debug and memory)

AI technologies for automatic optimisation
The motherboard features smart tools such as AI Cooling, AI Network Manager and AI Boost, which automatically adjust performance, cooling and network settings to improve the user experience without requiring complex configurations.

AI Engine: optimises performance and applications
AI Cooling: intelligently controls fans
AI Network: prioritises network traffic

Flexible expansion and high graphics performance
With PCIe Gen 5 slots and support for dedicated graphics cards, this motherboard is suitable for gaming, video editing or professional setups that require graphics acceleration.

1 PCIe x16 Gen 5 slot
2 PCIe slots x1
RGB LED strip connector

Other specifications

Internal connectors: USB 2.0 x4, USB 3.2 Gen 2 x3, audio, fans, TPM
Supports PWM/DC fans and cooling pumps
TVS protection against voltage spikes
SATA cables included in the package
Volume (m ³): 0.0045
