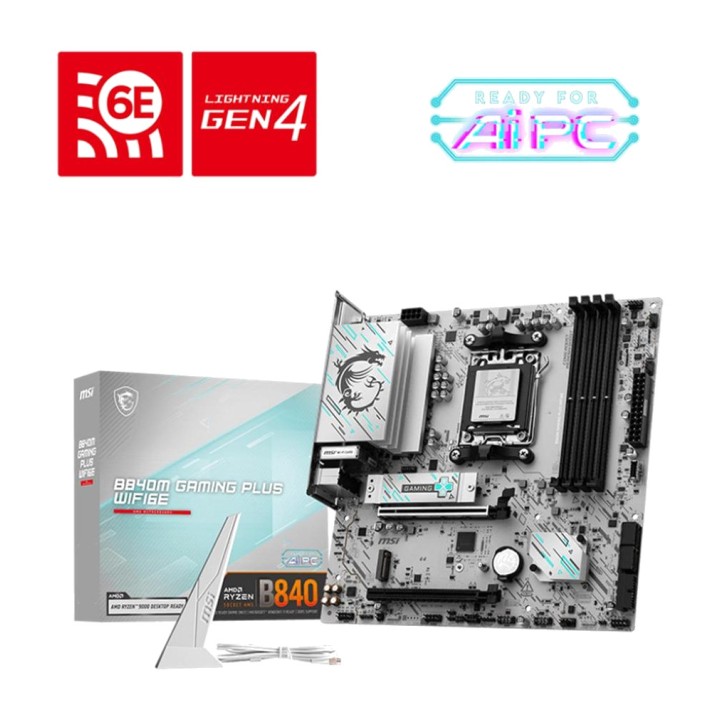

MSI Micro ATX gaming motherboard for AMD Ryzen 9000 B840M PLUS WIFI6E DDR5 AM5 DSP0000031987

-CHIPSET AND PROCESSOR
Compatible with AMD Ryzen™ 9000, 8000 and 7000 Series desktop processors. Uses the AMD B840 chipset with AM5 socket.
-MEMORY
Includes 4 DDR5 UDIMM slots with a maximum capacity of 256 GB. Compatible with DDR5 memory at speeds of 8000 - 5600 MT/s in overclocking mode and 5600 - 4800 MT/s according to the JEDEC standard. Supports Dual-Channel configurations, non-ECC and unbuffered memory, as well as overclocking and AMD EXPO™. Maximum speed depends on the module configuration and installed processor.
-INTEGRATED GRAPHICS
HDMI™ 2.1 output with a maximum resolution of 4K at 60Hz (only available with processors that include graphics).
-EXPANSION
Features 2 slots PCI-E x16:
• PCI_E1: up to PCIe 4.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8 (Ryzen 8700/8600/8400), PCIe 4.0 x4 (Ryzen 8500/8300)
• PCI_E2: PCIe 3.0 x4 (from the chipset)
-AUDIO
Realtek® ALC897 codec with 7.1-channel high-definition audio.
-STORAGE
Offers 2 M.2 PCIe 4.0 x4 slots compatible with 2280/2260 devices and 4 SATA 6Gb/s ports. Supports RAID 0, 1 and 10 configurations for SATA storage. Refer to the manual for restrictions on heatsinks for M.2 SSDs.
-USB PORTS
Includes multiple options:
• 4x rear USB 2.0 and 4x front USB 2.0
• 2x rear USB 5Gbps Type A and 2x front
• 1x front USB 5Gbps Type C
• 1x rear USB 10Gbps Type A
• 1x rear USB 10Gbps Type C
-NETWORK
Network connectivity with Realtek® 8125D 2.5G LAN for a stable, high-speed connection.
-WIRELESS CONNECTIVITY
Wi-Fi 6E preinstalled in an M.2 (Key-E) slot, supporting 2.4GHz, 5GHz and 6GHz bands (up to 2.4Gbps). Compatible with MU-MIMO and Bluetooth® 5.3. Windows 11 compatibility for Wi-Fi 6E and Bluetooth 5.3 on Windows 10 (build 21H1) or later.
-INTERNAL CONNECTORS
Includes connectors for ATX and CPU power, fans (CPU, pump/system, 3x system), front panel, front audio, COM port, TPM 2.0, EZ Conn-header, JDASH and RGB connectors (3x JARGB_V2 and 1x JRGB).
-REAR PORTS
Clear CMOS button, Flash BIOS button, HDMI™, USB ports (10Gbps Type A and C, 5Gbps, 2.0), 2.5G LAN, audio connectors and Wi-Fi/Bluetooth module.
-LED AND DIAGNOSTICS
Features 4 EZ Debug diagnostic LEDs and 1 EZ Memory LED for memory detection.
-FORM FACTOR
mATX form factor with dimensions of 243.84 mm x 243.84 mm.
-COMPATIBLE OPERATING SYSTEM
Compatible with 64-bit Windows® 11.
Volume (m ³): 0.0041
