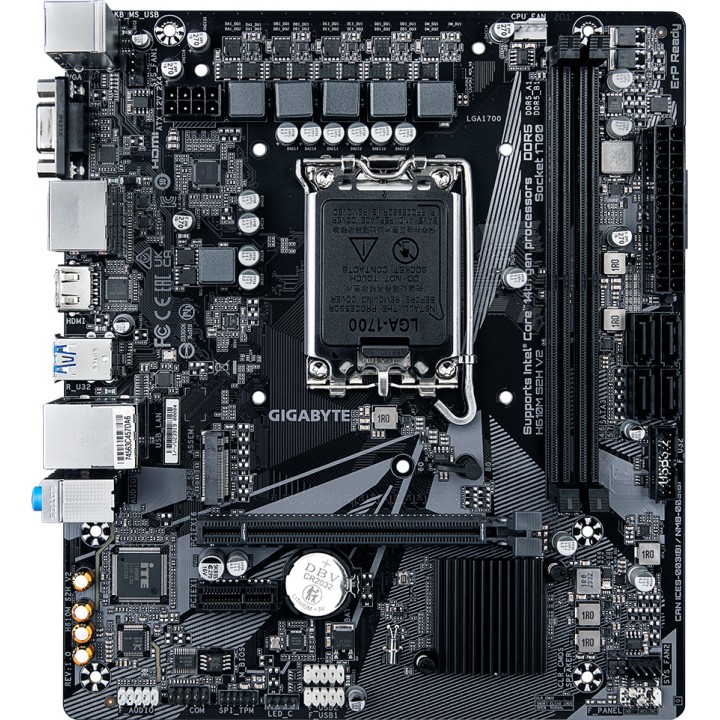

GIGABYTE Micro ATX motherboard for Intel H610M S2H V2 LGA1700 DSP0000025700

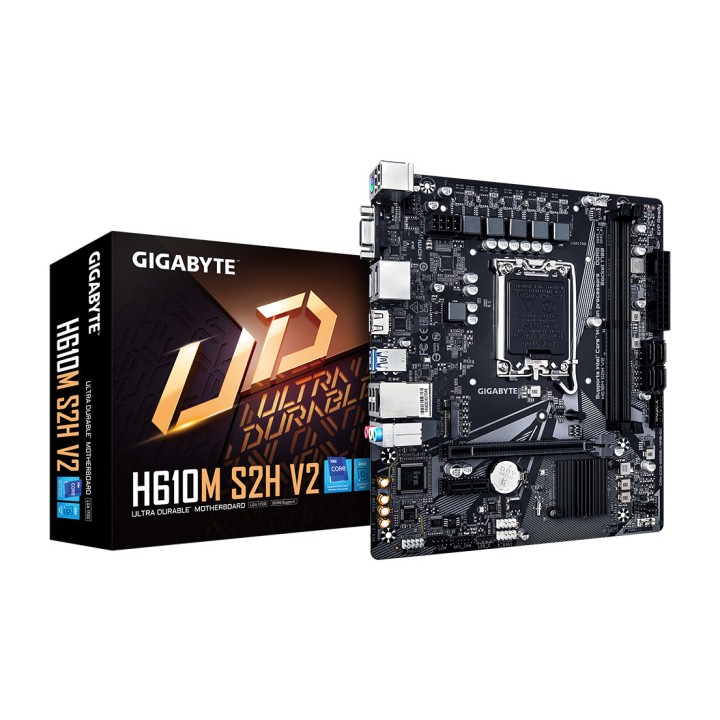

GIGABYTE H610M S2H V2 LGA 1700 DDR5 MICROATX MOTHERBOARD

Gigabyte H610M S2H V2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9,....
Compatible memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported drive types
supported: HDD & SSD. Graphics chipset: Intel, Graphics adapter: HD Graphics, Maximum resolution: 4096 x 2304 Pixels. Ethernet interface type: Gigabit Ethernet

PROCESSOR
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processors Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
Max. number of processors SMP 1
Supported processor sockets LGA 1700
Maximum internal memory supported by the processor 96 GB
MEMORY
Maximum supported memory clock speed 5600 MHz
compatible memory types DDR5-SDRAM
Number of memory slots 2
Memory slot type DIMM
Maximum internal memory 96 GB
Memory channels Dual channel
Supported memory clock speeds 5600, 5200, 4800, 4400 MHz
ECC Yes
Non-ECC Yes
Unbuffered memory Yes
Supported memory module capacities 1GB, 2GB, 4GB, 8GB, 12GB, 32GB, 48GB
Connection
Ethernet Yes
Ethernet interface type Gigabit Ethernet
Wi-Fi No
Internal I/O
USB 2.0, 2 connectors
USB 3.2 Gen 1 (3.1 Gen) connectors 1) 1
Number of connectors SATA III 4
Front panel audio connector Yes
ATX power connector (24-pin) Yes
CPU fan connector Yes
Number of chassis fan connectors 2
Front panel connector Yes
EPS power connector (8-pin) Yes
12 V power connector Yes
RGB LED strip connector Yes
TPM connector Yes
Number of connectors COM 1
Serial port header 1

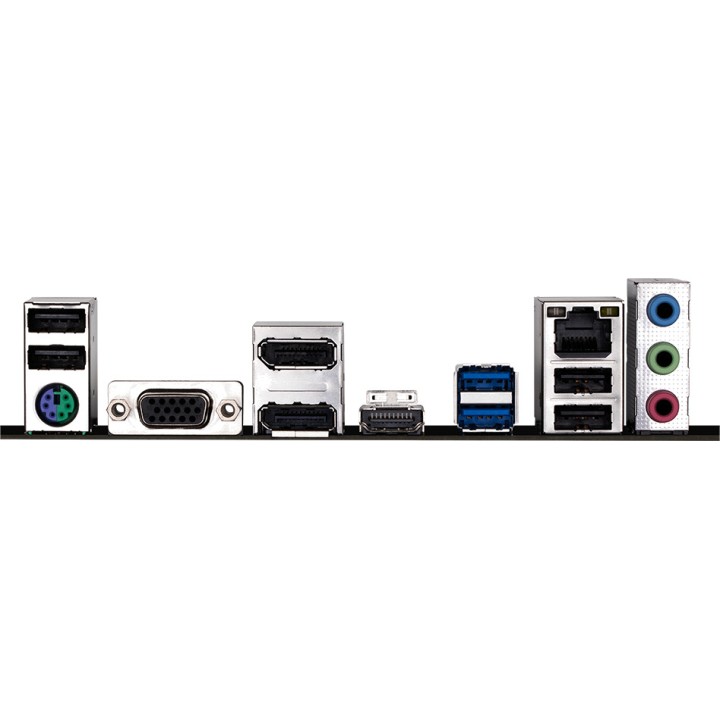

Rear panel I/O ports (input/output)
USB 2.0 4
USB 3.2 Gen 1 (3.1 Gen 1) 2
Mouse port PS/2 1
Ethernet ports LAN (RJ-45) 1
VGA (D-Sub) ports 1
Ports HDMI 1
Number of ports DVI-D 1
DisplayPort 1
Headphone connector 1
Microphone input Yes
Storage controllers
Number of compatible storage drives 1
Supported storage drive interfaces M.2, SATA
Supported storage drive types HDD & SSD
Number of HDDs supported 4
Expansion slots
PCI Express x1 slots 1
PCI Express x16 slots 1
Number of slots M.2 (M) 1
BIOS
BIOS types UEFI AMI
BIOS memory size 128 MB/s
Version ACPI 5.0
Clear CMOS jumper Yes
System management BIOS version (SMBIOS) 2.7
Clear CMOS button Yes
Desktop management interface version (DMI) 2.7
Graphics
Intel Graphics graphics card
Maximum resolution 4096 x 2304 Pixels
Intel graphics chipset
HD Graphics graphics adapter
HDCP Yes
Integrated graphics adapter Yes
Characteristic
Product colour Black
Intel chipset family
Intel chipset H610
Micro ATX form factor
Audio output channels 7.1 channels
Realtek sound chip ALC897
ATX power supply
PC component
Supported Windows operating systems Windows 10 x64, Windows 11 x64
Active cooling type
PC health monitoring: fan, LED, temperature, voltage, water cooling
WEIGHT AND DIMENSIONS
Width 230 mm
Depth 215 mm
OTHER FEATURES
Supported DIMM module capacities 8GB, 16GB
Package width 265 mm
Package depth 235 mm
Package height 52 mm
Package weight 690 g
Height 35 mm
Package contents
Batteries included Yes
Cables included: SATA
Software included: Norton Internet Security (OEM version), LAN bandwidth management software
Technical details
Warranty period 3 year(s)
Battery
Battery weight 3 g
Lithium weight per battery 0,07 g
Cells 1
Battery type Lithium-Manganese Dioxide (LiMn O2)
BATTERY TYPE CR2032
Volume (m ³): 0.0039
