GIGABYTE ATX motherboard for AMD B650 EAGLE AX AM5 DSP0000025128

* PROCESSOR
  Fabricante de procesador: AMD
Processor socket: Socket AM5
  Procesadores compatibles: AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Maximum memory supported by the processor : 192 GB

* CHIPSET
Chipset : AMD B650
  Familia del chipset: AMD

* MEMORY
compatible memory types: DDR5-SDRAM
Number of memory slots : 4 x DIMM
Memory channels: Dual channel
Supported module capacities : 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
  Velocidades soportadas: 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MHz
Maximum internal memory : 192 GB
No ECC: Yes
Non-buffered memory: Yes

* STORAGE
Supported storage interfaces: M.2, PCI Express 4.0, SATA III
RAID compatibility: Yes
Levels RAID: 0, 1, 10
Number of connectors M.2 (M): 3
Number of connectors SATA III: 4
Total number of supported drives : 5
  Tipos de unidades compatibles: HDD & SSD

* INTERNAL CONNECTORS
  3 x USB 2.0
1 x USB 3.2 Gen 1
  1 x USB 3.2 Gen 2
  1 x Conector ATX 24 pines
  1 x Conector EPS 8-pin
1 x CPU Fan Connector
1 x Connector for 12V
  1 x Cabecera de puerto serie
1 x Conector TPM
1 x Audio front panel connector
1 x Front panel connector
  1 x Conector RGB

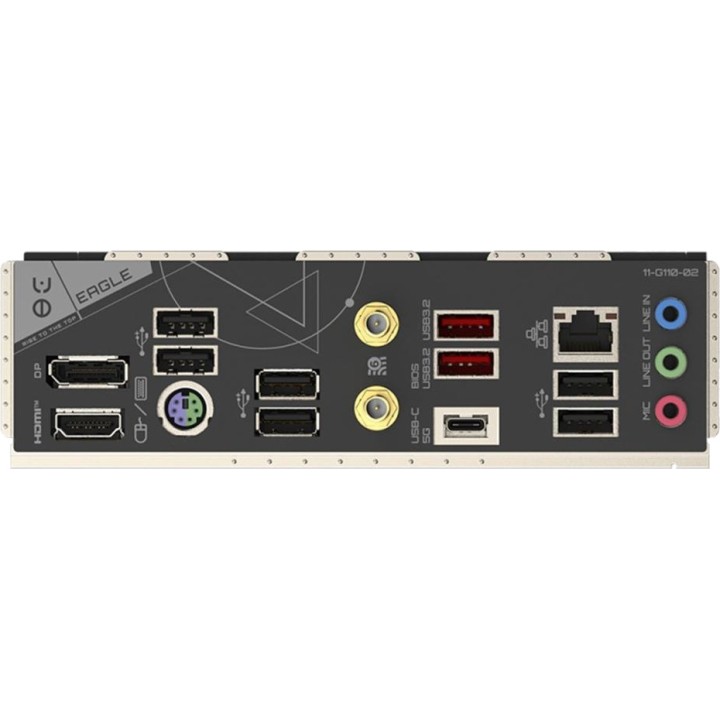

* REAR PANEL PORTS
  2 x USB 3.2 Gen 2 Tipo A
  6 x USB 2.0
1 x HDMI (version 2.1)
1 x DisplayPort (version 1.4)
1 x RJ-45 Ethernet
  2 x Conectores para antena WiFi
  1 x Jack de micrófono
  3 x Salidas de audio

* NETWORK
Ethernet: Yes
  Tipo de interfaz ethernet: Gigabit Ethernet
  Wi-Fi: Sí
  Estándar Wi-Fi: Wi-Fi 6E (802.11ax)

* AUDIO
Sound chip: Realtek ALC897
Output channels: 7.1 channels

* EXPANSION
3 x PCI Express slots x16

* BIOS
BIOS Type: UEFI AMI
Size of BIOS: 256 MB
ACPI version: 5.0
SMBIOS version: 2.7
DMI version: 2.7
CMOS Clear Jumper: Yes
  Botón de limpieza CMOS: Sí

* GRAPHICS
HDCP: Yes
  Máxima resolución: 4096 x 2160 píxeles
Parallel process support: Not compatible

* OPERATING SYSTEM
Compatibility: Windows 10 x64, Windows 11 x64

* FORMAT AND DIMENSIONS
  Factor de forma: ATX
  Dimensiones: 305 x 244 x 35 mm
  Color: Negro
Cooling type: Active

* MONITORING
  Parámetros monitorizados: Ventilador, Temperatura, Tensión, Water cooling

* PACKAGE CONTENTS
Cables included: SATA
Batteries included: Yes
  Software incluido: Norton Internet Security (versión OEM), software de gestión de ancho de banda LAN

* LOGISTICS DATA
  Cantidad por caja de envío: 1 pieza
  País de origen: China
  Altura del paquete: 80 mm
  Ancho del paquete: 335 mm
  Profundidad del paquete: 270 mm
  Peso del paquete: 1,74 kg

* BATTERY
Number of cells : 1
  Peso: 3 g
Lithium weight: 0,07 g
Type: CR2032
Technology: Lithium-Manganese Dioxide (LiMn O2)
Volume (m ³): 0.0076
