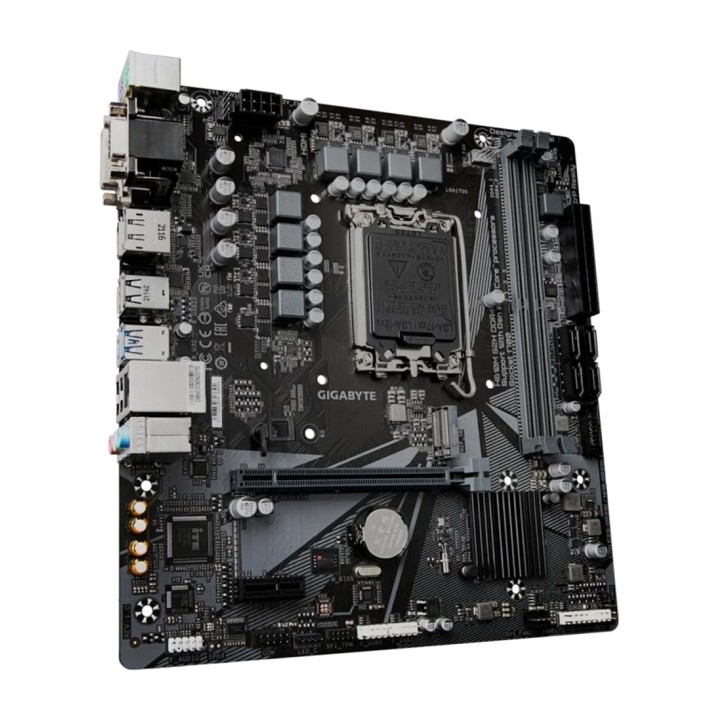

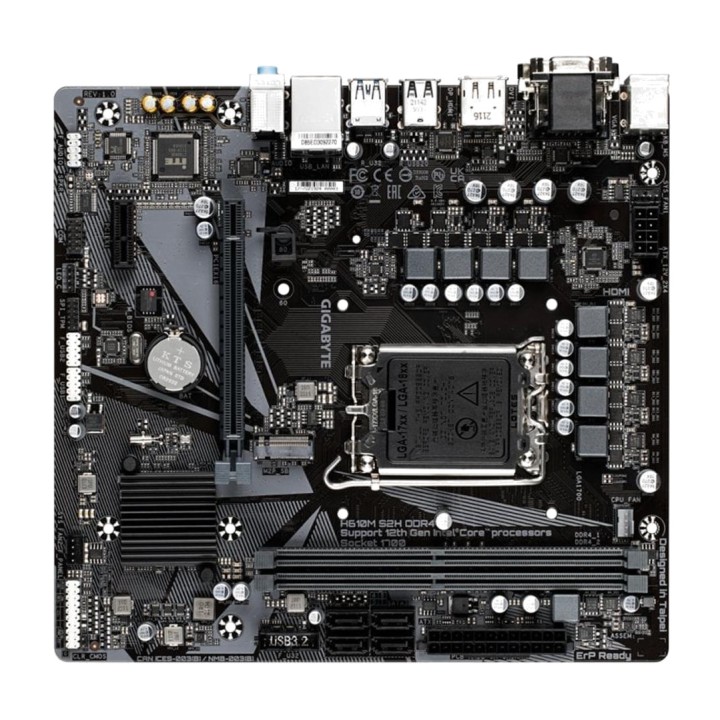

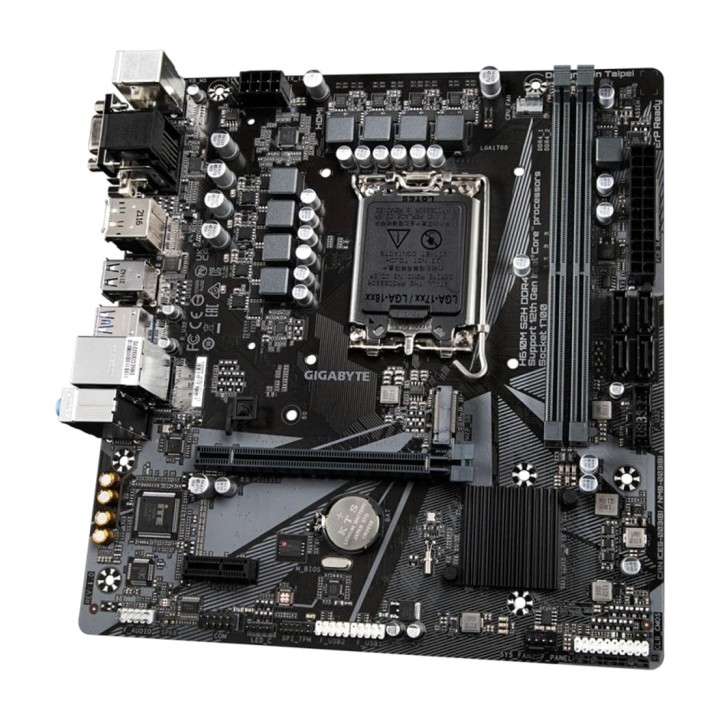

GIGABYTE Micro ATX motherboard for Intel LGA 1700 with DDR4 H610M S2H V3 DSP0000023796
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosBrand: GIGABYTE
MODEL : H610M S2H V3 DDR4
Chipset: Intel H610 Express
Socket: LGA1700
Compatible processors: Intel Core / Pentium Gold / Celeron (14th, 13th and 12th generation)
Supported operating system: 64-bit Windows 10/11
Form factor: Micro ATX (22.3 x 19.3 cm)
-MEMORY
Memory type: DDR4-SDRAM
Supported speeds: 3200/3000/2933/2666/2400/2133 MT/s
Slots : 2 x DIMM
Memory channels: Dual channel
Maximum supported memory : 64 GB
ECC compatibility: Non-ECC
XMP compatibility: Yes
-PROCESSOR
Socket: LGA1700
Compatibility: Intel Core / Pentium Gold / Celeron (14th, 13th and 12th generation)
L3 cache: depending on CPU
-GRAPHICS
Integrated graphics: Intel HD (depending on CPU)
Ports:
1 x D-Sub (1920x1200\@60 Hz)
1 x HDMI (4096x2160\@60 Hz , HDMI 2.1, HDCP 2.3)
2 x DisplayPort (4096x2304\@60 Hz, DisplayPort 1.2, HDCP 2.3)
Support for up to 3 simultaneous displays
-AUDIO
CODEC: Realtek HD
Channels: 2/4/5.1/7.1 (configurable via software)
Rear connectors : 3
-NETWORK
LAN chip: Realtek GbE (10/100/1000 Mbps)
Bandwidth management: Yes
-STORAGE
M.2:
1 x M.2 (Socket 3, Key M, 2280/2260, PCIe 3.0 x4/x2)
SATA:
4 x SATA 6 Gb/s
-EXPANSION
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
-USB
Rear panel:
2 x USB 3.2 Gen 1
4 x USB 2.0
Internal:
1 x USB 3.2 Gen 1 header (2 ports)
2 x USB 2.0 headers (4 ports)
-INTERNAL CONNECTORS
1 x 24-pin ATX connector
1 x 8-pin ATX 12V connector
1 x CPU fan header
2 x system fan headers
1 x header M.2
4 x SATA 6 Gb/s
1 x RGB LED strip header
1 x front panel header
1 x front audio header
1 x speaker header
1 x TPM module header
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header
-MONITORING AND CONTROL
Detection: Voltage, temperature, fan speed, water cooling flow rate
Fan failure warning
Fan speed control (depending on fan compatibility)
-BIOS
BIOS: AMI UEFI
Size: 128 Mbit
Support: PnP 1.0a, DMI 2.7, Wf M 2.0, SMBIOS 2.7, ACPI 5.0
-SPECIAL FUNCTIONS
Smart Fan 6
Anti-sulfur resistors
High-quality audio with noise protection
APP Center (includes @BIOS, EasyTune, Smart Backup, System Information Viewer)
Q-Flash
-SOFTWARE
Included: Norton Internet Security OEM, LAN bandwidth management software

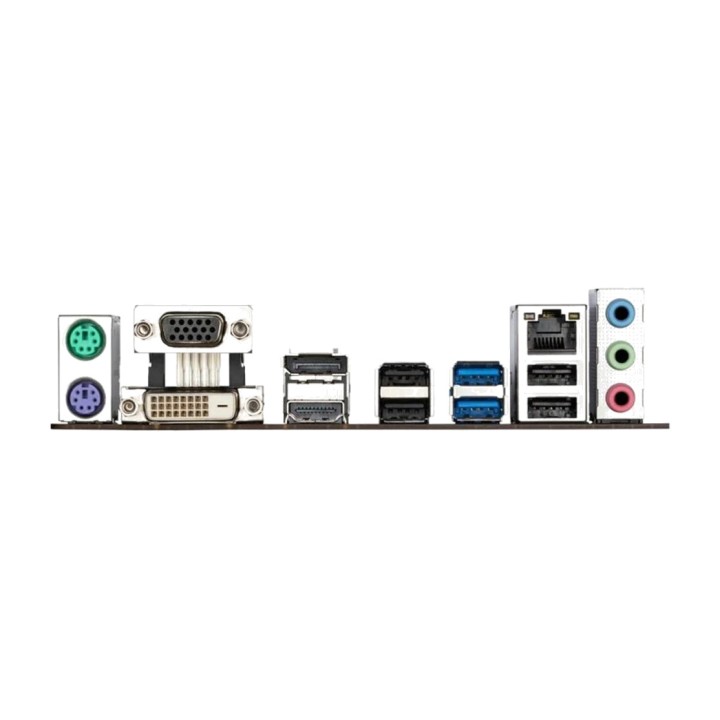

-REAR I/O PANEL
1 x PS/2 keyboard/mouse
1 x D-Sub
2 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x RJ-45
3 x audio connectors
Volume (m ³): 0.0032
- Brand
- GIGABYTE
- Reference
- DSP0000023796
- EAN-13
- 4719331859732
- Weight
- 1 kg
