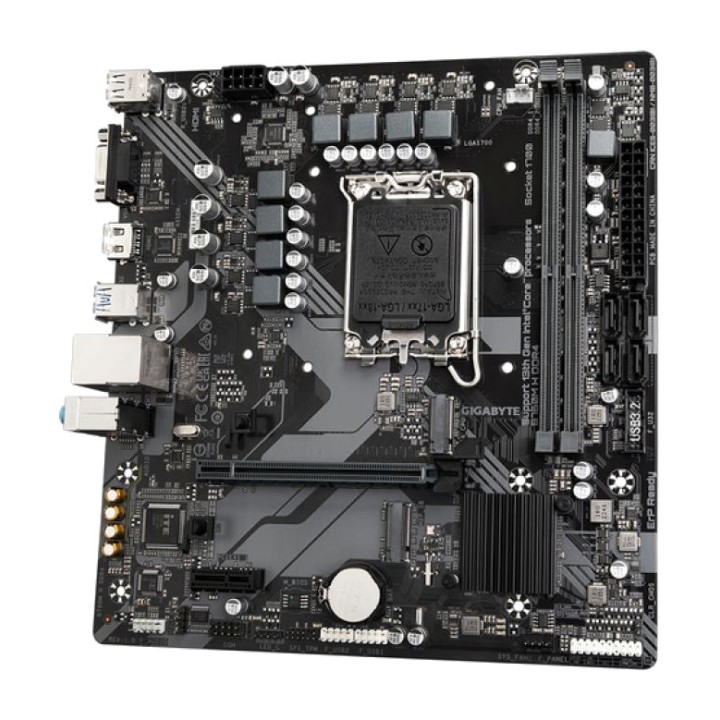

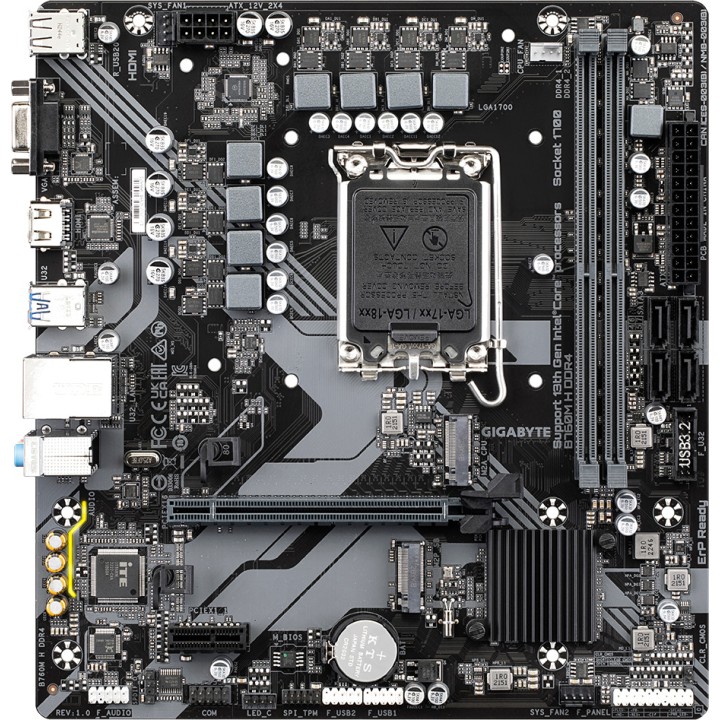

GIGABYTE Micro ATX motherboard for Intel B760M H DDR4 LGA1700 DSP0000021845

-FORM FACTOR
Micro ATX
-PROCESSOR
Socket : LGA 1700
Compatible with Intel Celeron and Pentium Gold
Maximum number of supported processors : 1
Maximum internal memory supported by the processor : 64 GB
-MEMORY
2 x slots DIMM DDR4
Maximum capacity : 64 GB
Supported speeds: 2133, 2400, 2666, 2933, 3000, 3200 MHz
Channels: Dual channel
Compatibility: Non-ECC, unbuffered
-STORAGE
2 x slots M.2
4 x SATA III connectors
Compatibility with RAID: 0, 1, 5, 10
Maximum number of drives : 6
-EXPANSION SLOTS
1 x PCIe x16 Gen 4.x
-GRAPHICS
1 x HDMI 1.4
1 x VGA (D-Sub)
Maximum resolution: 4096 x 2160 pixels
DirectX version: 12.1
-AUDIO
7.1-channel high-definition audio
Audio codec: Realtek ALC897
-NETWORK
1 x Ethernet port RJ-45
Interface type: Gigabit Ethernet
Wi-Fi: No
-INTERNAL CONNECTIONS
1 x 24-pin ATX power connector
1 x 8-pin EPS power connector
1 x CPU fan connector
1 x front panel audio connector
1 x front panel connector
2 x connectors USB 2.0
1 x USB 3.2 Gen 1 connector
1 x RGB LED strip connector
1 x serial port header
1 x TPM connector
4 x SATA III connectors
-REAR I/O PORTS
2 x USB 2.0
4 x USB 3.2 Gen 1 Type-A
1 x HDMI
1 x DisplayPort
1 x VGA
1 x RJ-45
1 x microphone jack
1 x headphone jack
Headphone/microphone combo support: Yes
-ADDITIONAL FEATURES
Power supply: ATX
Compatible operating system: Windows 10, Windows 11
Product colour: Brown
System monitoring: Fan, temperature, voltage, liquid cooling
-BIOS
Type: UEFI AMI
Size : 128 MB
ACPI version: 5.0
SMBIOS version: 2.7
DMI version: 2.7
Clear CMOS Jumper: Yes
-WEIGHT AND DIMENSIONS
Width: 230 mm
Depth: 215 mm
Height: 35mm
Package weight: 825 g
-PACKAGE CONTENTS
Batteries included: Yes
Battery type: CR2032 (LiMn O2)
Battery weight: 3 g
Quantity per box: 1 piece
Volume (m ³): 0.0035
