GIGABYTE Micro ATX motherboard for AMD A620M DS3H AM5 DSP0000019927
Price:
€116.18
Tax included
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestosGIGABYTE A620M DS3H AM5 MICRO ATX MOTHERBOARD 4 X DDR5
AMD AM5 Socket AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Micro ATX PC AMD A620 7.1 channels
DDR5-SDRAM 4 DIMM Non-ECC Maximum internal memory : 192 GB
HDD & SSD M.2, SATA III RAID compatibility Number of compatible storage drives : 4
BIOS types: UEFI AMI 256 MB/s ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet
Gigabyte A620M DS3H (rev. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor: AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. memory types
compatible: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, SATA III, Storage drive types
supported: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 Pixels. USB connector: USB Type-A, USB Type-C
WEIGHT AND DIMENSIONS
WIDTH
240 mm
DEPTH
240 mm
MEMORY
Memory channels
Double channel
Non-ECC
YES
Maximum internal memory
192 GB
Unbuffered memory
YES
Number of memory slots
4
Memory slot type
DIMM
Maximum supported memory clock speed
6400 MHz
Supported memory clock speeds
6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
compatible memory types
DDR5-SDRAM
PROCESSOR
Processor manufacturer
AMD
Compatible processor
AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor socket
Socket AM5
Supported processor sockets
Socket AM5

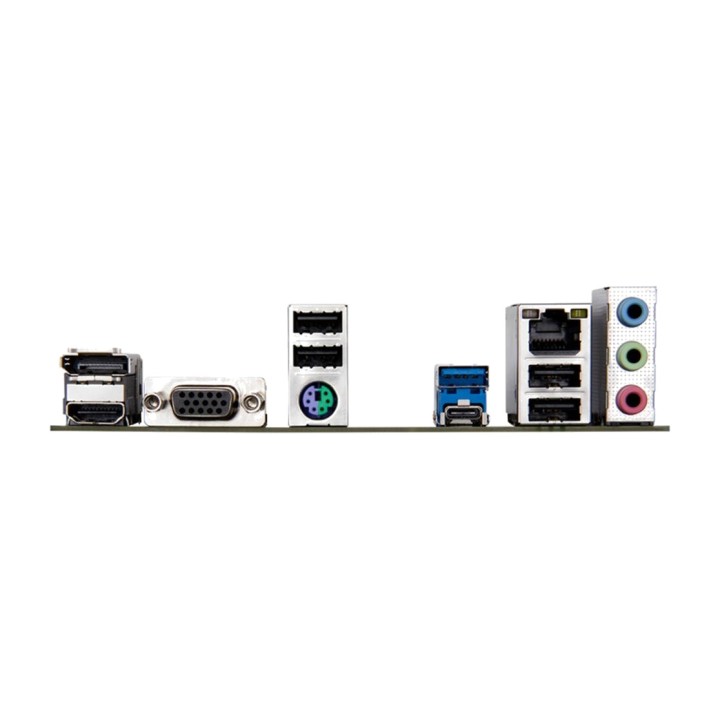

Rear panel I/O ports (input/output)
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1)
1
Number of USB Type-C 3.2 Gen 1 (3.1 Gen 1)
1
Mouse port PS/2
1
Number of ports USB 2.0
4
Ethernet LAN (RJ-45) port quantity
1
Number of VGA (D-Sub) ports
1
Number of DisplayPorts
1
USB connector
USB Type-A, USB Type-C
DisplayPort version
1.4
Number of HDMI ports
1
HDMI version
2.1
Microphone, input jack
YES
Headphone outputs
3
Internal I/O
USB 3.2 Gen 1 (3.1 Gen) connectors 1)
1
Power connector for 12 V
YES
USB 2.0, connectors
1
ATX power connector (24-pin)
YES
EPS power connector (8-pin)
YES
CPU fan connector
YES
Front panel audio connector
YES
Front panel connector
YES
TPM connector
YES
RGB LED strip connector
YES
Number of SATA III connectors
4
Connection
Ethernet
YES
Ethernet interface type
Gigabit Ethernet
WiFi
NOT
Expansion slots
Number of slots M.2 (M)
1
PCI Express x1 slots
1
PCI Express x16 slots
1
Package contents
Cables included
SATA
Included software
Norton Internet Security (OEM version) LAN bandwidth management software
BIOS
ACPI version
5.0
BIOS types
UEFI AMI
BIOS, memory size
256 MB/s
System Management BIOS version (SMBIOS)
2.7
Clear CMOS jumper
YES
Desktop Management Interface version (DMI)
2.7
Graphics
HDCP
YES
Maximum resolution
4096 x 2160 pixels
Support for parallel processing
Not supported
Characteristic
Audio output channels
7.1 channels
Chipset
AMD A620
Component for
PC
Form factor
Micro ATX
Chipset family
AMD
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Supported Windows operating system
Windows 10 x64, Windows 11 x64
Storage controllers
RAID support
YES
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of compatible storage drives
4
Supported storage drive types
HDD & SSD
Volume (m ³): 0.0040
AMD AM5 Socket AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Micro ATX PC AMD A620 7.1 channels
DDR5-SDRAM 4 DIMM Non-ECC Maximum internal memory : 192 GB
HDD & SSD M.2, SATA III RAID compatibility Number of compatible storage drives : 4
BIOS types: UEFI AMI 256 MB/s ACPI version: 5.0 Clear CMOS jumper
Gigabit Ethernet
Gigabyte A620M DS3H (rev. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor: AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. memory types
compatible: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slot type: DIMM. Supported storage drive interfaces: M.2, SATA III, Storage drive types
supported: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 Pixels. USB connector: USB Type-A, USB Type-C
WEIGHT AND DIMENSIONS
WIDTH
240 mm
DEPTH
240 mm
MEMORY
Memory channels
Double channel
Non-ECC
YES
Maximum internal memory
192 GB
Unbuffered memory
YES
Number of memory slots
4
Memory slot type
DIMM
Maximum supported memory clock speed
6400 MHz
Supported memory clock speeds
6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
compatible memory types
DDR5-SDRAM
PROCESSOR
Processor manufacturer
AMD
Compatible processor
AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Rear panel I/O ports (input/output)
Number of USB 3.2 Gen 1 (3.1 Gen Type-A ports 1)
1
Number of USB Type-C 3.2 Gen 1 (3.1 Gen 1)
1
Mouse port PS/2
1
Number of ports USB 2.0
4
Ethernet LAN (RJ-45) port quantity
1
Number of VGA (D-Sub) ports
1
Number of DisplayPorts
1
USB connector
USB Type-A, USB Type-C
DisplayPort version
1.4
Number of HDMI ports
1
HDMI version
2.1
Microphone, input jack
YES
Headphone outputs
3
Internal I/O
USB 3.2 Gen 1 (3.1 Gen) connectors 1)
1
Power connector for 12 V
YES
USB 2.0, connectors
1
ATX power connector (24-pin)
YES
EPS power connector (8-pin)
YES
CPU fan connector
YES
Front panel audio connector
YES
Front panel connector
YES
TPM connector
YES
RGB LED strip connector
YES
Number of SATA III connectors
4
Connection
Ethernet
YES
Ethernet interface type
Gigabit Ethernet
WiFi
NOT
Expansion slots
Number of slots M.2 (M)
1
PCI Express x1 slots
1
PCI Express x16 slots
1
Package contents
Cables included
SATA
Included software
Norton Internet Security (OEM version) LAN bandwidth management software
BIOS
ACPI version
5.0
BIOS types
UEFI AMI
BIOS, memory size
256 MB/s
System Management BIOS version (SMBIOS)
2.7
Clear CMOS jumper
YES
Desktop Management Interface version (DMI)
2.7
Graphics
HDCP
YES
Maximum resolution
4096 x 2160 pixels
Support for parallel processing
Not supported
Characteristic
Audio output channels
7.1 channels
Chipset
AMD A620
Component for
PC
Form factor
Micro ATX
Chipset family
AMD
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Supported Windows operating system
Windows 10 x64, Windows 11 x64
Storage controllers
RAID support
YES
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of compatible storage drives
4
Supported storage drive types
HDD & SSD
Volume (m ³): 0.0040
- Brand
- GIGABYTE
- Reference
- DSP0000019927
- EAN-13
- 4719331855567
- Weight
- 0,95 kg
