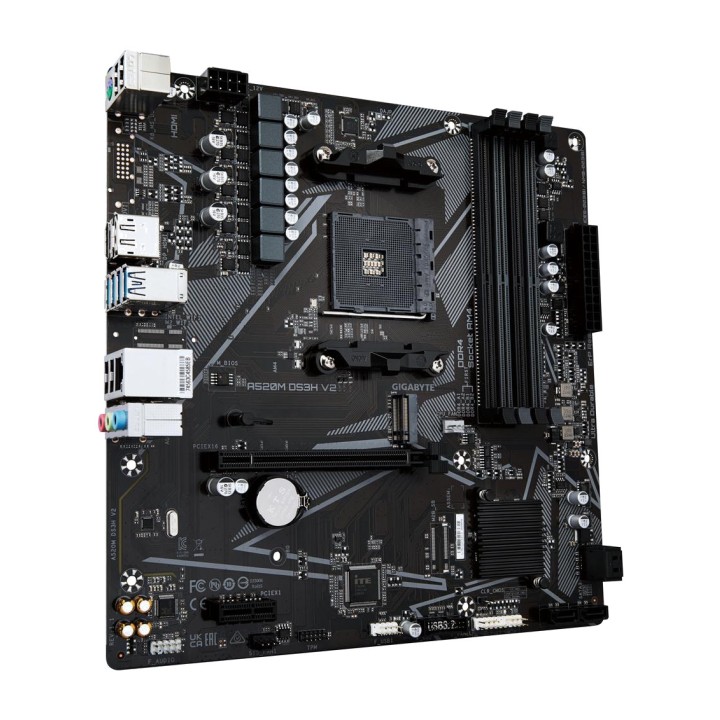

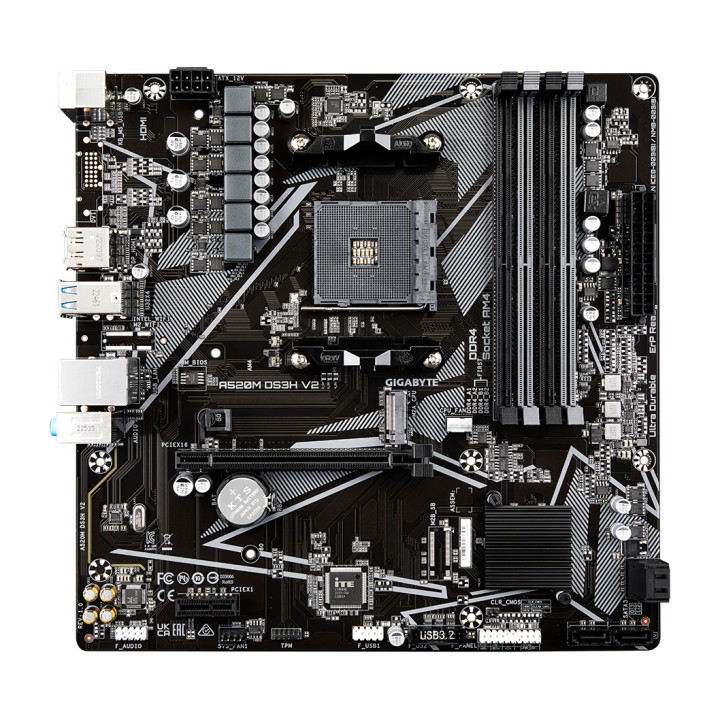

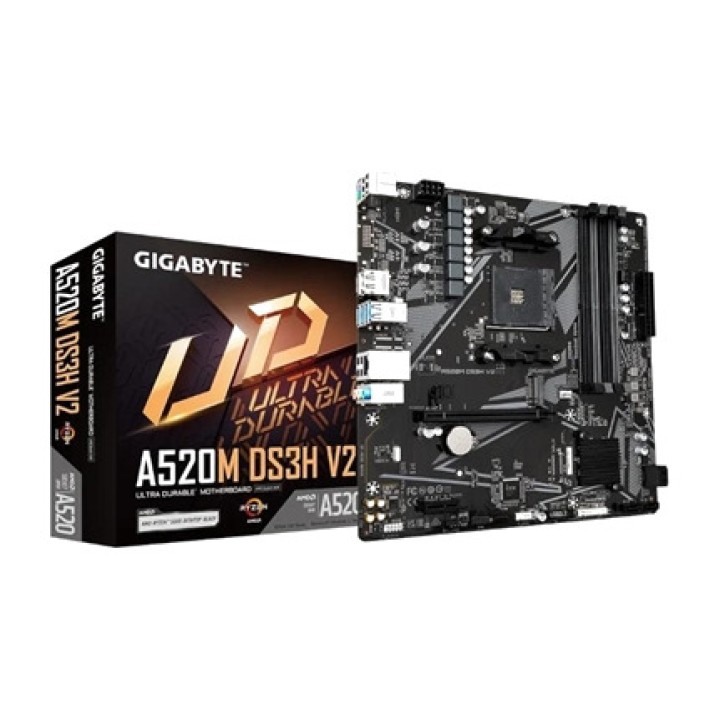

GIGABYTE Micro ATX motherboard for AMD A520M DS3H V2 AM4 DSP0000019191 images
Secure payment
Card, bank transfer and financing. SSL on every page.
Worldwide shipping
Stock available for shipping at competitive rates. Delivery times vary by region.
Personalized support
Call us at +34 948 088 505 or email us. We answer questions and help with your order.
GIGABYTE Micro ATX motherboard for AMD A520M DS3H V2 AM4 DSP0000019191
DeliveryUpdating delivery estimate…Order within the next — to receive it approximately Updating delivery estimate…
Updating delivery estimate…
Cuándo es más probable que llegue
Calculado con 0 entregas recientes
Fechas estimadas para España peninsular; se ajustarán con tu código postal y forma de entrega.
The date corresponds to the item with the longest delivery time
IVA intracomunitario
La exención intracomunitaria puede aplicarse a una entrega a otro Estado miembro si el NIF-IVA es válido y el destino cumple los requisitos. La comprobación por sí sola no determina el tratamiento fiscal.
Cómo se comprueba el IVA¿Eres profesional del sector?
Puedes solicitar una cuenta profesional e indicar los datos de tu actividad. La solicitud queda pendiente de revisión; puedes consultar su estado en tu cuenta.
Más información sobre cuentas profesionalesCanarias, Ceuta y Melilla sin IVA español
El tratamiento depende del destino de entrega y de la coherencia de la dirección. Pueden corresponder IGIC, IPSI, aranceles u otros cargos locales.
Más información sobre destinos e impuestos-GENERAL
Product type: Motherboard
Form factor: Micro ATX (24.4 cm x 24.4 cm)
Chipset : AMD A520
Socket : AMD AM4
Compatible operating systems: Windows 10 64-bit, Windows 11 64-bit
-PROCESSOR
Compatible processors:
AMD Ryzen Series 5000
AMD Ryzen Series 5000 G
AMD Ryzen Series 4000 G
AMD Ryzen Series 3000
-MEMORY
Sockets : 4 x DIMM DDR4
Maximum capacity: 128 GB (up to 32 GB per DIMM)
Architecture: Dual channel
XMP support: Yes
Supported modules: DIMM 1Rx8/2Rx8 (unbuffered ECC in non-ECC mode), DIMM 1Rx8/2Rx8/1Rx16 non-ECC
Supported speeds:
4733(OC), 4600(OC), 4400(OC), 4266(OC), 4133(OC), 4000(OC), 3866(OC), 3733(OC), 3600(OC), 3466(OC), 3400(OC), 3200, 2933, 2667, 2400, 2133 MHz
-GRAPHICS
Video outputs:
1 x DisplayPort (5120x2880 @ 60 Hz, DisplayPort 1.4, HDCP 2.3, HDR)
1 x HDMI (4096x2160 @ 60 Hz , HDMI 2.1, HDCP 2.3, HDR)
Maximum shared memory : 16 GB
-EXPANSION SLOTS
1 x PCI Express 3.0 x16
1 x PCI Express 3.0 x1
-STORAGE
M.2:
1 x M.2 (Socket 3, type 2280, SATA and PCIe 3.0 x4/x2)
SATA:
4 x SATA 6Gb/s
Supported RAID modes : RAID 0, RAID 1, RAID 10
-INTERNAL CONNECTIONS
1 x 24-pin ATX power connector
1 x 8-pin ATX 12V connector
1 x CPU fan header
1 x system fan header
1 x connector M.2
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front audio header
1 x USB 3.2 Gen 1 header
1 x header USB 2.0/1.1
1 x TPM header (2x6 pins)
1 x CMOS jumper

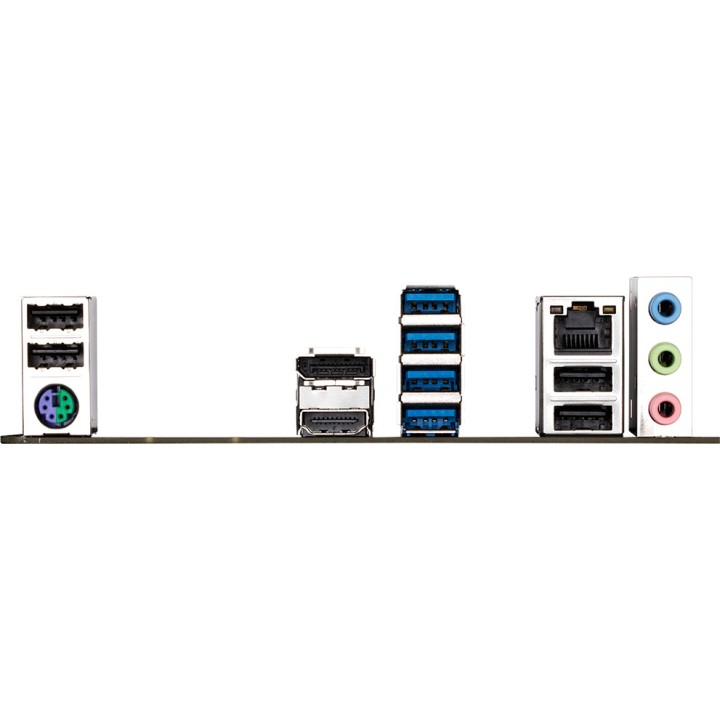

-EXTERNAL CONNECTIONS
1 x PS/2 keyboard/mouse
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 1
2 x USB 2.0/1.1
1 x RJ-45
3 x audio connectors
-NETWORK
Chip: Realtek GbE LAN (1 Gbps/100 Mbps)
-AUDIO
Codec: Realtek
Channels: 2/4/5.1/7.1
High-definition audio
-USB
Rear panel:
4 x USB 3.2 Gen 1
2 x USB 2.0/1.1
Internal:
2 x USB 3.2 Gen 1 (via header)
2 x USB 2.0/1.1 (via header)
-SOFTWARE
Support for advanced features such as TPM, Q-Flash and XMP memory profiles
-NOTES
Video resolution and refresh rate support depends on the installed processor
Requires a chassis with an HD audio module for output 7.1
Refer to the CPU and memory compatibility lists on the official GIGABYTE website
Volume (m ³): 0.0042
- Brand
- GIGABYTE
- Reference
- DSP0000019191
- EAN-13
- 4719331854690
- Weight
- 0,83 kg
