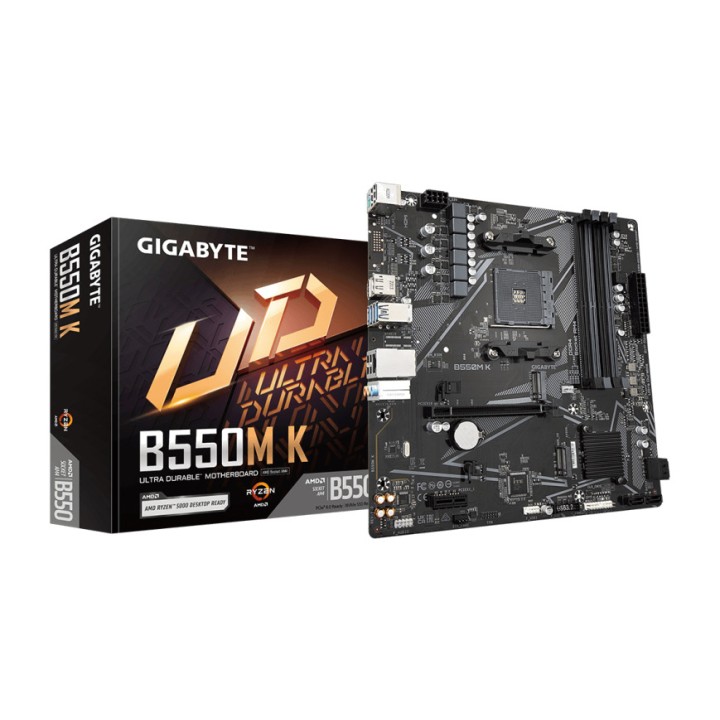

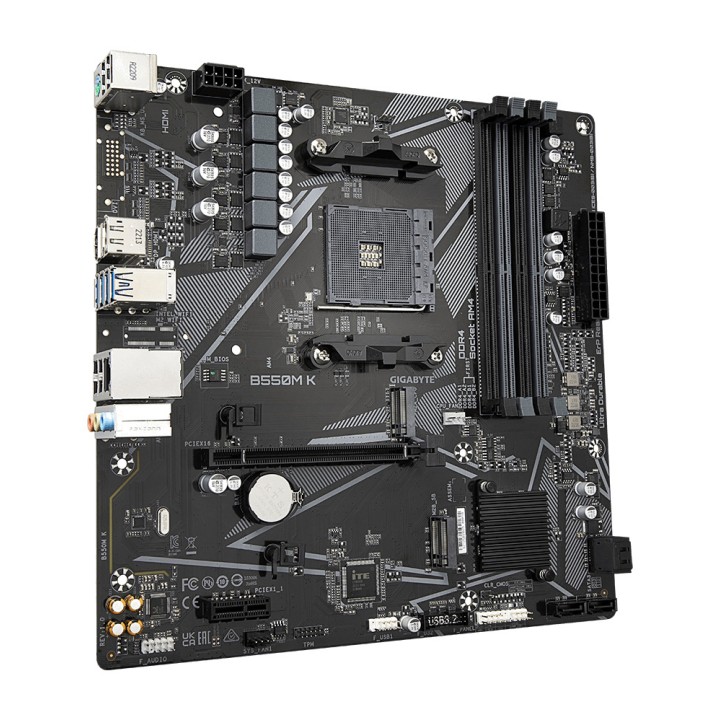

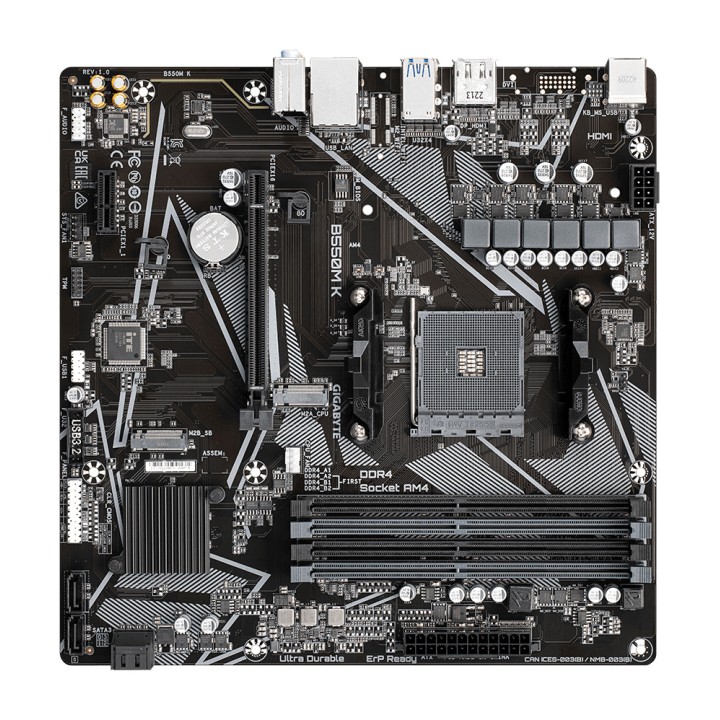

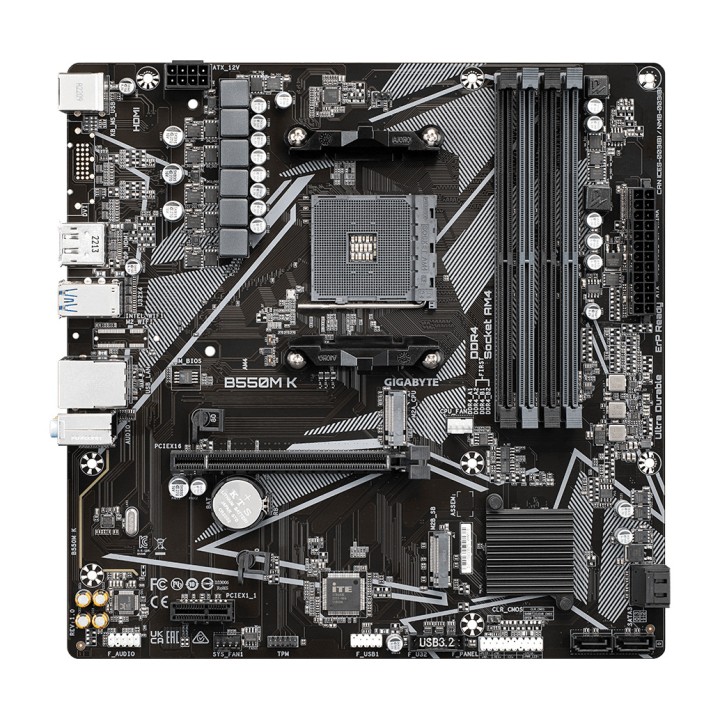

GIGABYTE Micro ATX motherboard for AMD B550M K AM4 DSP0000015338

-BRAND
Gigabyte

-Model
B550M K (rev. 1.0)

-FORM FACTOR
Micro ATX

-CHIPSET
AMD B550

-SOCKET
AM4

-PROCESSOR FAMILY
AMD Ryzen 5

-SUPPORTED PROCESSORS
1

-MEMORY
4 x DIMM slots
Type: DDR4-SDRAM
Maximum total capacity : 128 GB
Capacity per module : 32 GB
Supported speeds: 2133, 2400, 2667, 2933, 3200, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4733 MHz
Channel support: Dual
ECC and non-ECC
Unbuffered

-GRAPHICS
Integrated graphics adapter: Yes
Graphics chip: AMD
DisplayPort: 1 (version 1.4)
HDMI: 1 (version 2.1)
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes

-AUDIO
System: 7.1 channels
Audio chip: Not specified

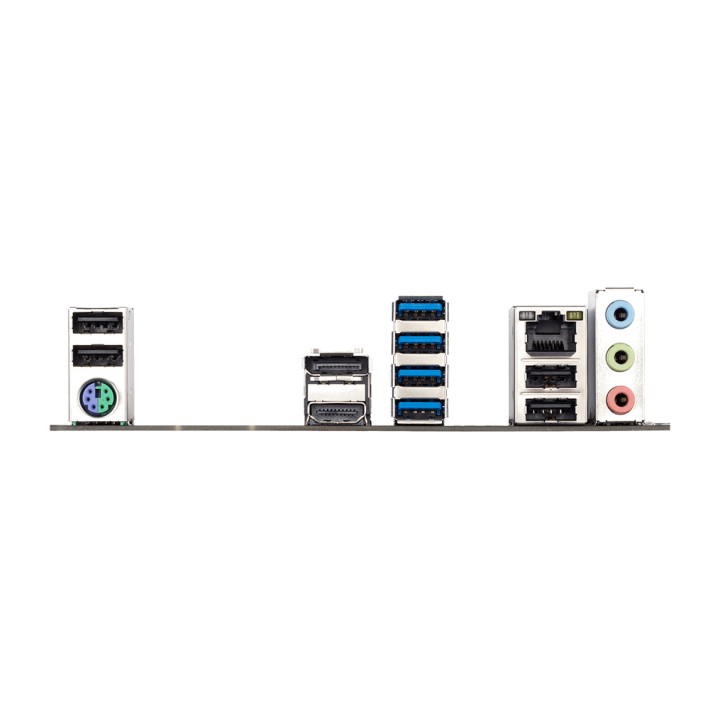

-REAR I/O PORTS
1 x PS/2
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 1 (Type A)
4 x USB 2.0
1 x RJ-45
1 x microphone input
1 x line output
1 x headphone output

-EXPANSION SLOTS
1 x PCIe slot x16
1 x PCIe slot x1

-STORAGE
2 x M.2 connectors (PCIe 3.0 / 4.0)
4 x SATA III ports (6 Gb/s)
COMPATIBILITY RAID: 0, 1, 10
Supported interfaces: M.2, PCIe 3.0, PCIe 4.0, SATA
Supported drive types: SSD

-NETWORK
Controller: Realtek (exact model not specified)
Ethernet: Yes
Type: Gigabit Ethernet
Wi-Fi: No

-INTERNAL CONNECTIONS
1 x 24-pin ATX connector
1 x 8-pin EPS connector
1 x CPU fan connector
2 x system fan connectors
1 x TPM connector
1 x front audio connector
1 x COM header
1 x LPT header
1 x front panel connector
1 x USB 3.2 Gen 1 connector (1 header - 2 ports)
1 x USB 2.0 connector (1 header - 2 ports)
4 x SATA III connectors

-BIOS
Type: UEFI AMI
Size : 128 MB
ACPI version: 5.0
SMBIOS version: 2.7
DMI version: 2.7
Clear CMOS Jumper: Yes

-FEATURES
Power supply: ATX
Cooling type: active
Health monitoring: Temperature, Voltage, Fan

-INCLUDED SOFTWARE
Norton Internet Security (OEM version)
LAN bandwidth management software

-SUPPORTED OPERATING SYSTEM
Windows 10 x64
Windows 11 x64

-DIMENSIONS
Width: 244 mm
Depth: 244 mm
Volume (m ³): 0.0044
