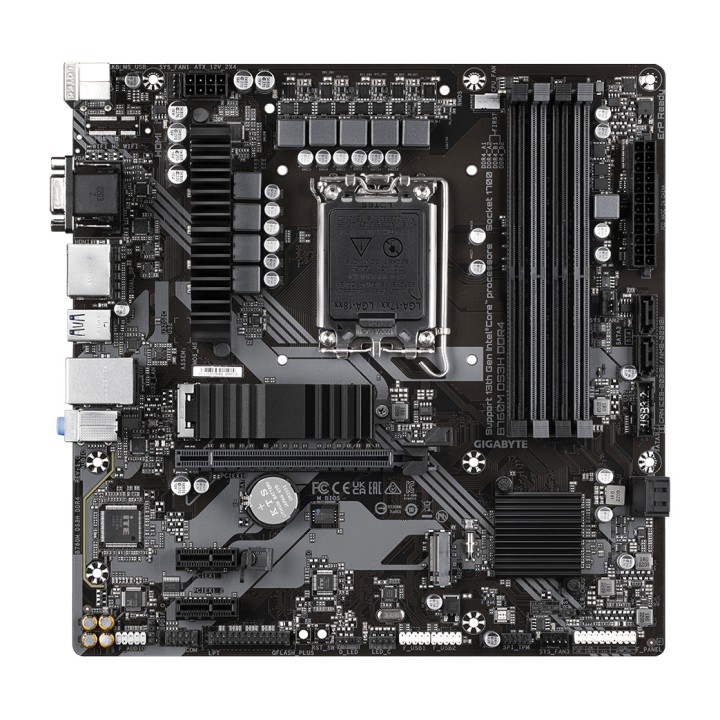

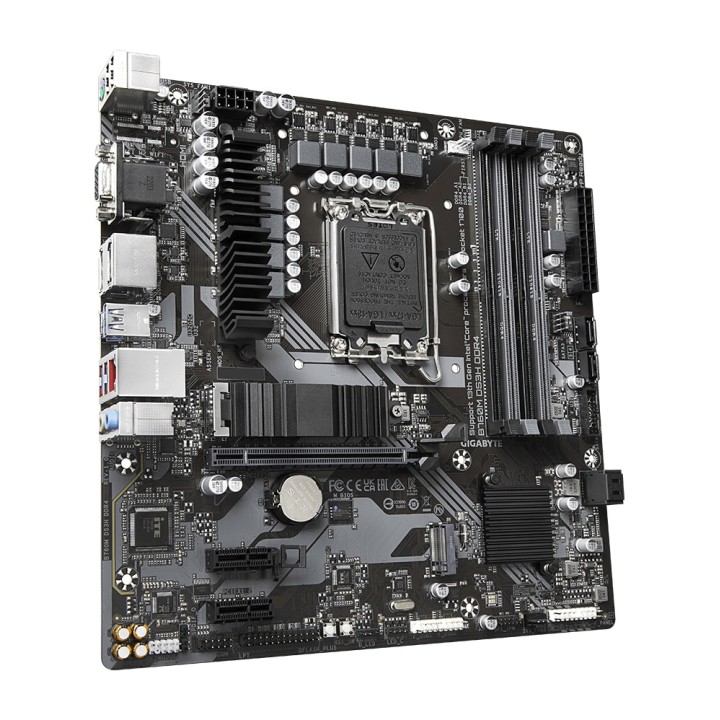

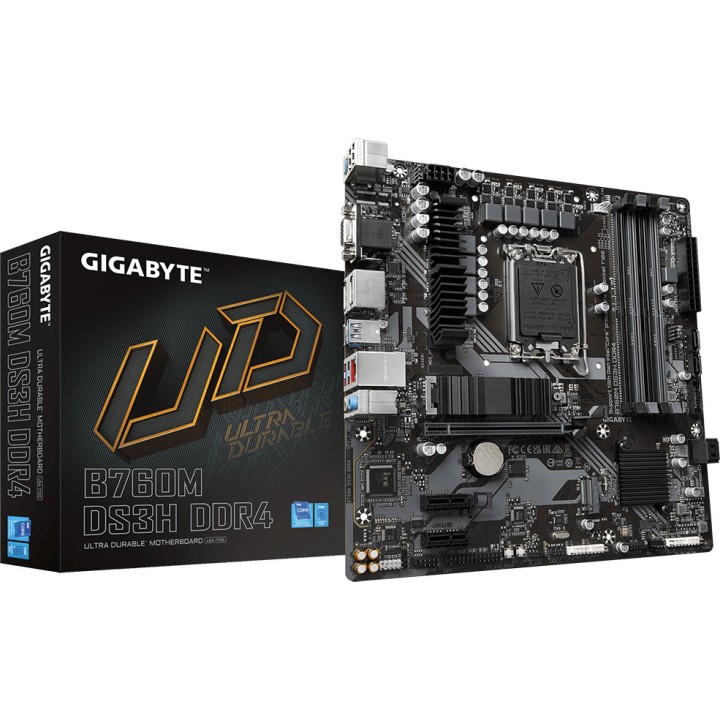

GIGABYTE Micro ATX motherboard for Intel LGA1700 DSP0000013788

-BRAND
Gigabyte

-Model
B760M DS3H DDR4

-FORM FACTOR
Micro ATX (244 mm x 244 mm)

-CHIPSET
Intel B760

-SOCKET
LGA 1700

-PROCESSOR FAMILY
Intel

-SUPPORTED PROCESSORS
12th- and 13th-generation Intel Core i3 / i5 / i7 / i9, Intel Pentium Gold, Intel Celeron

-MEMORY
4 x slots DIMM DDR4
Maximum capacity : 128 GB
Supported speeds: up to 4933 MHz
Memory channels: Dual
ECC / Non-ECC: Supported
Unbuffered memory: Yes

-GRAPHICS
1 x HDMI (max. 4096 x 2304 pixels)
2 x DisplayPort
1 x VGA (D-Sub)
Supports up to 4 displays
HDCP: Yes

-STORAGE
1 x slot M.2
4 x SATA III connectors
SUPPORT RAID: 0, 1, 5, 10
Supported interfaces : M.2, SATA III
Compatible with HDD and SSD drives

-NETWORK
1 x 2.5 Gb Ethernet E (RJ-45)

-EXPANSION SLOTS
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x slot M.2

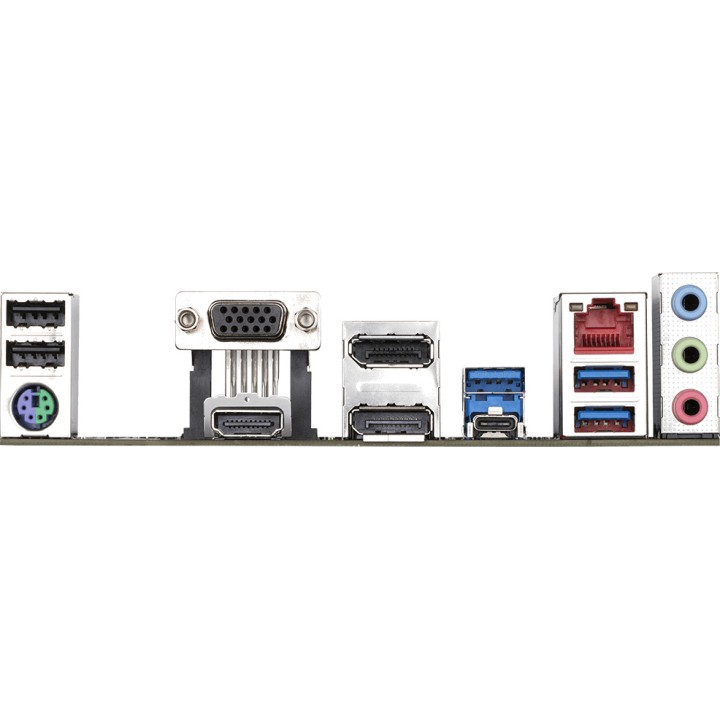

-REAR I/O PORTS
1 x USB 3.2 Gen 2 Type-C
3 x USB 3.2 Gen 1 Type A
2 x USB 2.0
1 x PS/2
1 x HDMI
2 x DisplayPort
1 x VGA
1 x RJ-45
1 x line input
1 x headphone output
1 x S/PDIF connector

-INTERNAL CONNECTIONS
2 x connectors USB 2.0
1 x USB 3.2 Gen 1 connector
1 x ATX power connector (24-pin)
1 x EPS power connector (8-pin)
1 x CPU fan connector
3 x chassis fan connectors
1 x TPM connector
1 x serial port header
1 x parallel connector
1 x front panel connector
1 x front panel audio connector
1 x RGB LED strip connector
4 x SATA III connectors

-AUDIO
Realtek codec
7.1 audio channels

-BIOS
Type: UEFI AMI
Size : 128 MB
ACPI version: 5.0
SMBIOS version: 2.7
DMI version: 2.7
Clear CMOS Jumper: Yes

-FEATURES
Power supply: ATX
Monitoring: temperature, fan, voltage, liquid cooling

-SUPPORTED OPERATING SYSTEM
Windows 10, Windows 11

-INCLUDED SOFTWARE
Norton Internet Security
Volume (m ³): 0.0041
