MSI ATX motherboard MAG B760-TOMAHAWK-WIFI LGA1700 DSP0000012748

Motherboard Features MSI MAG B760 TOMAHAWK WIFI
The **MSI MAG B760 TOMAHAWK WIFI** is a high-performance ATX motherboard, ideal for those looking to build a PC with 12th- or 13th-generation Intel processors using the **LGA 1700** socket, with support for up to 128 GB of **DDR5 memory** and next-generation connectivity. It is designed for hardware enthusiasts who value **stability, speed and expandability**, for both gaming and professional work.
Advanced compatibility with high-speed DDR5
Thanks to its **four DDR5 DIMM slots**, this motherboard lets you install up to **128 GB** of RAM at frequencies of up to **7000 MHz (OC)**. This provides a platform ready to **get the most out of the new Intel processors**, offering greater bandwidth and energy efficiency.

4 dual-channel DDR5 DIMM slots
Supports up to 128 GB of memory
Maximum supported frequency: 7000 MHz (OC)

Modern, ultra-fast connectivity
The MAG B760 TOMAHAWK comes equipped with **Wi-Fi 6E and Bluetooth 5.3**, ensuring a stable, fast and future-ready wireless connection. It also features a **2.5G Ethernet** LAN port, ideal for online gaming or demanding network tasks.

Integrated Wi-Fi 6E (802.11ax)
Bluetooth 5.3
2.5 Gb LAN port E (RJ-45)

Extensive expansion options
This ATX motherboard offers great versatility for installing graphics cards and storage drives. It features **3 M.2 slots** and RAID support for SATA drives, as well as **PCIe x16** and **x1** slots for expansion cards.

2 PCIe x16 slots and 1 PCIe x1
3 M.2 slots with NVMe storage support
Support for RAID 0, 1, 5 and 10

Immersive sound and performance-oriented design
With a robust design and understated black colour scheme, this motherboard fits perfectly into any build. High-definition audio with a **Realtek ALC897** chip delivers an immersive **7.1-channel** surround sound experience.

7.1-channel high-definition audio
Realtek sound chip ALC897
ATX form factor, ideal for full-size towers

External ports and connections

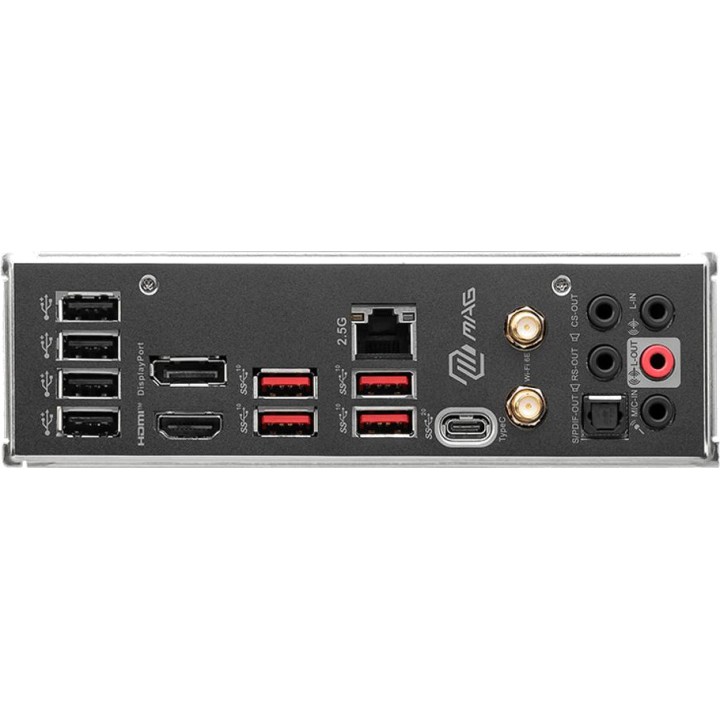

Its rear panel includes a comprehensive selection of modern ports, including **USB 3.2 Gen 2**, **HDMI 2.1**, **DisplayPort 1.4** and a digital S/PDIF audio output. Ideal for systems requiring advanced connectivity right out of the box.

1 x HDMI 2.1 and 1 x DisplayPort 1.4
4 x USB 3.2 Gen 2 Type-A + 1 x USB 3.2 Gen 2x2 Type-C
4 x USB 2.0 + internal connectors for expansion

Guaranteed compatibility and easy integration
It is fully compatible with **Windows 10 and Windows 11** and, thanks to its AMI UEFI BIOS, provides stable system management with support for ACPI 6.4 and SMBIOS 3.5. All this is designed to make system configuration and updating easier.

Intel LGA 1700 socket compatible with Celeron, Pentium Gold and Intel Core processors
Intel chipset B760
Compatible with Windows 10 and Windows 11

Other specifications

Form factor: ATX (243.8 mm x 304.8 mm)
connectors SATA III: 4
Connectors for fans, audio, front panel, TPM and RGB LED strips
BIOS: AMI UEFI 256 MB
No integrated graphics adapter
Volume (m ³): 0.0066
