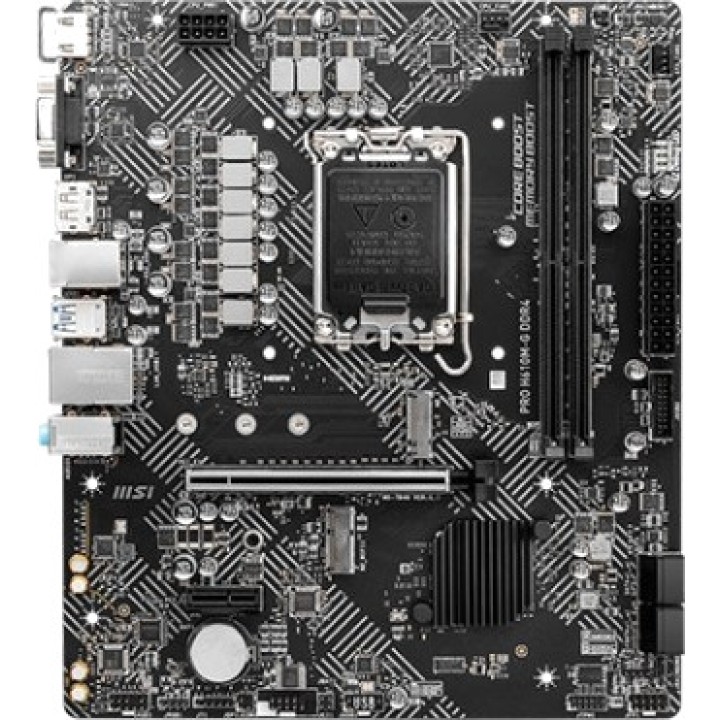

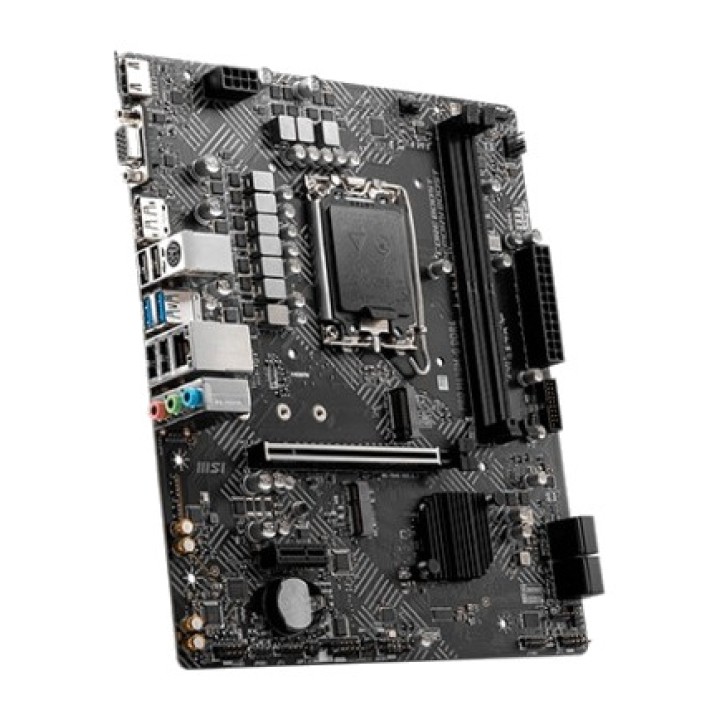

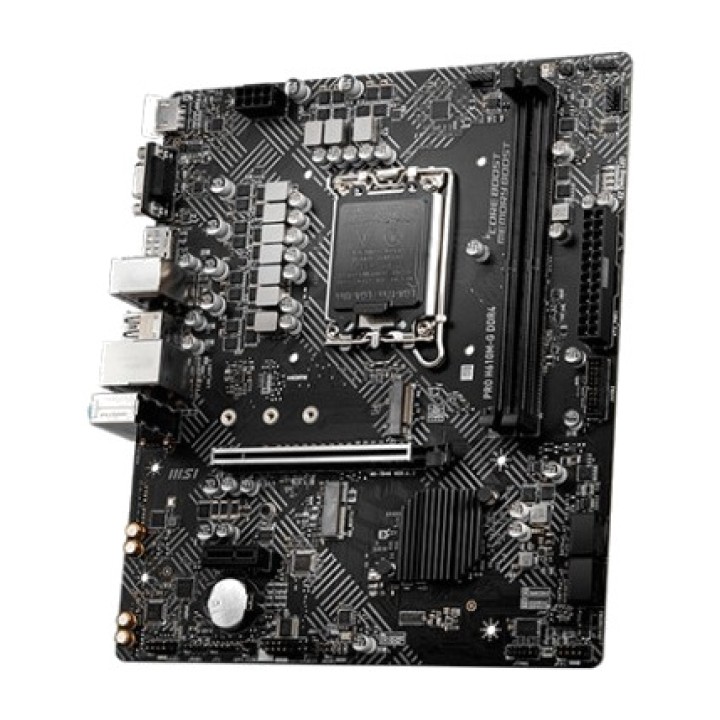

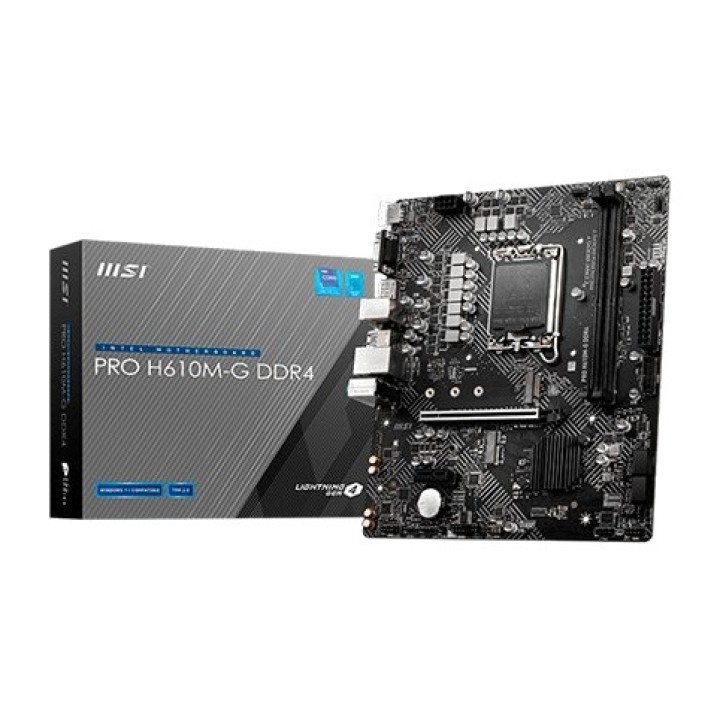

MSI Micro ATX motherboard PRO H610M-G DDR4 LGA1700 DSP0000007572

-FACTORY FORM
Micro ATX – 236 mm x 202 mm

-CPU
Socket: Intel LGA1700
Compatibility: Intel Celeron, Intel Core i3/i5/i7 12th Gen, Intel Pentium Gold
Maximum number of processors : 1

-CHIPSET
Intel H610

-MEMORY
Number of slots : 2 x DIMM
Type: DDR4-SDRAM
Maximum capacity : 64 GB
ECC compatibility: Non-ECC
Architecture: Dual Channel
Unbuffered memory: Yes
Supported speeds: 2133, 2666, 2933, 3200 MHz

-INTEGRATED GRAPHICS
Video outputs:
1 x HDMI
1 x VGA (D-Sub)
1 x DisplayPort
Maximum resolution: 4096 x 2160 pixels

-AUDIO
Audio system: Realtek ALC892 / ALC897
Output channels: 7.1 channels

-STORAGE
Supported interfaces: M.2 PCIe, SATA III
Number of connectors SATA III: 4
Number of connectors M.2: 1
RAID support: Yes
Supported RAID levels: Not specified

-EXPANSION SLOTS
Total PCIe slots : 2
1 x PCI Express x16 (Gen 4.0/3.0)
1 x PCI Express x1 (Gen 3.0)

-NETWORK
Network type: Ethernet
LAN controller: Not specified
Interface: Gigabit Ethernet (10/100/1000 Mb/s)
Number of ports RJ-45: 1

-USB PORTS
Rear panel:
4 x USB 2.0
2 x USB 3.2

Internal connectors:
2 x USB 2.0
2 x USB 3.2

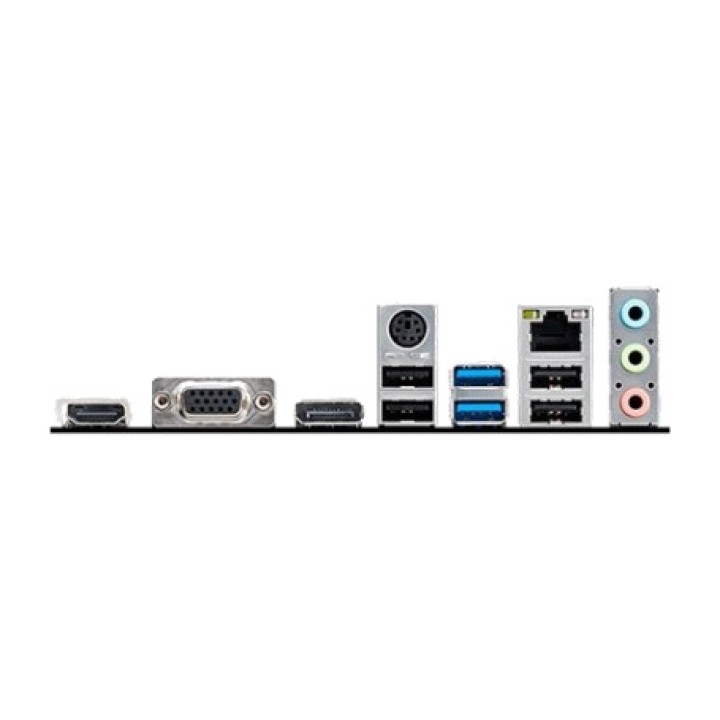

-REAR I/O CONNECTIVITY
1 x DisplayPort
1 x HDMI
1 x VGA (D-Sub)
1 x RJ-45
2 x USB 3.2
4 x USB 2.0
1 x microphone (input)
2 x audio jacks
1 x PS/2 keyboard/mouse

-INTERNAL I/O CONNECTIVITY
1 x CPU fan connector
2 x chassis fan connectors
1 x 24-pin ATX connector
1 x 8-pin EPS connector
1 x front panel audio connector
1 x chassis intrusion connector
1 x Clear CMOS jumper
1 x TPM connector
3 x connectors for RGB/LED strips

-KEY FEATURES
Audio Boost with high-fidelity capacitors
Core Boost for precise power delivery to the CPU
PCIe 4.0 compatible with high-performance graphics cards
EZ Debug LED
Frozr AI Cooling
MSI Center and Click BIOS 5
Resizable BAR
Double ESD protection
MSI Steel Armor on PCIe slots
MSI LAN Manager for network prioritization

-BIOS
Type: UEFI AMI
Size : 128 MB
Clear CMOS: Yes

-WEIGHT AND DIMENSIONS
Width: 236 mm
Depth: 202 mm

-PACKAGE CONTENTS
Included cables: SATA
Quick installation guide: Yes

-WARRANTY
3 YEARS
Volume (m ³): 0.0037
