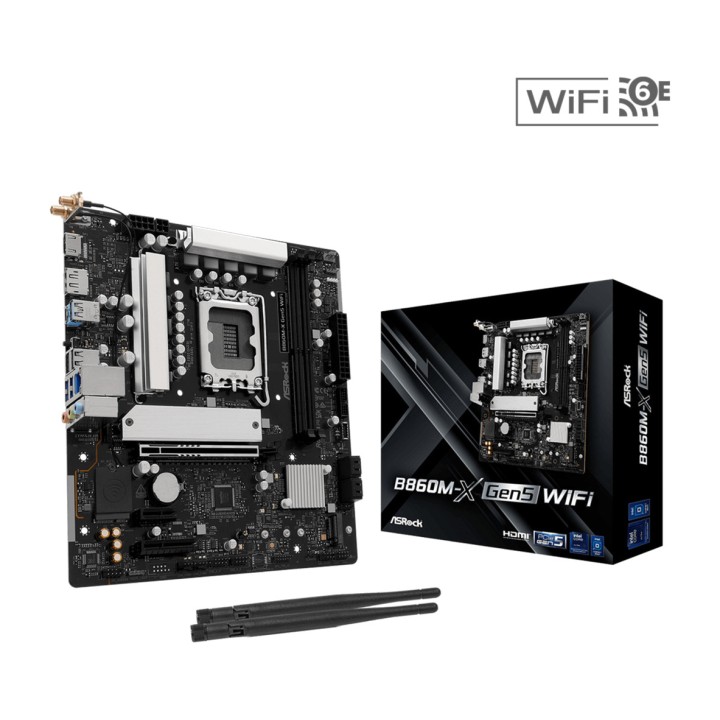

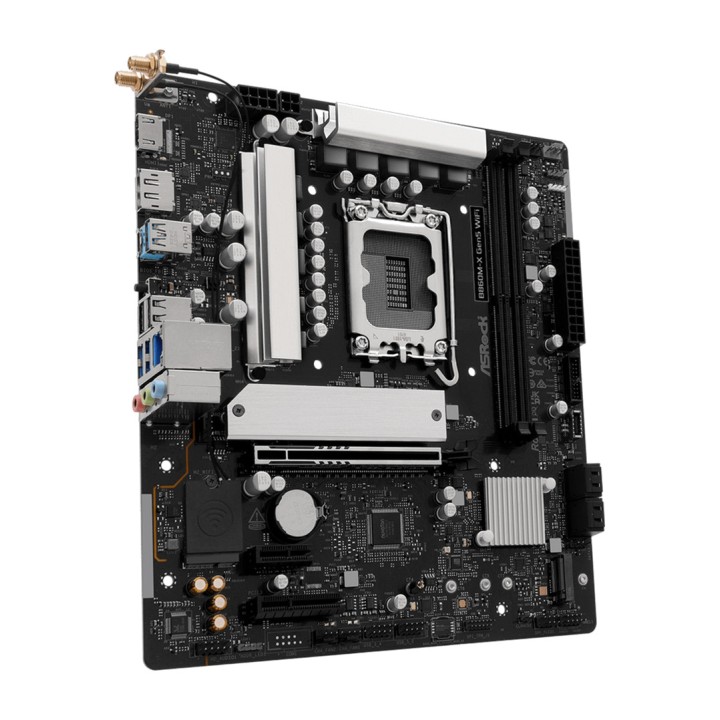

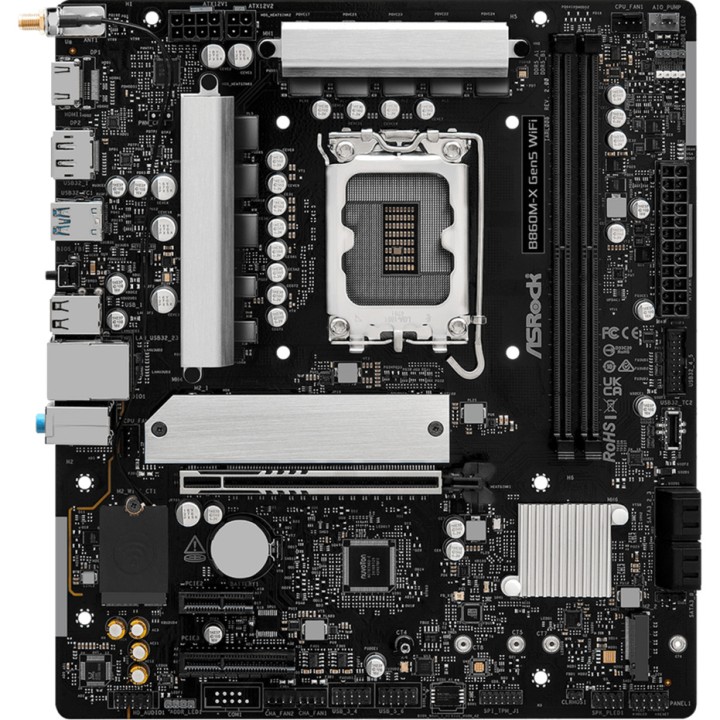

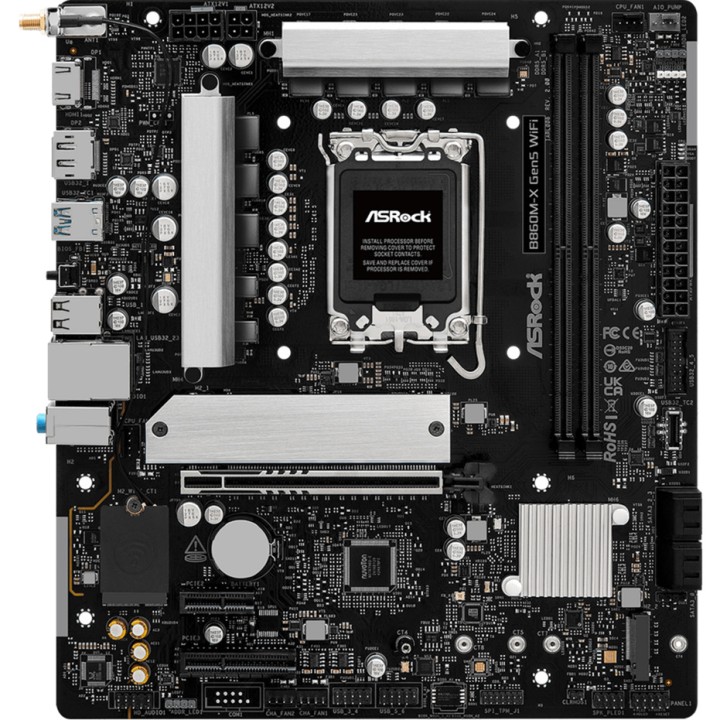

ASROCK Micro ATX motherboard B860M-X GEN5-WIFI LGA1851 100192675

The ASRock B860M-X GEN5 WiFi is based on the Intel® B860 chipset and supports Intel® processors for socket 1851. It has four DDR5 slots for up to 256 GB of RAM. Other features of the ASRock B860M-X GEN5 WiFi include one PCIe 4.0 x16 slot, one PCIe 4.0 x4 slot and one PCIe 4.0 x1 slot. In addition, the ASRock B860M-X GEN5 WiFi features 8-channel audio, a 2.5 Gigabit LAN interface, WiFi 6E, Bluetooth 5.3, four SATA3 ports, two M.2 ports and a variety of USB ports.
Type: Base Plate
Socket: 1851
CPU max number x.: 1
Processor - Supported models: Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake)
PCIe x 16 slots: 1x (of which: 1x PCIe) x 16)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form factor: µATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 8 + 4-pin)
Memory - maximum : 128 GB
Connections (external) - USB 3.0: 3
Internal Connections - SATA: 4
Optional connections - USB 3.0: 2
SATA Controller: Intel ® B860
ready-to-use RAID level : 0, 1, 10, 5
USB Controller: Intel ® B860
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek ALC897 7.1 Surround Sound
LAN: Dragon RTL8125BG 2.5 GbE Ethernet
Dimensions: Width: 218 mm x Height: 244 mm
Warnings and safety instructions: WARNINGS: / Attention: The product contains a button cell battery or a button battery.
