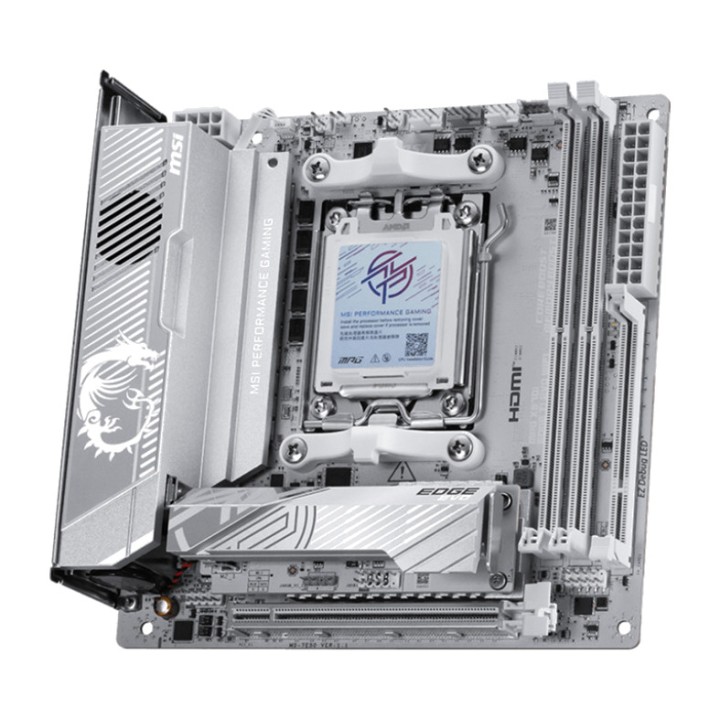

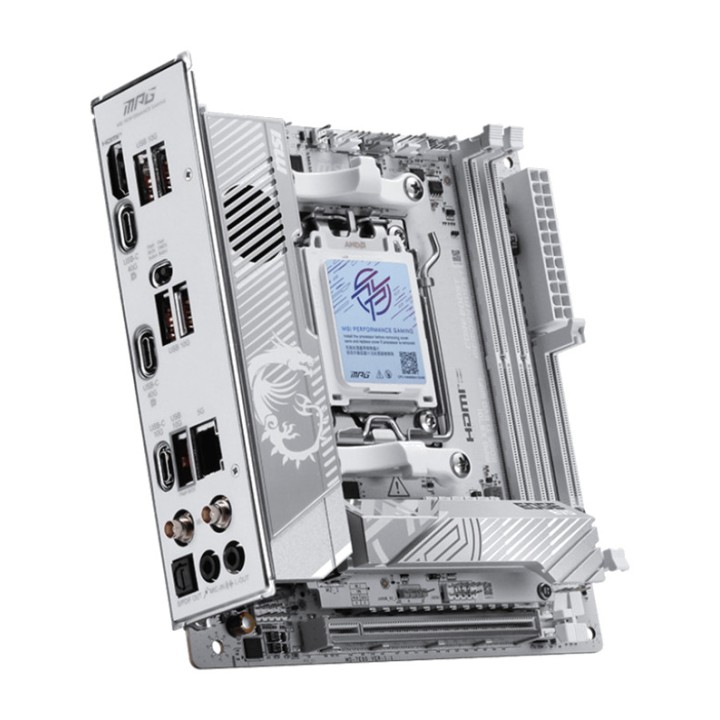

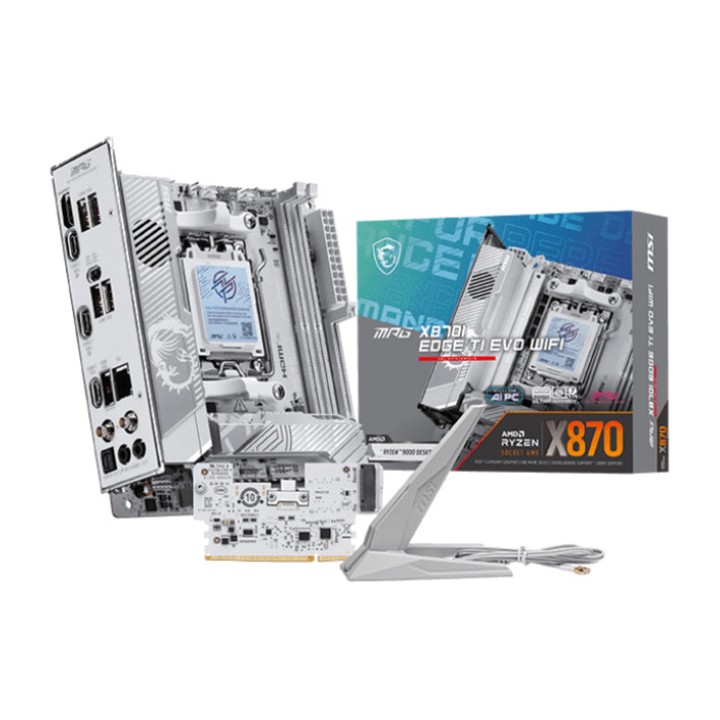

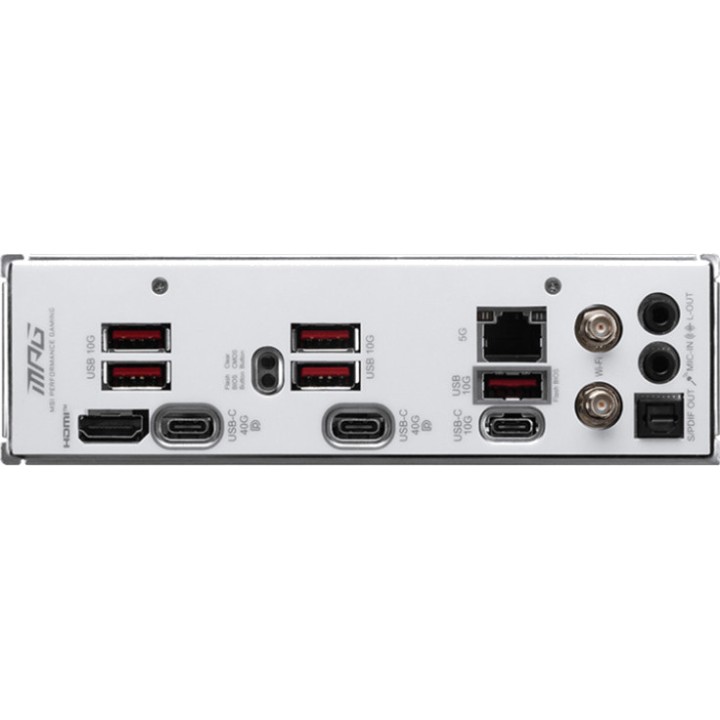

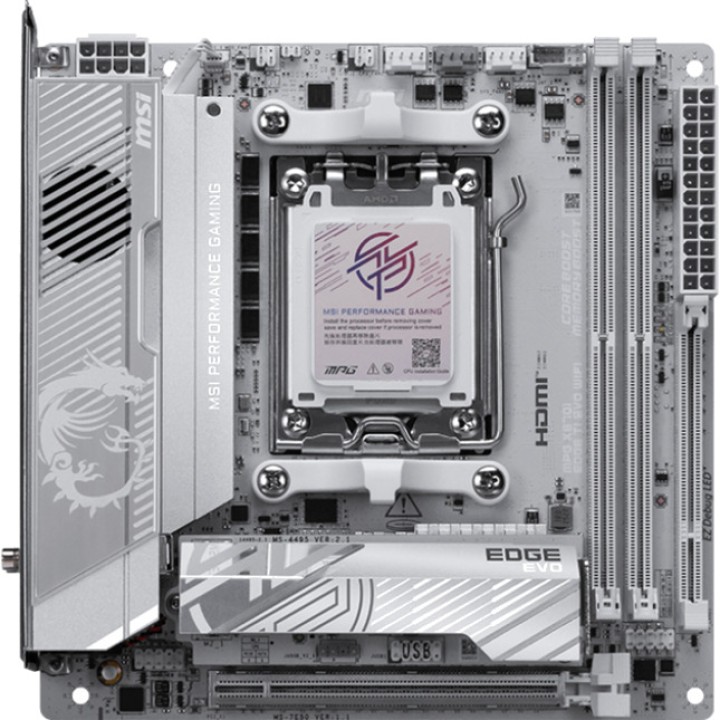

MSI Mini-ITX motherboard MPG X870I EDGE TI EVO-WIFI AM5 100175282

The MSI MPG X870I EDGE TI EVO WIFI is based on the AMD X870E chipset and supports AMD processors for the AM5 socket. It has two DDR5 slots for up to 128 GB of RAM. Other features of the MSI MPG X870I EDGE TI EVO WIFI include a PCIe 5.0 x16 slot. In addition, the MSI MPG X870I EDGE TI EVO WIFI features 8-channel audio, a 5-gigabit LAN interface, WiFi 7, Bluetooth 5.4, two SATA3 ports, two M.2 ports and a variety of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System - Support: Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 1x (of which: 1x PCIe) x 16)
BIOS: 256 Mbit flash AMI UEFI BIOS
Form factor: Mini-ITX
Usage: PC
Power supply: EPS (24 + 8 pins)
Memory - maximum : 128 GB
Connections (external) - USB 3.1: 5
Internal Connections - SATA: 2
Optional connections - USB 3.0: 2
RGB Standard: RGB Fusion
Controller SATA: AMD X870
ready-to-use RAID level : 0, 1, 10
Controller USB: AMD X870
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek ® ALC4080 CODEC
LAN: Realtek ® 8126 5G LAN
Dimensions: Width: 170 mm x Height: 170 mm
