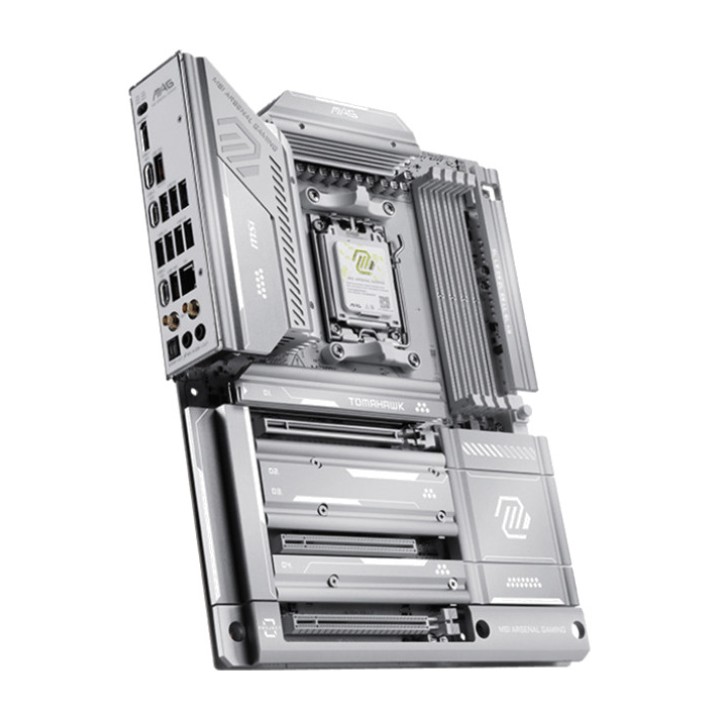

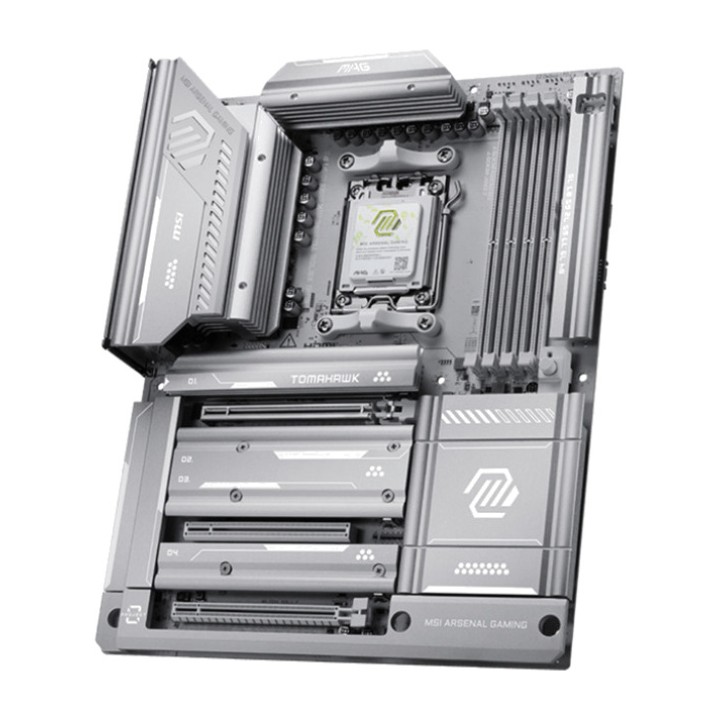

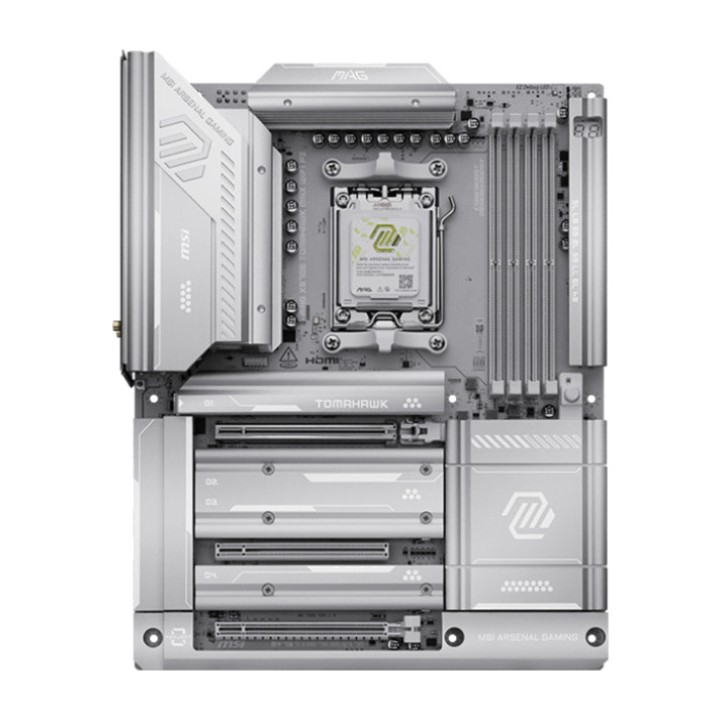

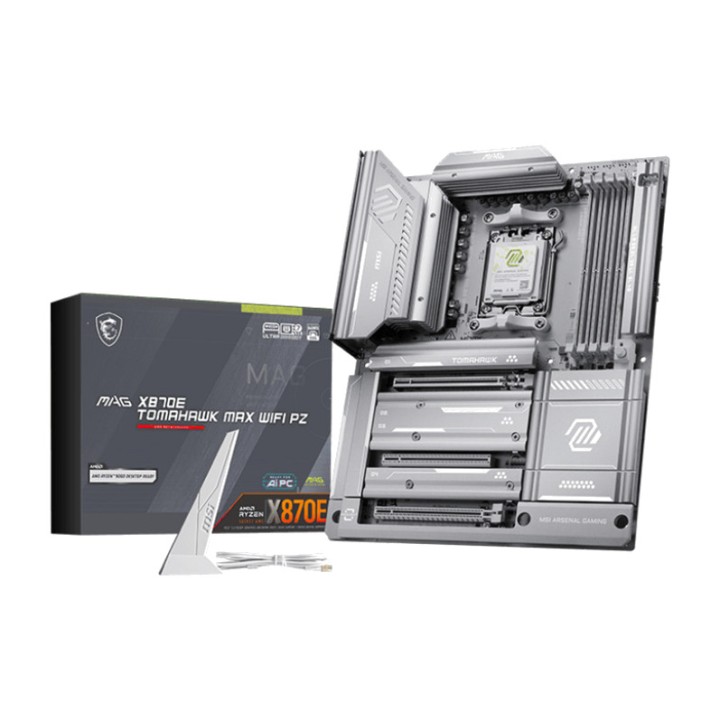

MSI ATX motherboard MAG X870E-TOMAHAWK MAX-WIFI PZ AM5 100156888

The MSI MAG X870E TOMAHAWK MAX WIFI PZ is based on the AMD X870E chipset and is compatible with AMD processors for socket AM5. It has four DDR5 slots for up to 192 GB of RAM. Other features of the MSI MAG X870E TOMAHAWK MAX WIFI PZ include one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 lanes), one PCIe 3.0 x16 slot (x1 lanes) and one PCIe 3.0 x1 slot. In addition, the MSI MAG X870E TOMAHAWK MAX WIFI PZ features 8-channel sound, a 5-gigabit LAN interface, WiFi 7, Bluetooth 5.4, four SATA3 ports, four M.2 ports and a variety of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System Support: Windows 10 ready, Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
Slots - PCIe x 16: 3x (of which: 1x PCIe x 16, 1x PCIe x 4, 1x PCIe x 1)
Form factor: ATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 2 x 8-pin)
Memory - maximum : 256 GB
Connections (external) - USB-C 3.1: 1
Internal Connections - SATA: 4
Optional connections - USB 3.0: 4
RGB Standard: Mystic Light
Controller SATA: AMD X870E
ready-to-use RAID level : 0, 1, 10, 5
Controller USB: AMD X870E
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Audio: Realtek® ALC4080 Codec
LAN: Realtek ® 8126 5G LAN
Dimensions: Width: 243,84 mm x Height: 304,8 mm
