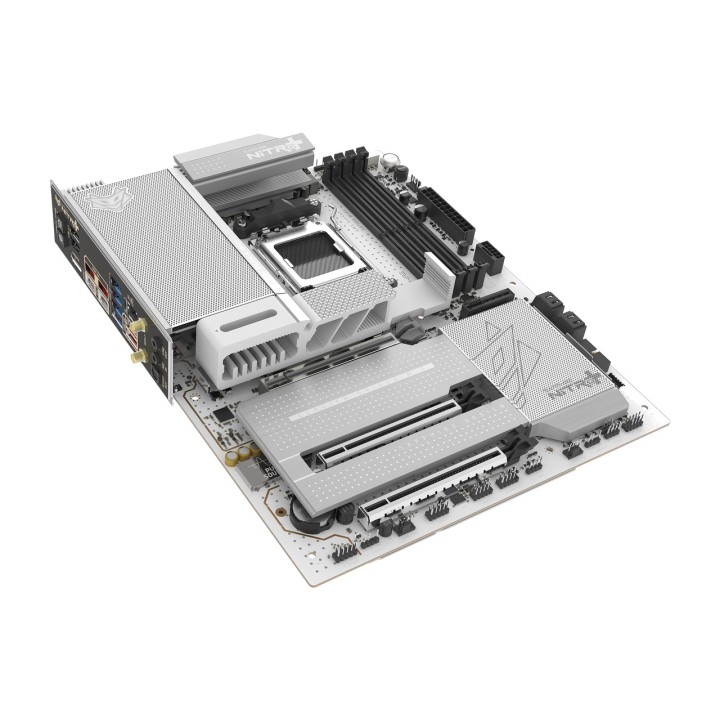

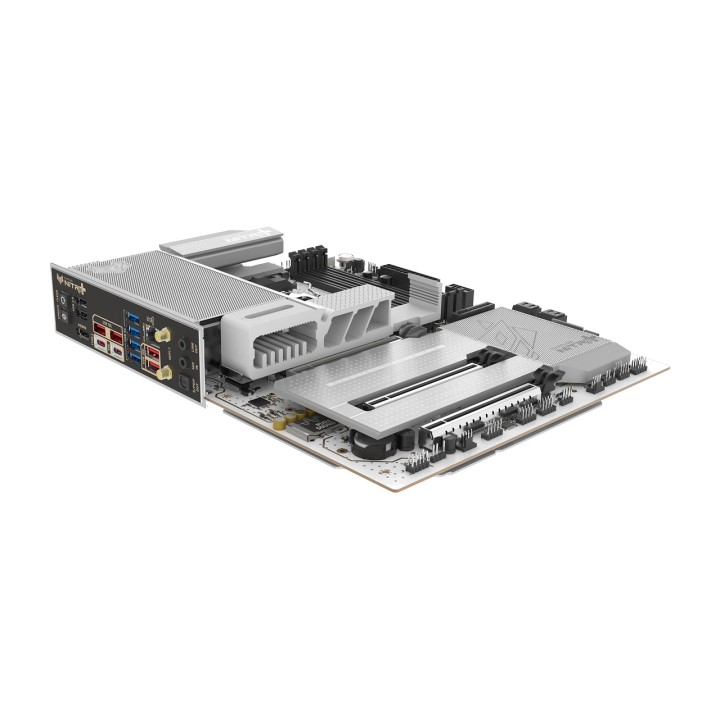

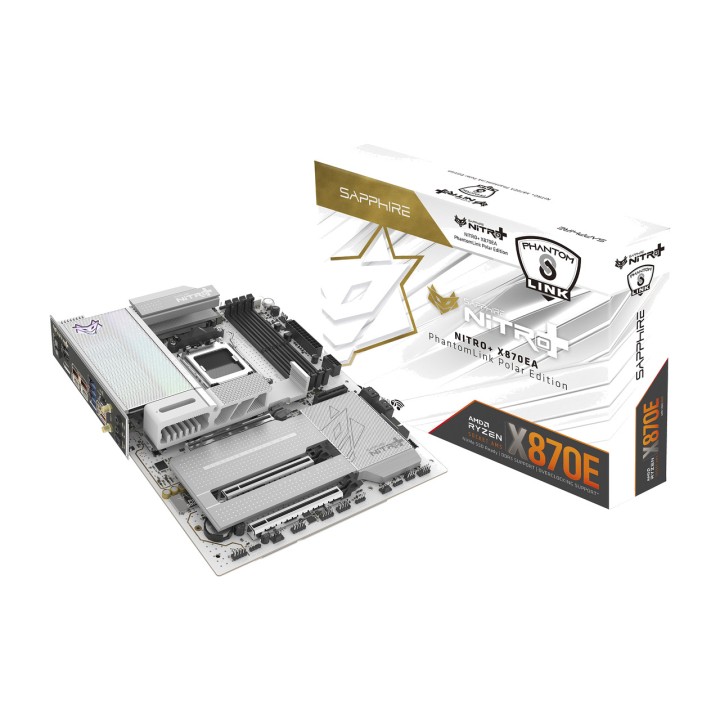

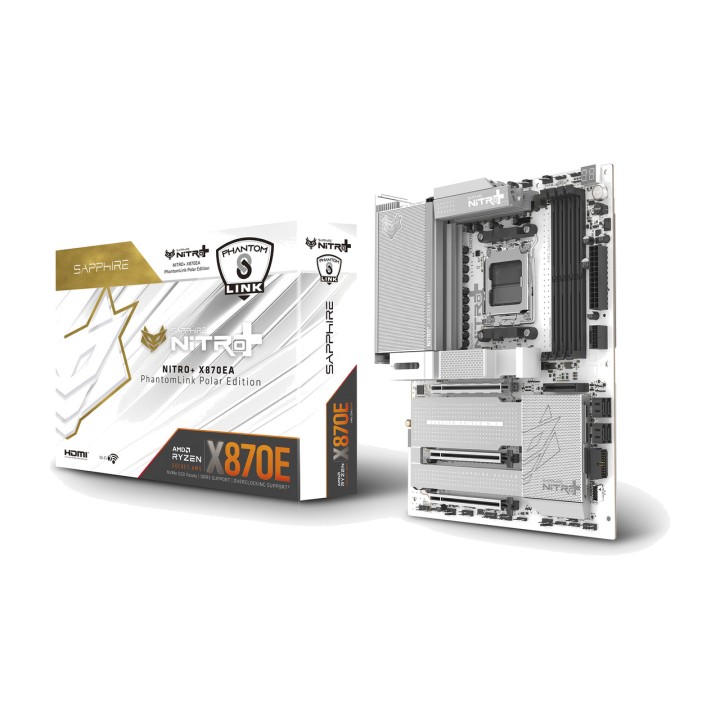

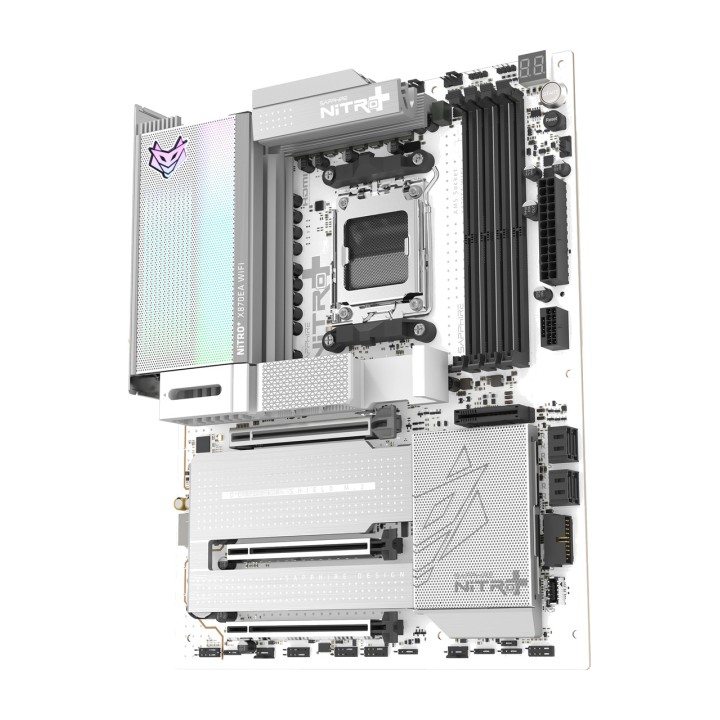

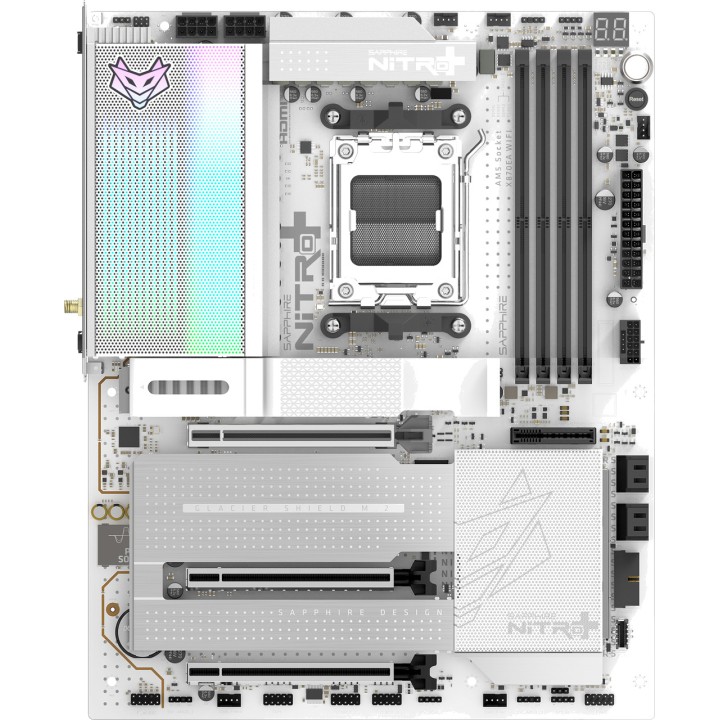

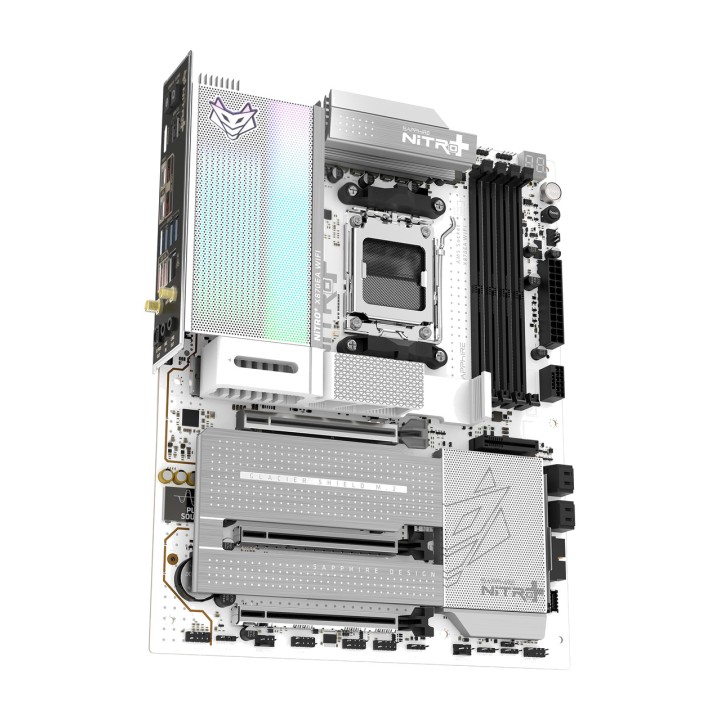

SAPPHIRE ATX motherboard NITRO+ X870EA WIFI7 PHANTOM-LINK AM5 100146190VAR

The SAPPHIRE NITRO+ X870EA WIFI7 Phantom Link Polar is based on the AMD X870E chipset and is compatible with AMD processors for the AM5 socket. It has four DDR5 slots for up to 256 GB of RAM. The SAPPHIRE NITRO+ X870EA WIFI7 Phantom Link Polar also features one PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots (4 lanes). In addition, the SAPPHIRE NITRO+ X870EA WIFI7 Phantom Link Polar features 8-channel audio, a 5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, four SATA3 ports, three M.2 ports and a range of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System Support: Windows 10 ready, Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 3x (including: 1x PCIe x 16, 2x PCIe x 4)
Form factor: ATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 2 x 8-pin)
Memory - maximum : 256 GB
Connections (external) - USB 3.1: 4
Internal Connections - SATA: 4
Optional connections - USB 3.0: 2
RGB Standard: Mystic Light
Controller SATA: AMD X870E
Controller USB: AMD X870E
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek ALC897 Codec
LAN: Realtek 8126 5G LAN
Dimensions: Width: 244 mm x Height: 305 mm
