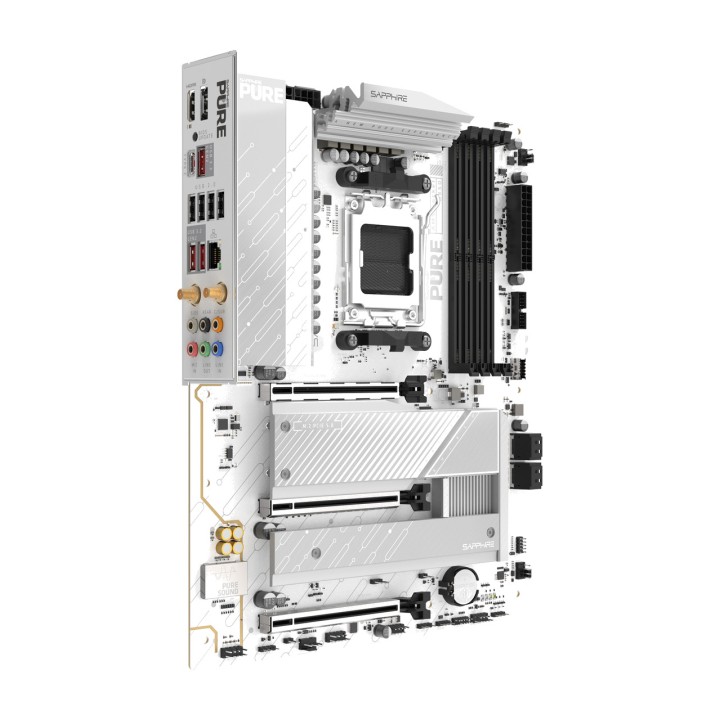

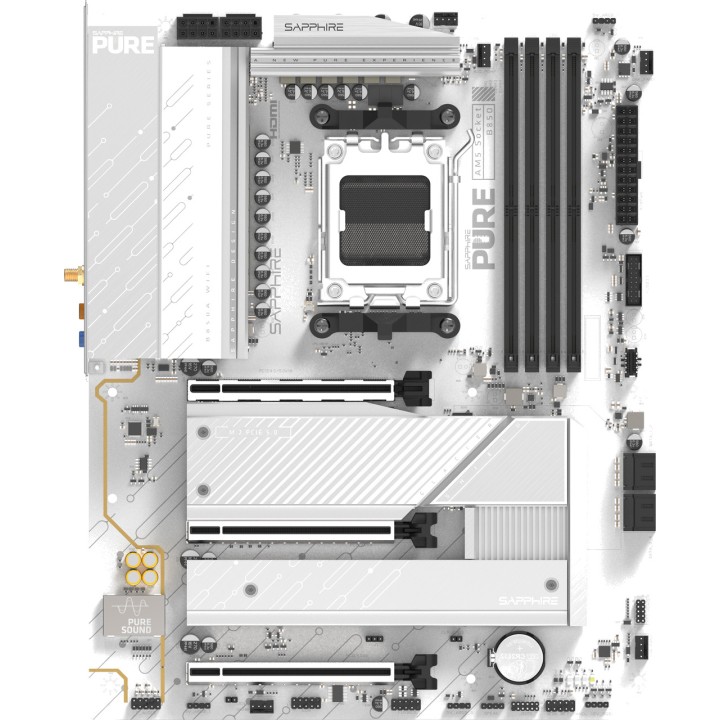

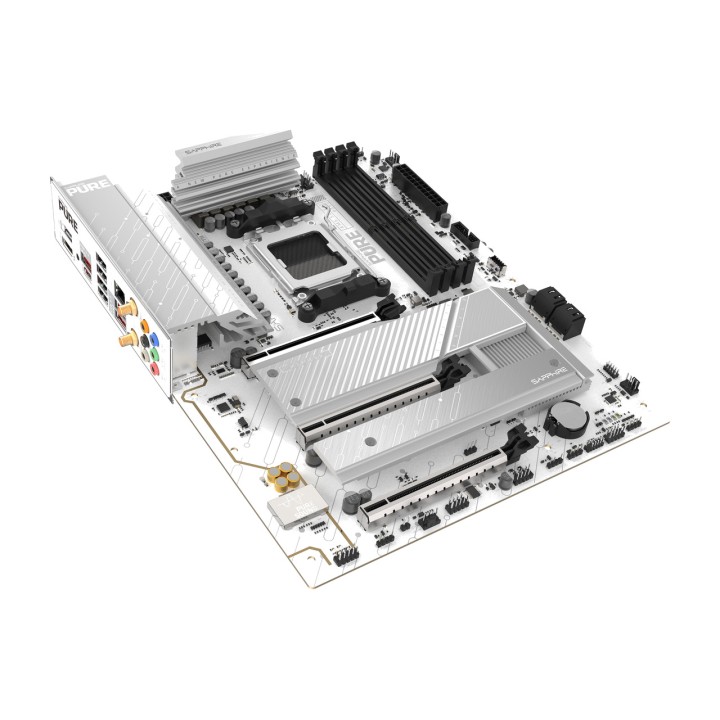

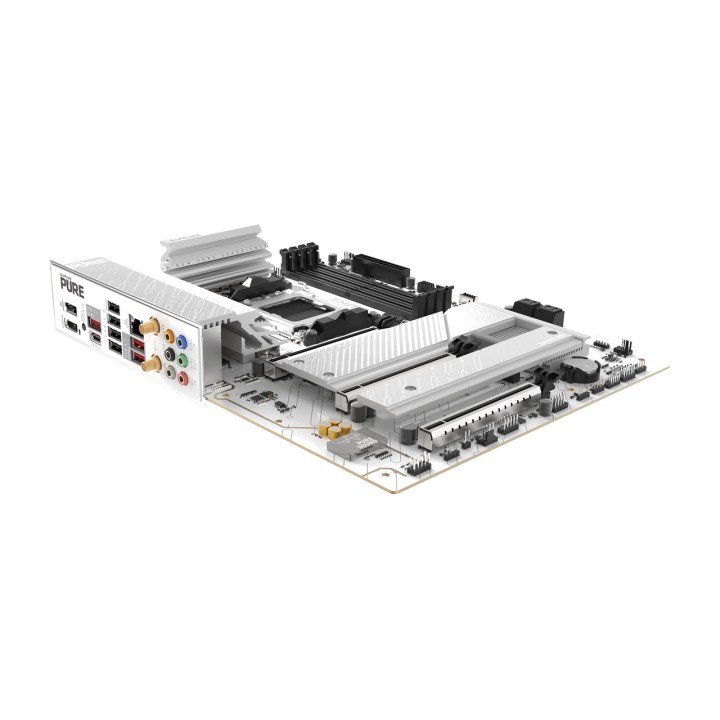

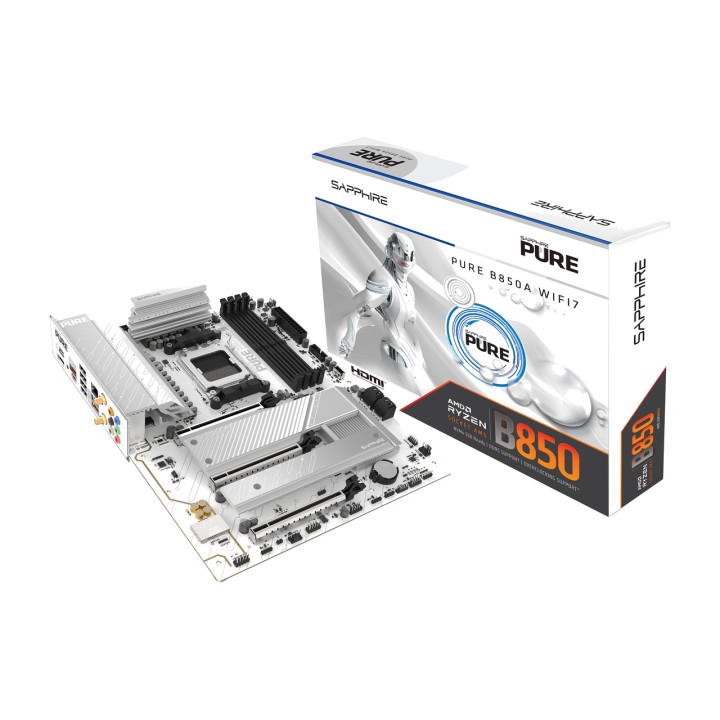

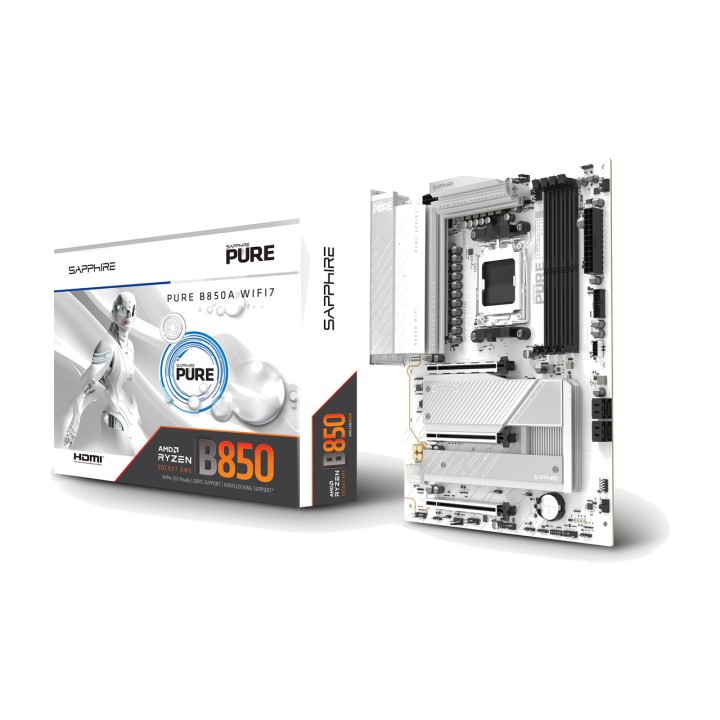

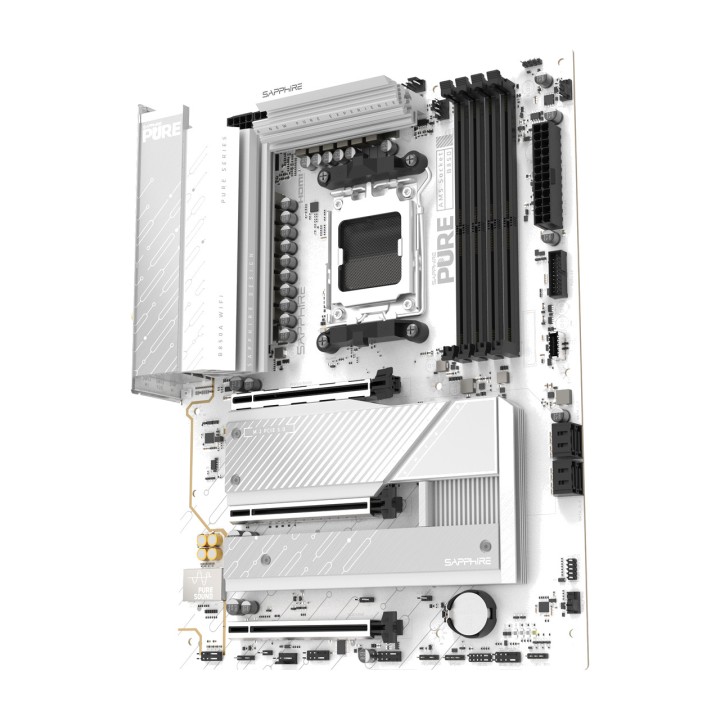

SAPPHIRE ATX motherboard PURE-B850A WIFI7 AM5 100146185

The SAPPHIRE PURE B850A WIFI 7 is based on the AMD B850 chipset and is compatible with AMD processors for the AM5 socket. It has four DDR5 slots for up to 256 GB of RAM. Other features of the SAPPHIRE PURE B850A WIFI 7 include one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 lanes) and one PCIe 4.0 x16 slot (x2 lanes). In addition, the SAPPHIRE PURE B850A WIFI 7 features 6-channel audio, a 2.5 Gigabit LAN interface, four SATA3 ports, WiFi 7, Bluetooth 5.4, three M.2 ports and a range of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System Support: Windows 10 ready, Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 1x (of which: 1x PCIe) x 16)
BIOS - EFI BIOS: yes
Form factor: ATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 2 x 8-pin)
Memory - maximum : 256 GB
Connections (external) - USB-C 3.1: 1
Internal Connections - SATA: 4
Optional connections - USB 3.0: 2
Controller SATA: AMD B850
ready-to-use RAID level : 0, 1, 10
Controller USB: AMD B850
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek ALC897
LAN: Realtek RTL8125BG 2.5G LAN
Dimensions: Width: 244 mm x Height: 305 mm
Warnings and safety instructions: WARNINGS: / Attention: The product contains a button cell battery or a button battery.
