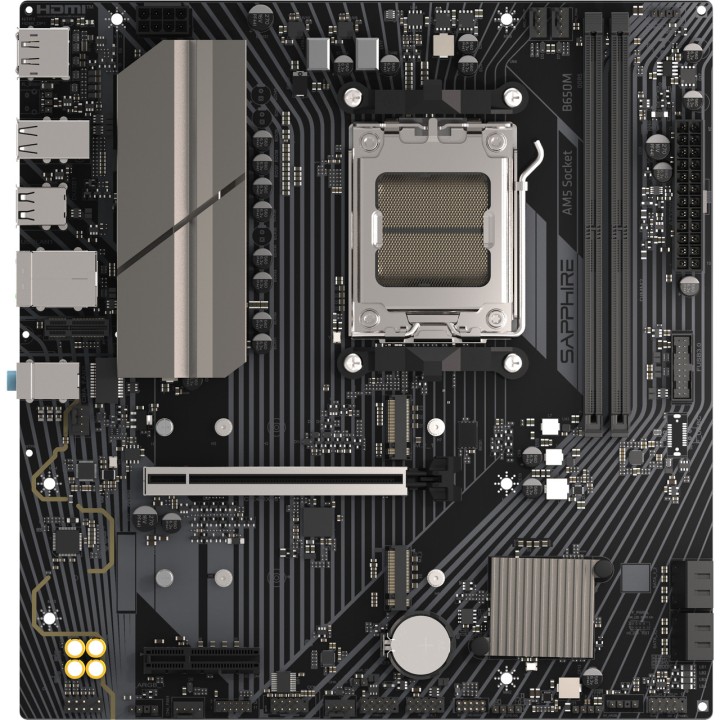

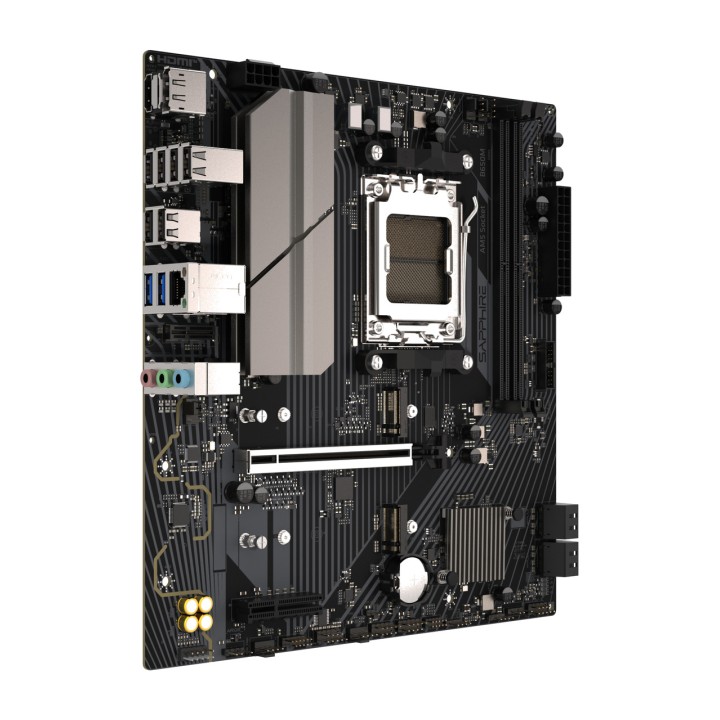

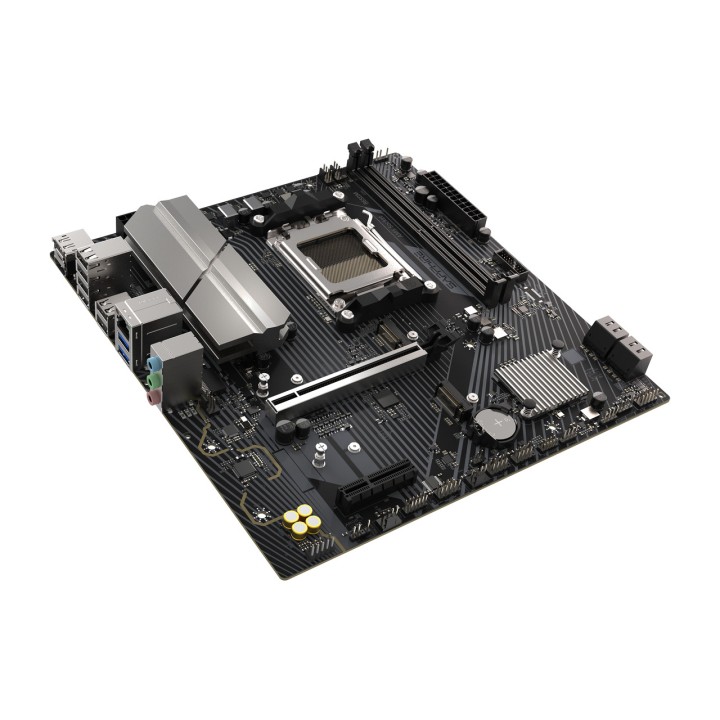

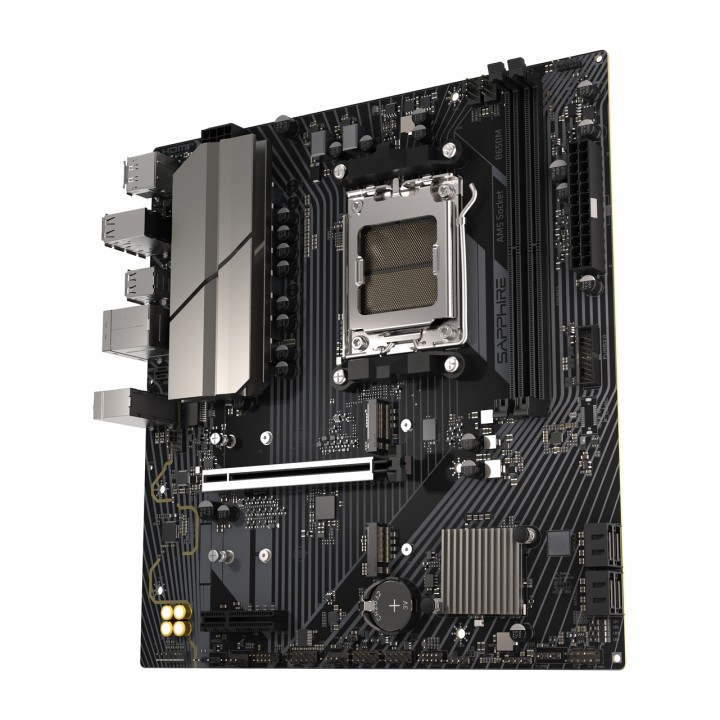

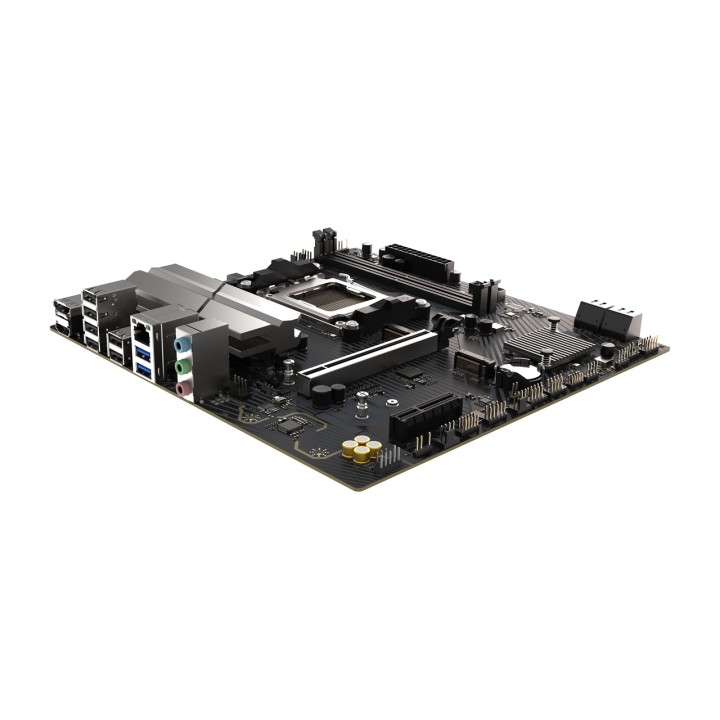

SAPPHIRE Micro ATX motherboard B650M-E AM5 DDR5 100146177

The SAPPHIRE B650M-E motherboard is based on the AMD B650 chipset and supports AMD processors for the AM5 socket. It has two DDR5 DIMM slots operating in dual-channel mode for up to 96 GB of RAM. Other features of the SAPPHIRE B650M-E include one PCIe 4.0 x16 slot and one PCIe 4.0 x4 slot. In addition, the SAPPHIRE B650M-E features multichannel HD audio, a 2.5 Gigabit LAN interface, four SATA3 ports, two M.2 ports (1x with PCIe 5.0 support) and a range of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System - Support: Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 1x (of which: 1x PCIe) x 16)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form factor: µATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 8 + 4-pin)
Memory - maximum : 96 GB
Connections (external) - USB 3.0: 2
Internal Connections - SATA: 4
Optional connections - USB 3.0: 2
RGB Standard: AURA Sync
Controller SATA: AMD B650
Controller USB: AMD B650
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek ALC897
LAN: Realtek RTL8125BG 2.5-Gbit Ethernet
Dimensions: Width: 235 mm x Height: 244 mm
