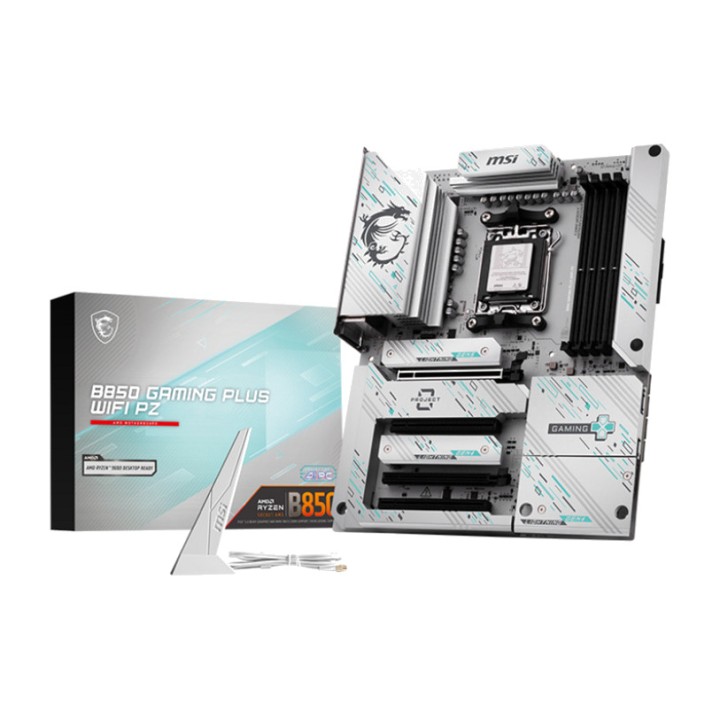

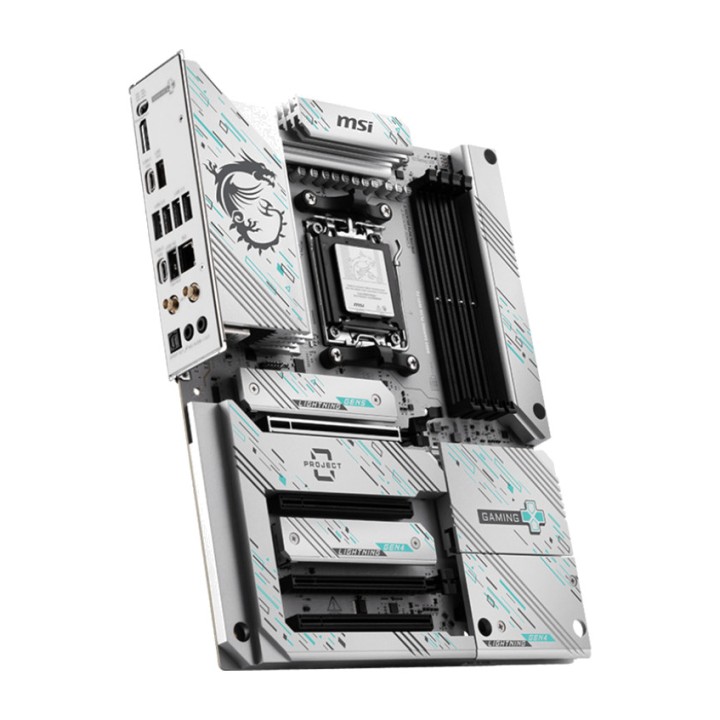

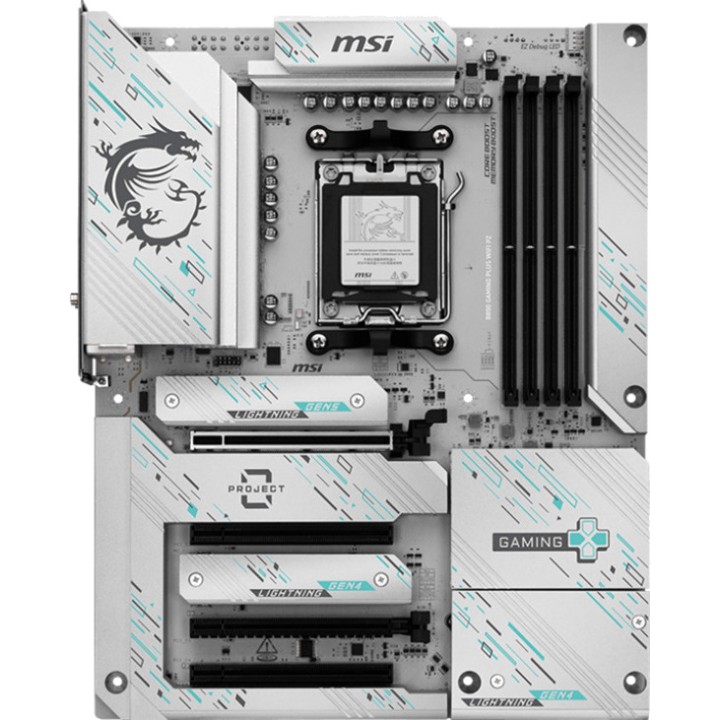

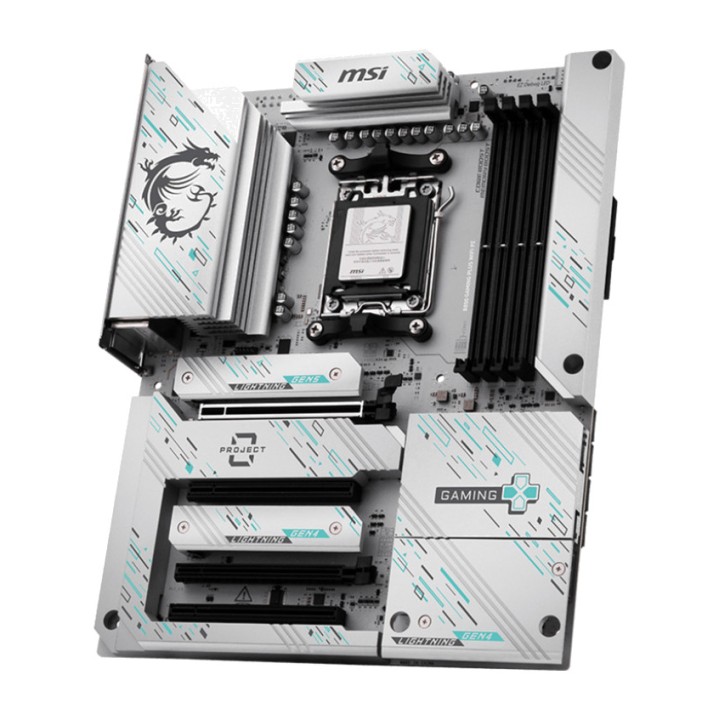

MSI ATX motherboard B850-GAMING PLUS-WIFI PZ AM5 100140531

The MSI B850 GAMING PLUS WIFI PZ is based on the AMD B850 chipset and is compatible with AMD processors for the AM5 socket. It has four DDR5 slots for up to 256 GB of RAM. Other features of the MSI B850 GAMING PLUS WIFI PZ include one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 lanes) and two PCIe 3.0 x16 slots (x1 lanes). In addition, the MSI B850 GAMING PLUS WIFI PZ features 8-channel sound, a 5 Gigabit LAN interface, four SATA3 ports, WiFi7, Bluetooth, three M.2 ports and a range of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System Support: Windows 10 ready, Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 4x (including: 1x PCIe x 16, 1x PCIe x 4, 2x PCIe x 1)
BIOS - EFI BIOS: yes
Form factor: ATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 2 x 8-pin)
Memory - maximum : 256 GB

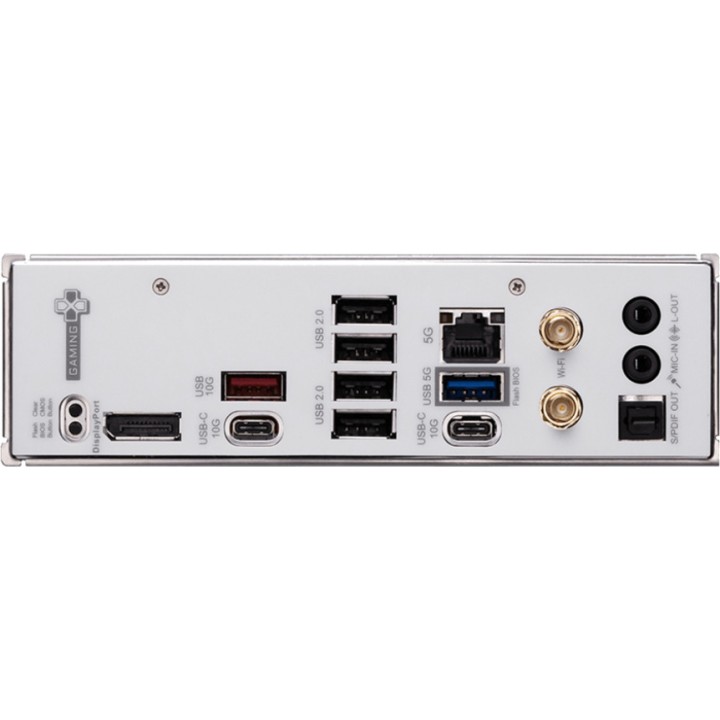

Connections (external) - USB-C 3.1: 2
Internal Connections - SATA: 4
Optional connections - USB 3.0: 4
Controller SATA: AMD B850
ready-to-use RAID level : 0, 1, 10
Controller USB: AMD B850
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek ALC897
LAN: Realtek 8126VB 5G LAN
Warnings and safety instructions: WARNINGS: / Attention: The product contains a button cell battery or a button battery.
