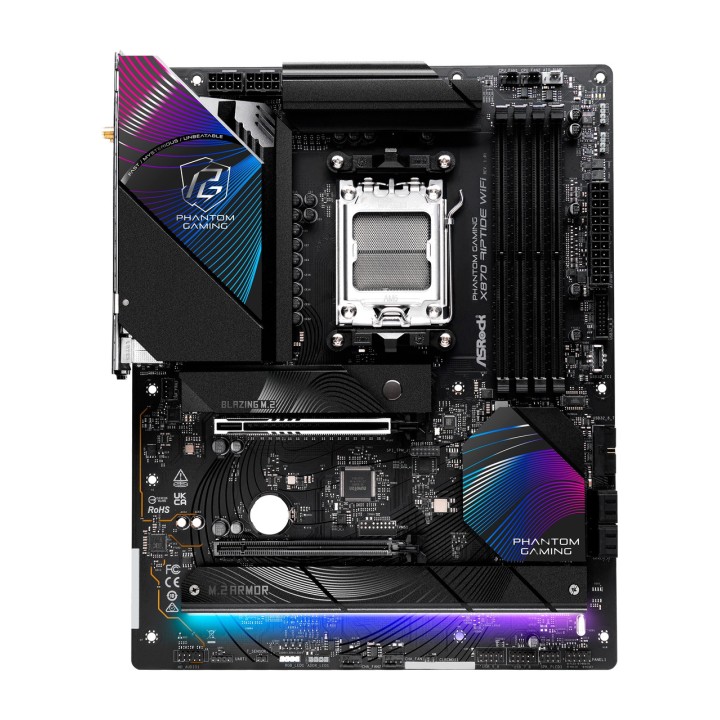

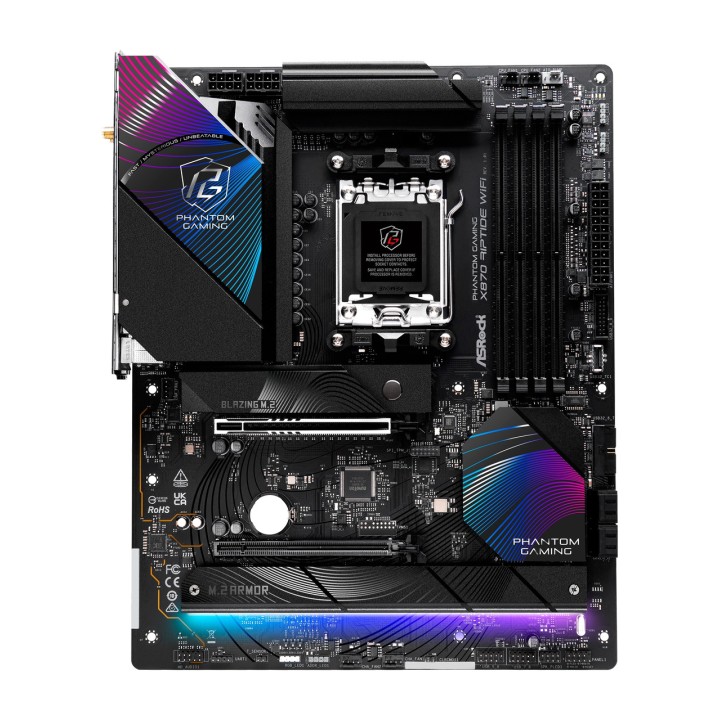

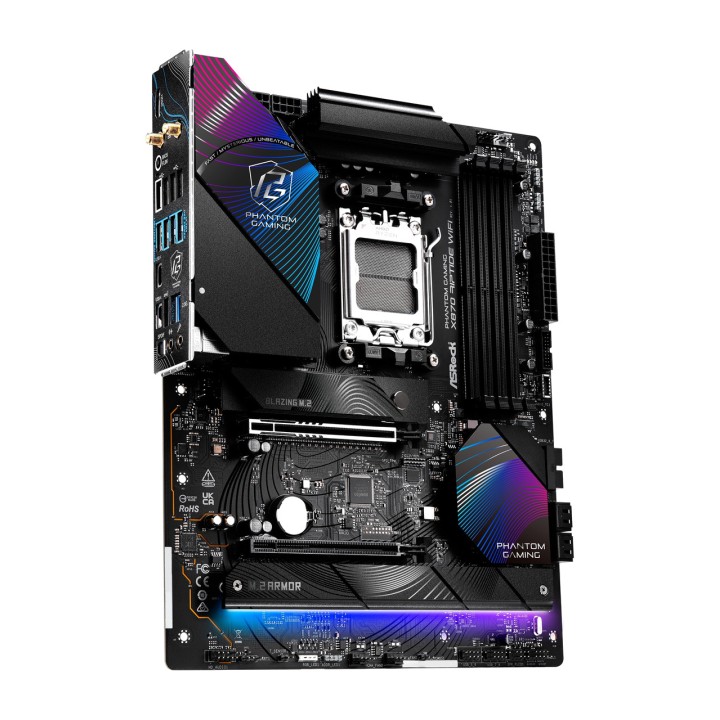

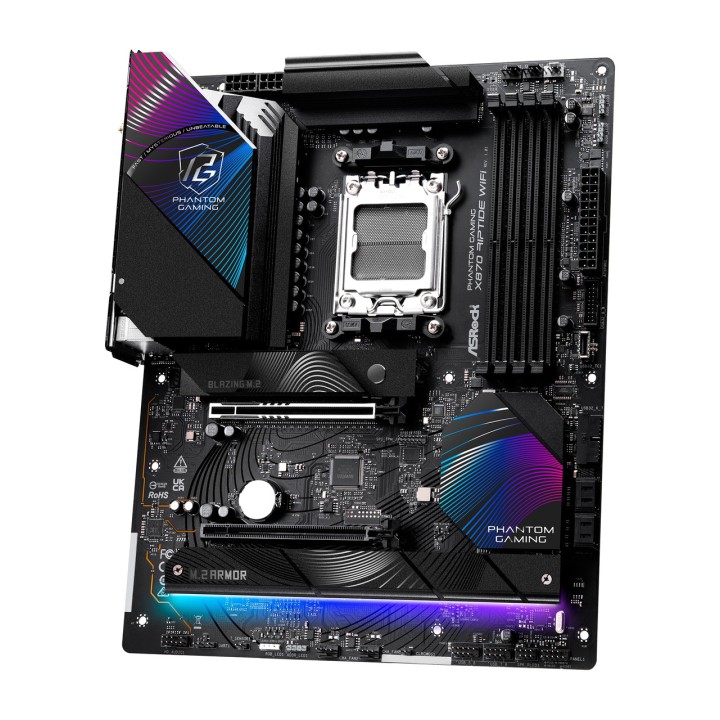

ASROCK ATX motherboard X870-RIPTIDE-WIFI AM5 100080099

The ASRock X870 Riptide WiFi is based on the AMD X870 chipset and supports AMD processors for the AM5 socket. It has four DDR5 slots for up to 256 GB of RAM. Other features of the ASRock X870 Riptide WiFi include a PCIe 5.0 x16 slot and a PCIe 4.0 x16 slot (x4 lanes). In addition, the ASRock X870 Riptide WiFi features 8-channel sound, a 2.5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, four SATA3 ports, three M.2 ports and a range of USB ports.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System Support: Windows 10 ready, Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 2x (including: 1x PCIe x 16, 1x PCIe x 4)
BIOS: 256Mb Flash ROM UEFI AMI BIOS
Form factor: ATX
Usage: PC
Power supply: EPS12v 2.9 x (24 + 2 x 8-pin)
Memory - maximum : 256 GB
Connections (external) - USB 3.1: 2
Internal Connections - SATA: 4
Optional connections - USB 3.0: 4
RGB Standard: RGB LED
Controller SATA: AMD X870
ready-to-use RAID level : 0, 1, 10
Controller USB: AMD X870
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
LAN: E3100G 2.5Gb Ethernet
Dimensions: Width: 244 mm x Height: 305 mm
