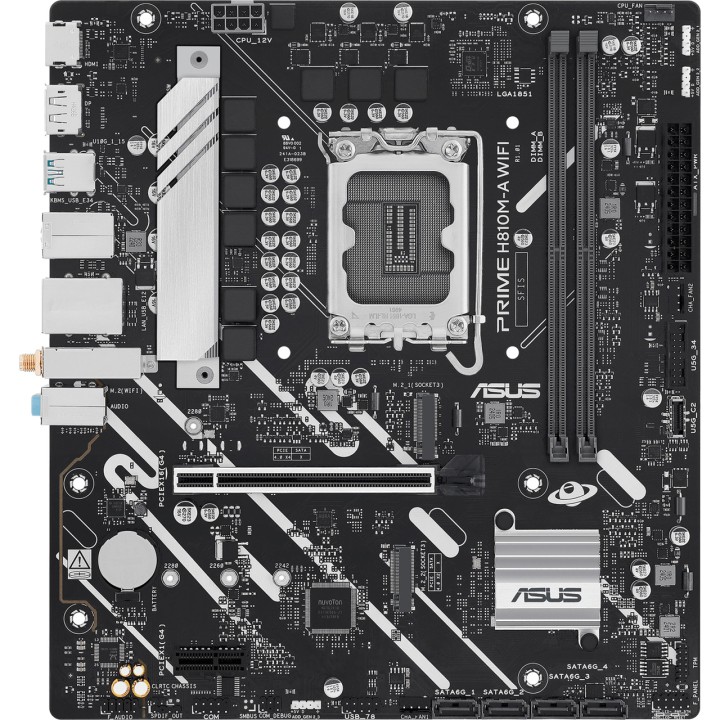

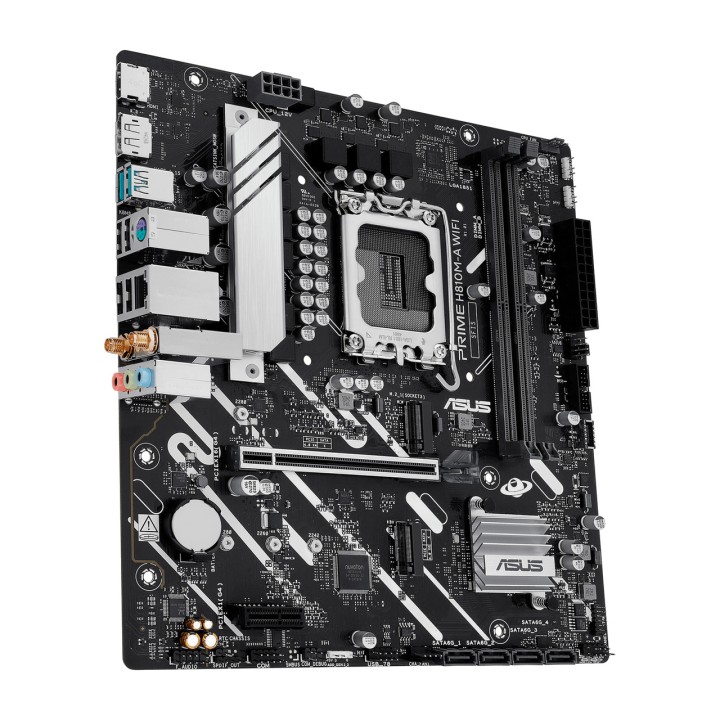

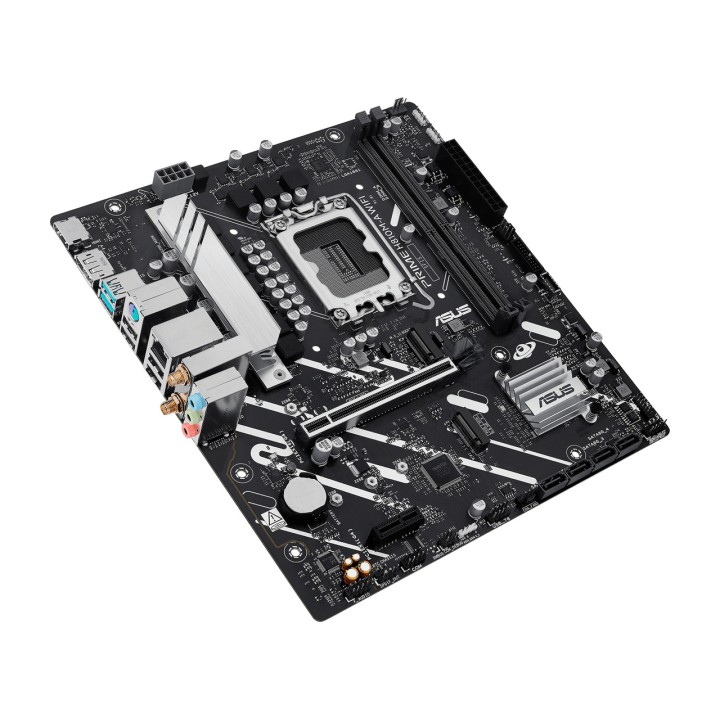

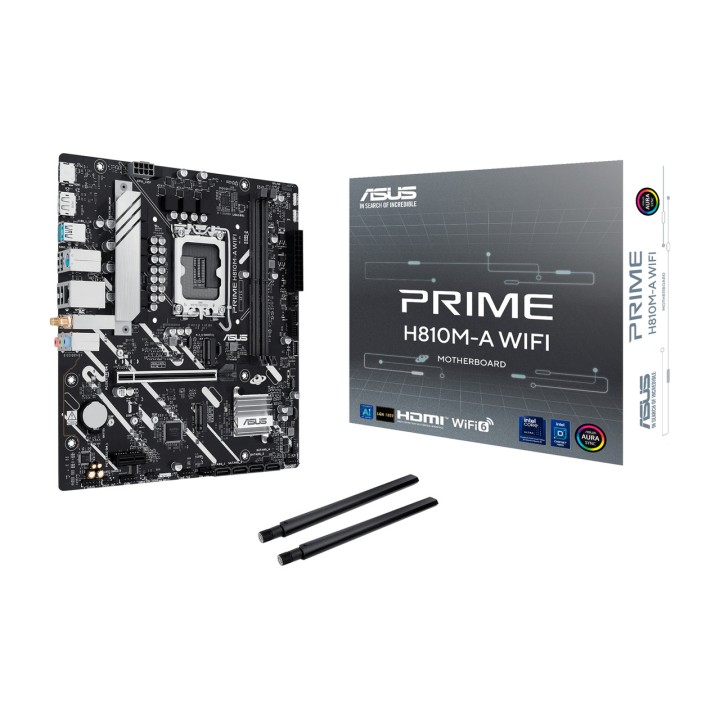

ASUS Micro ATX motherboard for Intel PRIME H810M-A-WIFI LGA1851 100106786

The ASUS PRIME H810M-A WIFI is based on the Intel® H810 chipset and is compatible with Intel® processors for the 1851 socket. It has two DDR5 slots for up to 128 GB of RAM. The ASUS PRIME H810M-A WIFI also features a PCIe 4.0 x16 slot and a PCIe 4.0 x1 slot. Additionally, the ASUS PRIME H810M-A WIFI includes 8-channel audio, a Gigabit LAN interface, four SATA3 ports, Wi-Fi 6, Bluetooth 5.3, two M.2 ports, and a range of USB ports.
Type: Base Plate
Socket: 1851
CPU max number x.: 1
Processor - Supported models: Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7 2xxKF (Arrow Lake), Core Ultra 7 2xxT (Arrow Lake), Core Ultra 9 2xx (Arrow Lake), Core Ultra 9 2xxK (Arrow Lake), Core Ultra 9 2xxKF (Arrow Lake), Core Ultra 9 2xxT (Arrow Lake)
PCIe x 16 slots: 1x (of which: 1x PCIe) x 16)
BIOS: 256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Form factor: µATX
Usage: PC
Power supply: EPS (24 + 8 pins)
Memory - maximum : 128 GB
Connections (external) - USB 3.0: 2
Internal Connections - SATA: 4
Optional connections - USB 3.0: 2
SATA Controller: Intel ® H810
ready-to-use RAID level : 0, 1, 10, 5
USB Controller: Intel ® H810
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
LAN: Intel ® I219V
Warnings and safety instructions: WARNINGS: / Attention: The product contains a button cell battery or a button battery.
