ASUS Micro ATX motherboard for AMD PRO B650M-CT-CSM AM5 100020027

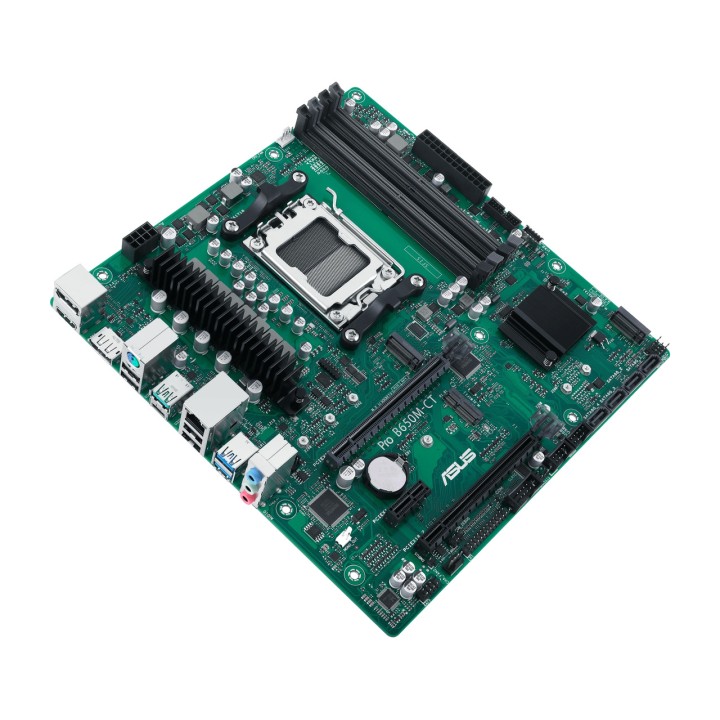

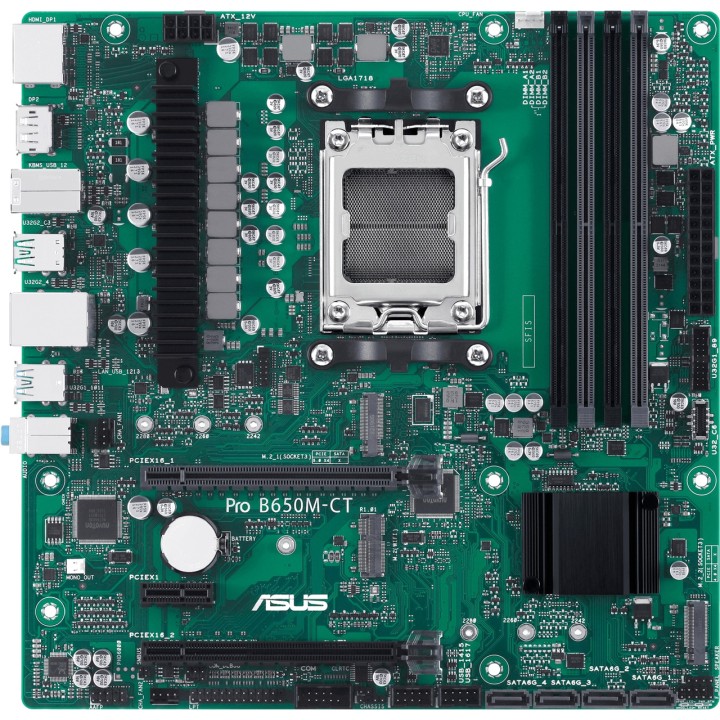

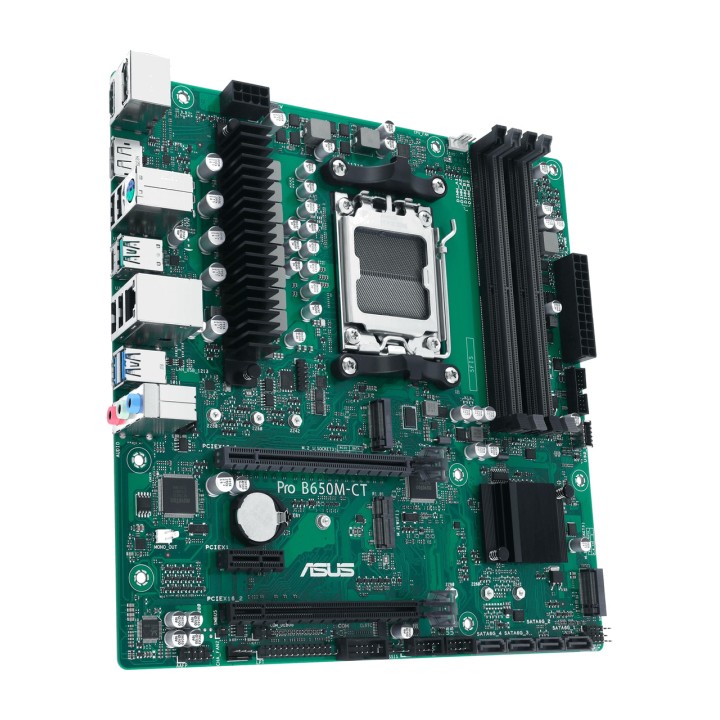

The ASUS PRO B650M-CT-CSM motherboard is based on the AMD B650 chipset and is compatible with AMD processors for the AM5 socket. It has four DDR5 DIMM slots in dual-channel mode for up to 192 GB of memory. The ASUS PRO B650M-CT-CSM also features two PCIe 4.0 x16 slots and one PCIe 4.0 x1 slot. Additionally, the PRO B650M-CT-CSM has 8-channel audio, a Gigabit LAN interface, four SATA3 ports, two M.2 ports (1x with support for PCIe 5.0 x4), and a series of USB interfaces. This motherboard has several features for use in business environments.
Type: Base Plate
Socket: AM5
CPU max number x.: 1
Operating System Support: Windows 10 ready, Windows 11 ready
Processor - Supported models: Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxxF (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge)
PCIe x 16 slots: 2x (including: 1x PCIe x 16, 1x PCIe x 4)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form factor: µATX
Usage: PC
Power supply: EPS (24 + 8 pins)
Memory - maximum : 192 GB
Connections (external) - Mouse/keyboard combo (PS/2): 1
Internal Connections - SATA: 4
Optional connections - USB 3.0: 2
Controller SATA: AMD B650
ready-to-use RAID level : 0, 1, 10
Controller USB: AMD B650
Integrated graphics: The graphics connectors on the motherboard can only be used when a CPU with an integrated graphics chip is used.
Sound: Realtek 7.1 Surround Sound
LAN: Realtek 1Gb Ethernet
Dimensions: Width: 244 mm x Height: 244 mm
