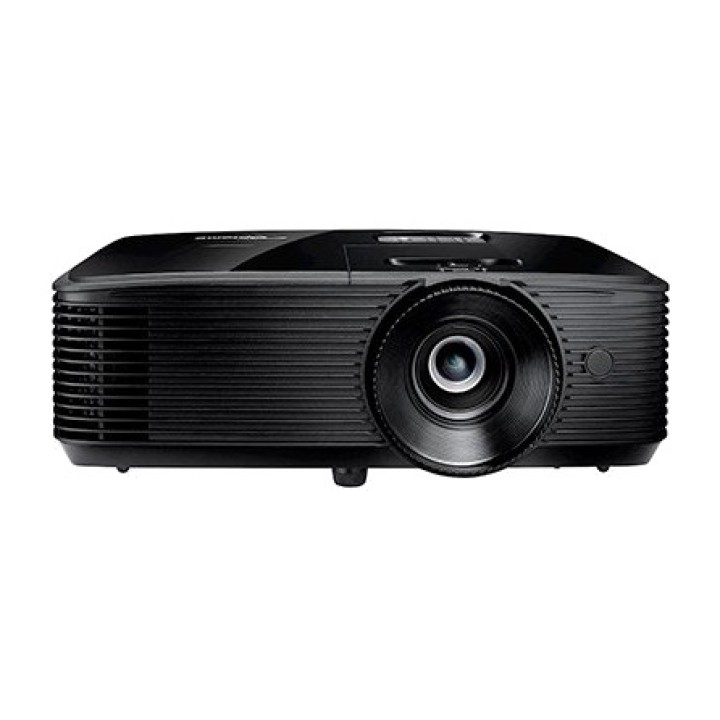

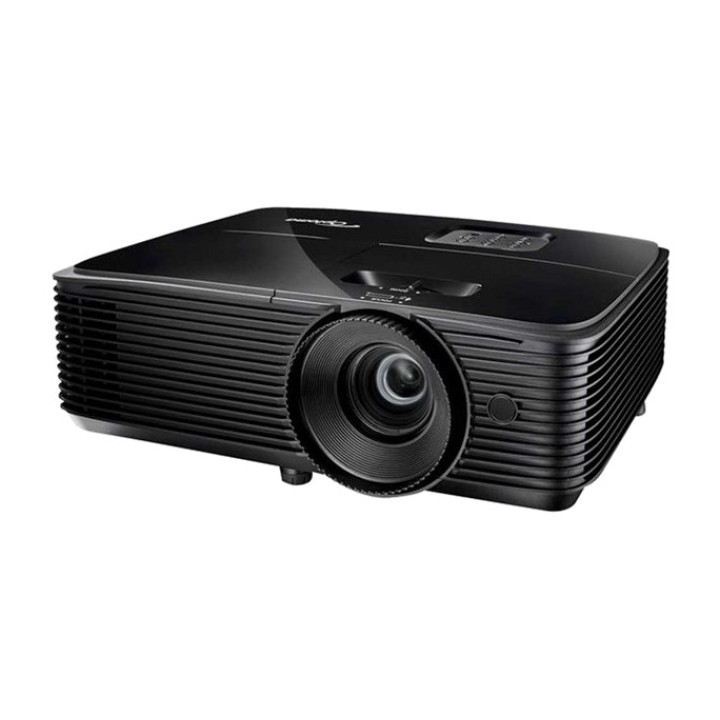

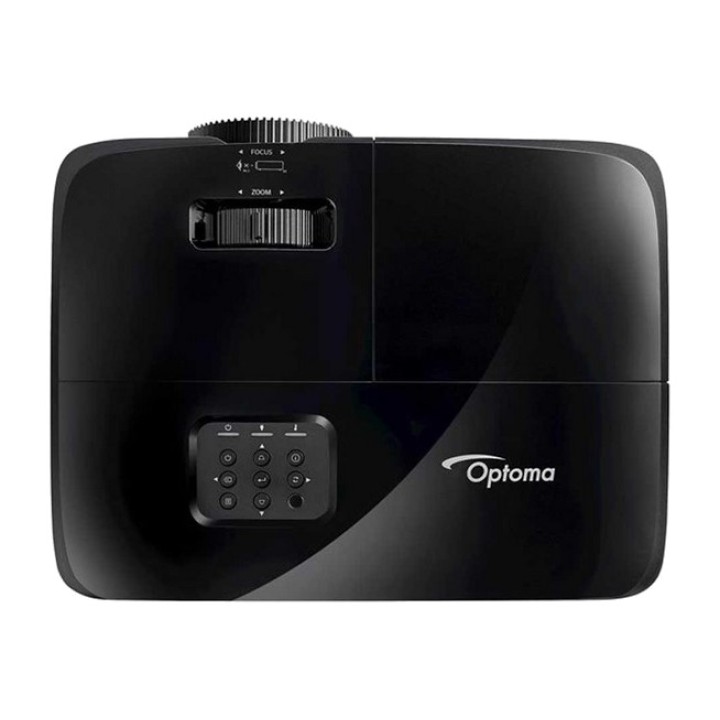

OPTOMA Lamp projector for presentations X400LVE DLP-XGA 4000 LM DSP0000009144

Optoma X400LVe features
The Optoma X400LVe is a compact, versatile projector designed to deliver bright, vivid presentations in meeting rooms, classrooms and training spaces. With 4,000 lumens, XGA resolution and DLP technology, it projects clear images during the day, even in ambient light. Its long-life lamp, built-in speaker and connectivity options also make it a practical solution for professional and educational use, as well as meetings away from the office.
Bright projection for classrooms and meeting rooms
Thanks to its 4,000 lumens of brightness, the Optoma X400LVe is ready to project presentations, documents, graphics and audiovisual content with good visibility. Its XGA resolution of 1024 x 768 delivers an image suited to professional and educational environments where text and images need to be clear.

Brightness: 4,000 lumens
Native resolution : XGA 1024 x 768
Display technology: DLP
Native aspect ratio: 4:3
Compatible aspect ratio: 16:9
Contrast ratio: 25.000:1

Adjustable image and Full compatibility 3D
This projector features vertical keystone correction of +/-40°, making it easy to adjust the image when the unit is not perfectly aligned with the screen. It is also Full 3D compatible, allowing it to play 3D content in common formats such as Side-by-Side, Frame-pack and Over-Under.

Vertical Keystone correction: +/-40°
consistency : 75 %
Horizontal sampling frequency: 15.38 ~ 91.15 kHz
Vertical sampling frequency: 50 ~ 85 Hz, 120 Hz for 3D
3D compatibility: Full 3D
Compatible 3D formats: Side-by-Side, Frame-pack and Over-Under

Long-life lamp and energy savings
The Optoma X400LVe uses a lamp light source with different operating modes to adapt power consumption and service life to each use. In Eco+ mode, the lamp can last up to 15,000 hours, helping to reduce maintenance and the total cost of ownership.

Light source: lamp
Lamp power : 203 W
Lamp life in Bright mode: 6,000 hours
Lamp life in Dynamic mode: 12,000 hours
Lamp life in Eco mode: 10,000 hours
Lamp life in Eco+ mode: 15,000 hours

Flexible installation and large screen size
Its design allows projection from a distance of 1 m to 12 m, making it suitable for both small rooms and larger spaces. The 1.1 manual zoom and throw ratio of 1.94:1 ~ 2.16:1 make it easy to set up the image according to the projector's location.

Projection distance: 1 m - 12 m
Screen size: 0.71 m ~ 7.73 m diagonal
Equivalent screen size: 27.78 inches ~ 304.4 inches
Throw distance : 1.94:1 ~ 2.16:1
ZOOM: 1.1
Zoom type: Manual
Focal length: 21.85 mm ~ 24 mm
Native offset : 115 %

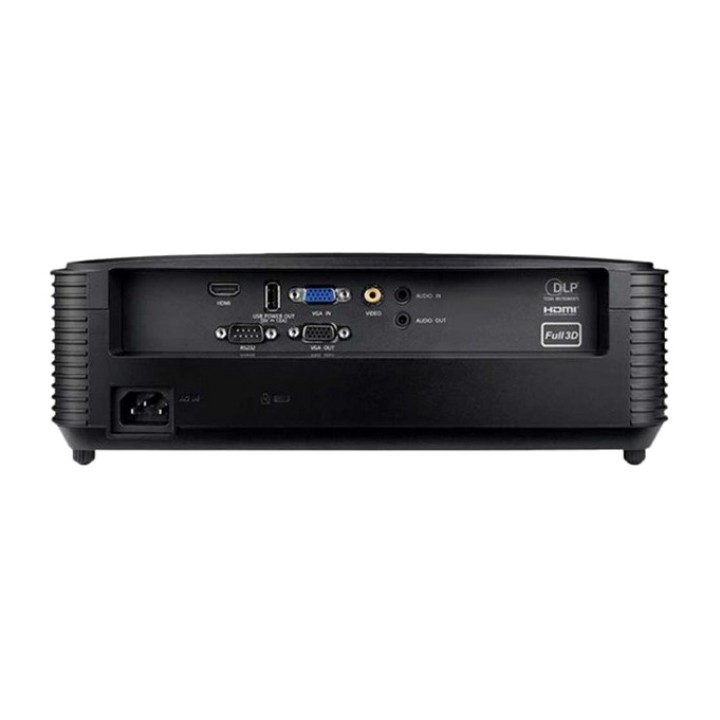

Comprehensive connectivity for presentations and multimedia content
The Optoma X400LVe offers multiple input connections for connecting laptops, PCs, Blu-ray players, video sources and HDMI dongles. It also includes a VGA output, an audio output and 1 A USB-A power supply, ideal for powering compatible accessories such as HDMI streaming devices.

HDMI 1.4a input / 3D: 1
VGA YPbPr input /RGB: 1
Composite video input : 1
3.5 mm audio input : 1
Output VGA: 1
3.5 mm audio output : 1
Power output USB-A: 1 A
CONTROL : 1 x RS232

Compatible with PC, Mac and common video signals
This projector is designed to work with a wide range of resolutions and systems, including PC, Mac and 2D video sources. This makes it a practical choice for shared rooms where different computers and devices are connected.

PC compatibility: FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA and Mac
2D compatibility: NTSC M/J, 3.58 MHz and 4.43 MHz
PAL compatibility: B/D/G/H/I/M/N, 4.43 MHz
SECAM compatibility: B/D/G/K/K1/L, 4.25/4.4 MHz
Compatible signals: 480i/p, 576i/p, 720p 50/60 Hz, 1080i 50/60 Hz and 1080p 50/60 Hz
3D Side-by-Side compatibility: 1080i50/60 and 720p 50/60
3D Frame-pack compatibility: 1080p24 and 720p 50/60
3D Over-Under compatibility: 1080p24 and 720p 50/60

Built-in speaker for presentations with sound
The integrated 10 W speaker lets you play audio directly from the projector, a very useful advantage for presentations, classes, training videos or meetings where sound is needed without installing external speakers.

Number of speakers : 1
Speaker power : 10 W
Audio input: 3.5 mm
Audio output: 3.5 mm

Portable and easy-to-carry design
With a net weight of 3.05 kg and compact dimensions, the Optoma X400LVe can be installed permanently or transported between rooms. It is also suitable for off-site meetings when paired with the optional carry bag, available separately.

Dimensions: 316 x 244 x 108 mm
Net weight: 3.05 kg
Gross weight: 3.58 kg
Optional carry bag: sold separately

Quiet operation and operating conditions
The projector maintains a low noise level to make it easy to use during presentations and classes without distractions. It is also designed to operate across a wide range of temperatures and humidity levels, making it easy to integrate into different professional environments.

Typical noise level: 27 dB
Maximum noise level: 29 dB
FUNCIONAMENT CONDITION : 5 °C ~ 40 °C
Maximum operating altitude: 3000 m
Maximum humidity : 85 %

Security, multilingual menu and remote control included
The Optoma X400LVe incorporates several physical and access security options, such as a security bar, Kensington Lock and password-protected interface. Its OSD menu is available in 25 languages, including Spanish, to facilitate use in international or shared environments.

Security: security bar
Compatible with Kensington Lock
Password-protected interface
OSD/display languages: 25 languages
Included languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese simplified, Spanish, Swedish, Chinese traditional, Turkish and Vietnamese

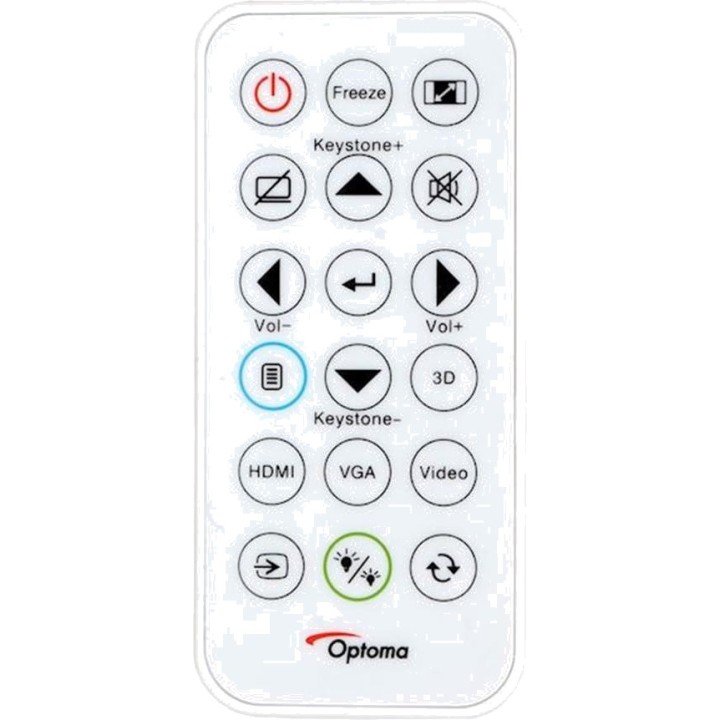

Remote control: ultra-slim card-style remote control

Power supply and energy consumption
The projector operates with a universal 100 ~ 240 V power supply, making it easy to use in different installations. Its power consumption modes allow operation to be adapted to the needs of each presentation.

Power supply : 100 ~ 240 V
Frequency: 50 ~ 60 Hz
Standby power consumption : 0.5 W
Minimum energy consumption : 187 W
Maximum power consumption : 225 W

Box contents and optional accessories
The Optoma X400LVe includes the basic items needed to start using it after installation. It can also be expanded with optional wireless accessories to improve connectivity and adapt to different workflows.

Box contents: AC power cable
Remote control included
Battery included
Basic user manual included
Optional wireless models: HDCast Pro, QuickCast Bundle, QuickCast starter kit and WHD200
Compatible with HDMI dongles such as Optoma HDCast Pro and Google Chromecast

Other specifications

Product: Optoma X400LVe
Recommended use: meeting rooms, classrooms, training and professional presentations
Portable and lightweight projector
Built-in speaker: yes
USB power: yes
RESOLUTION : XGA 1024 x 768
Brightness: 4,000 lumens
CONTRAST: 25.000:1
Native aspect ratio: 4:3
Compatible aspect ratio: 16:9
Full 3D: yes
Volume (m ³): 0.0228
