FONESTAR Dual wireless handheld and bodypack microphone SONAIR-2MP UHF MGS0000021275

Dual UHF wireless handheld and bodypack microphone

Wireless microphone with excellent range and sound quality. The transmitter uses an integrated audio management and transmission solution in a single chip, based on a DSP audio processor and
PLL frequency control. Compared with systems that integrate discrete components, this system offers far greater stability and reliability.
Our microphone uses traditional FM modulation technology for excellent sound quality.
Fixed-frequency transmission channels provide great ease of use.
It features a highly efficient battery power management design that allows prolonged use of the microphone.
Low-noise balanced and mixed unbalanced output for easy connection.
Compact and simple design.

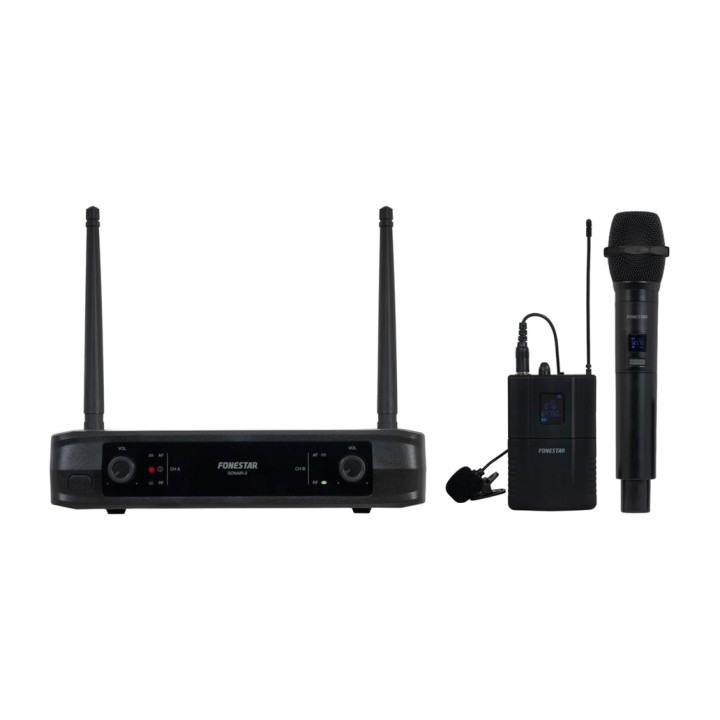

Consists of a dual receiver and two transmitters, one handheld microphone and one bodypack. The wireless handheld microphone has a unidirectional dynamic capsule that maximises direct voice pickup
the voice and rejection of noise and indirect sounds. And a bodypack transmitter with a lavalier microphone for efficient voice pickup.

Suitable for events with mobile microphones, such as presentations, conferences, events, performances, etc

Characteristic:

Dual wireless handheld and bodypack microphone.
Handheld microphone with unidirectional dynamic capsule.
Bodypack transmitter with lavalier microphone with unidirectional condenser capsule.

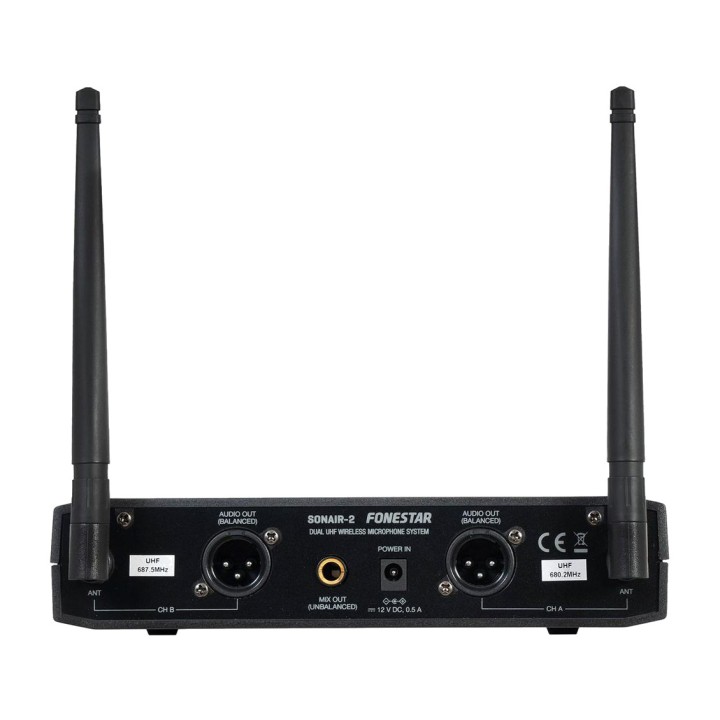

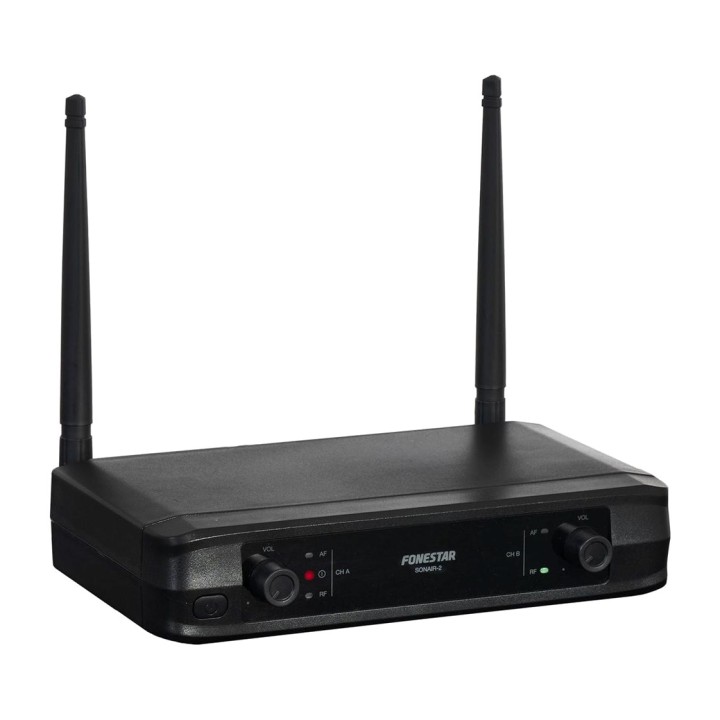

Compact receiver with radio frequency signal and audio signal indicators.
Fixed-frequency transmission channels.
Transmission range greater than 30 m.
Easy to use.
Maximum of 8 microphones at the same time on different channels.
FREQUENCIES: Group 1: 5572 / 5784 MHz
Group 2: 6365 / 6521 MHz
Group 3: 6802 / 6875 MHz
Group 4: 6853 / 6915 MHz
POWER: 30 mW
RESPONSE: 30-20,000 Hz (+/- 2 dB)
SIGNAL-TO-NOISE RATIO: >, 96 dB
OUTPUTS: Audio:
2 balanced, XLR, 0 ~ 250 m V, 600
1 mixed unbalanced, 63 mm jack, 0 ~ 250 m V, 1 K
RECEIVER: Reception sensitivity: -95 dBm
Distortion: < , 03%
Latency: 3 ms

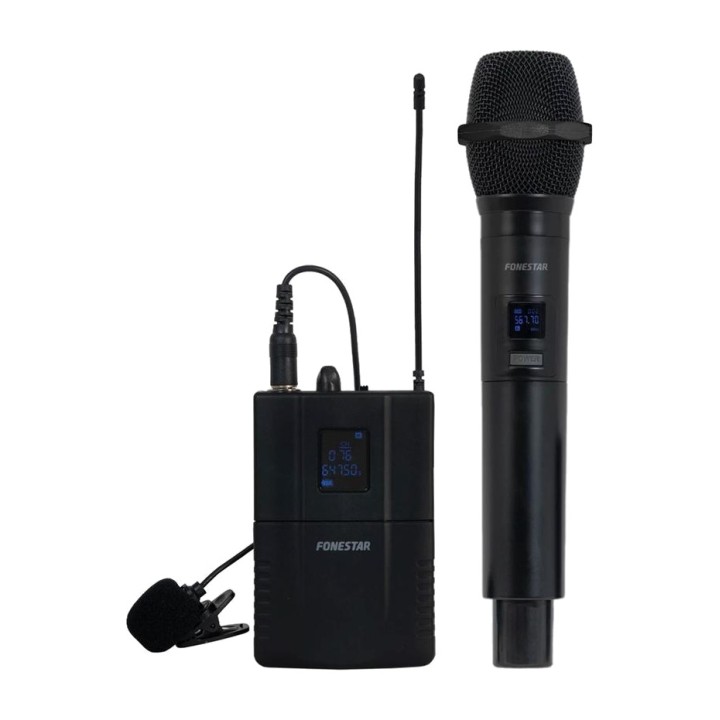

MICROPHONES: 1 wireless handheld microphone with unidirectional dynamic capsule
1 wireless bodypack microphone with lavalier microphone
35 mm mono input connector with female thread
Harmonic radiation: <, -50 dBc
Battery life (alkaline): approx. 8 -10 hours
POWER SUPPLY: Receiver: 12 V DC, 500 mA, with adapter included
Transmitter microphone: 2 AA batteries. Supports rechargeable batteries.
DIMENSIONS: Receiver: 210 x 46 x 156 mm deep
WEIGHT: 04 kg
ACCESSORIES: 63 mm mono jack cable, 1m
Anti-rotation ring
Power adapter
Microphone batteries
COMPATIBILITY: FCM-850-TSM: Lapel microphone
FCM-970-TSM: Headset microphone
FCM-660-TSM: Headset microphone
Volume (m ³): 0.0077
