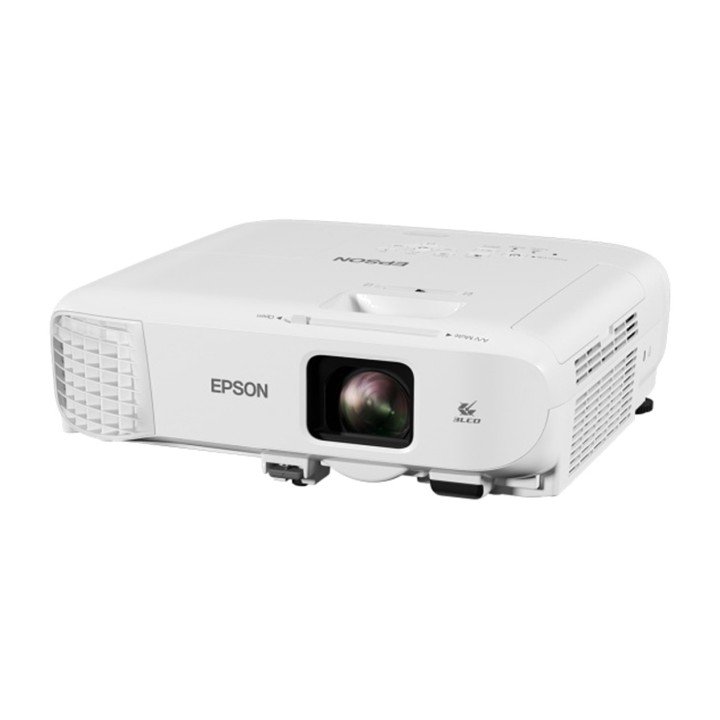

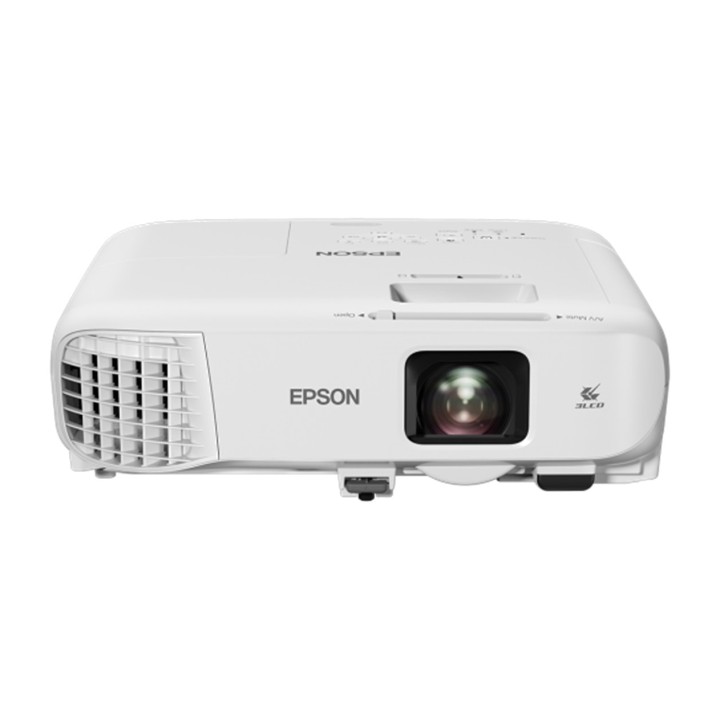

EPSON Portable presentation projector EB-X49 3LCD XGA 3600LM MGS0000001410

Compact screen with optional wireless connectivity
Combines the versatility of being placed virtually anywhere
with excellent brightness and sharpness, as well as high
performance with low maintenance.

High-quality bright images: 3LCD technology and white and color light output
Portable: Small and light enough to carry from one room to another and use
Wide range of connectivity options: Network-ready and compatible with
wireless connectivity Low total cost of ownership: Lamp life
wireless connectivity Low total cost of ownership: Service life of the
lamp life of up to 12,000 hours in eco mode
Versatile and flexible control: Projection from various sources with HDMI and
optional wireless connectivity

Projection system
3LCD technology, RGB liquid crystal shutter
LCD screen
0.55 inch with C2 Fine
Colour light output
3,600 Lumen- 2,400 Lumen (eco)
White light output
3,600 Lumen
RESOLUTION
XGA, 1024 x 768, 4:3
Aspect ratio
4:3
Native contrast
16.000 : 1
Light source
LAMP
LAMP
UHE, 210 W, 6,000 h durability, 12,000 h durability (eco mode)
Keystone correction
Automatic vertical: ± 30 °, Manual horizontal ± 30 °
Video processing
10 Bits
Vertical refresh rate 2D
100 Hz - 120 Hz
Colour reproduction
up to 1.07 billion colours
Projection ratio
1,48 - 1,77:1
ZOOM
Manual, Factor : 1,2
Projection lens zoom ratio
1 - 1,2 : 1
LENS
optical
Image size
30 inches - 300 inches
Projection lens F-number
1,49 - 1,72
Focal length
16,9 mm - 20,28 mm
Displacement
8 : 1
USB function
3-in-1: image / mouse / sound
Interfaces
USB 2.0 Type B, RS-232C, Ethernet interface (100 Base-TX/10 Base-T), LAN
wireless a/n (5GHz) (optional), VGA input (2x), VGA output, input
HDMI, composite input, Stereo mini-jack audio output, audio input
Stereo mini-jack audio (2x), Cinch audio input, USB 2.0 Type A
Epson iProjection app
Ad-Hoc / Infrastructure
Network protocols
PJLink
SECURITY
Kensington protection, security cable slot, drive lock
Wireless LAN
Colour modes 2D
Dynamic, Cinema, Presentation, sRGB, Blackboard
Characteristic
Sliding lens cover A/V mute, automatic keystone correction, speaker
built-in, digital zoom, direct power on/off, document camera
compatible, easy OSD screen setup, Keystone correction
vertical and horizontal, network projection, OSD copy function, PC Free,
Quick Corner, split screen function, iProjection app, iProjection
set up via NFC, iProjection configured via QR code
Colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre
Projector control
via: AMX, Crestron (network), Control4, Extron
Power consumption
327 watt, 225 watt (economy)
Supply voltage
AC 100 V - 240 V, 50 Hz - 60 Hz
Product dimensions
302 x 249 x 87 mm (width x depth x height)
WEIGHT
2,7 kg
Noise level
Normal: 37 dB (A) - Economy: 28 dB (A)
Temperature
Operation 5°C - 35°C, storage -10°C - 60°C
Air humidity
Operation 20% - 80%, storage 10% - 90%
Included software
iProjection
options
External speaker, Lightweight carrying case, Wireless LAN unit
Speakers
5 WATT
Includes
VGA cable, power cable, quick guide, remote control incl. batteries,
Warranty card Placement
Ceiling mount, Desktop
COLOR
WHITE
warranty
36 months workshop repair, lamp: 36 months or 1,000 h
Volume (m ³): 0.0207
