LANBERG Wall-mounted rack cabinet with glass door 10" 12U 280X310MM WF10-2312-10S DSP0000042395

Features of the Lanberg WF10 10" Wall-Mount 12U Rack Cabinet 280 x 310 mm Grey
The Lanberg WF10-2312-10S rack cabinet is a wall-mounted solution designed to organise and protect network equipment in professional or home IT installations. Its 10" format, 12U capacity and cold-rolled steel structure provide a compact, tidy and durable installation, with a glass front door and RAL7035 grey finish.
12U wall-mounted format for compact installations
With 12 height units and a 10" rack format, this cabinet makes efficient use of available space by being installed on a wall. Its dimensions of 280 x 310 x 603 mm make it easy to integrate into installations where network equipment needs to be kept organised without using a floor-standing cabinet.

Cabinet type: wall-mounted
Size: 10"
HEIGHT: 12U
Dimensions: 280 x 310 x 603 mm
Mounting depth: 238 mm
Maximum static load: 20 kg

Robust construction and glass front door

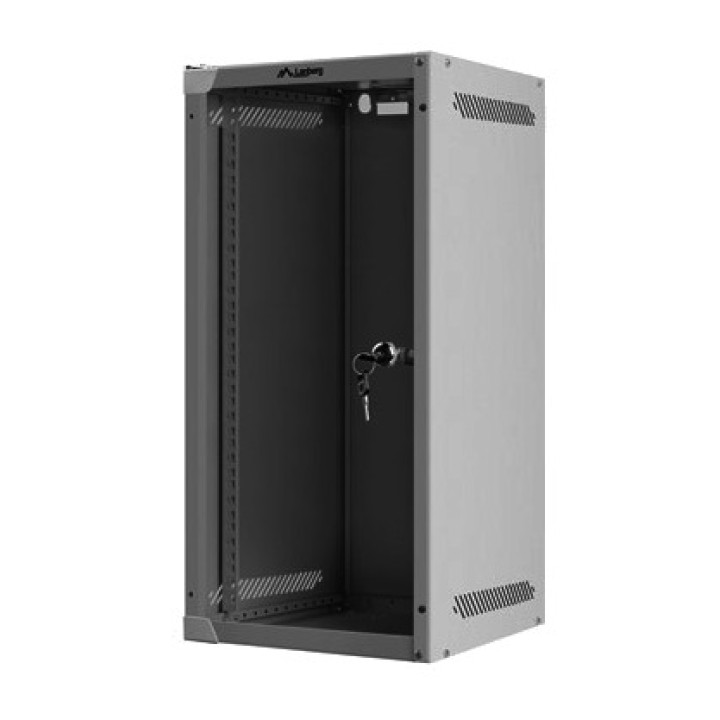

The cabinet is made of cold-rolled steel, providing a sturdy structure for housing the installation components. It features a single-leaf glass front door, which allows the interior to be viewed while keeping the equipment protected.

Front door: glass
Door type: single-panel
Front door thickness: 5 mm
Top and bottom panel thickness: 1 mm
Side panel thickness: 1 mm
Mounting rail thickness: 1.4 mm
Frame thickness: 1.1 mm
Thickness of other components: 1.1 mm

Flat Pack design for easy transport and assembly
The Lanberg WF10 is supplied in Flat Pack format for self-assembly. This configuration makes the cabinet easier to transport, especially when cargo space is limited, and allows it to be assembled directly at the installation site.

Assembly: self-assembly
Packaging format: Flat Pack
Includes mounting bracket
Includes screws M6
Weight: 9.68 kg

Ventilation for effective cooling

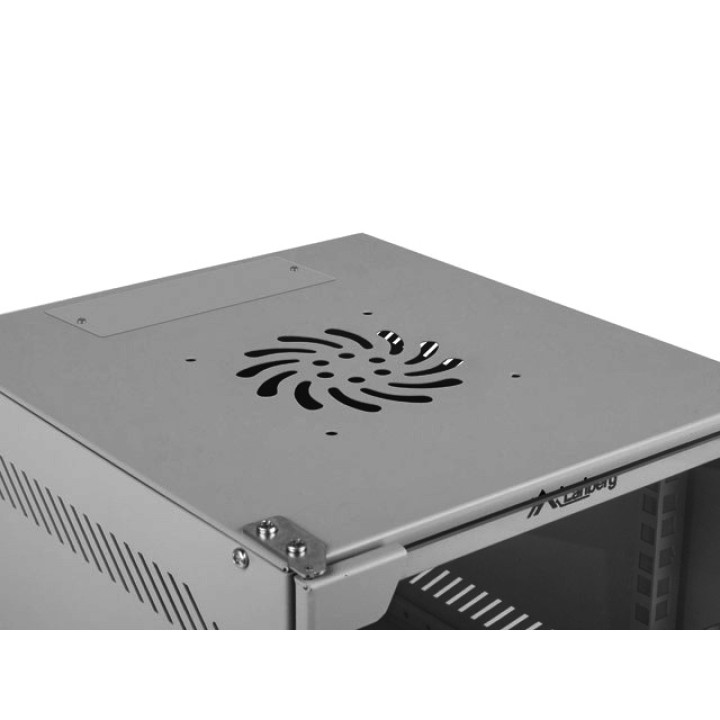

To promote suitable operating conditions for the installed equipment, the cabinet has space for a fan and a ventilation opening in the top panel. This configuration helps improve airflow inside and facilitates cooling of the network devices.

Number of fan slots : 1
Ventilation opening in the top panel
Thermostat: no
LCD panel: no

Installation organisation and expansion
The WF10 series is designed to facilitate an organised and adaptable network installation. The cabinet has 2 vertical rails and can be complemented with different types of accessories from the Lanberg range, allowing the configuration to be adapted to the requirements of the cabling and installed devices.

Number of vertical rails : 2
Compatible with bottom shelves from the corresponding range
Compatible with brush panels and cable managers from the corresponding range
Compatible with cooling accessories from the corresponding range
Compatible with Keystone panels and patch panels from the corresponding range
Compatible with PDUs and mounting support accessories from the corresponding range

Protection and professional finish
Its RAL7035 grey finish gives it a discreet appearance suitable for technical environments. The cabinet has an IP20 protection rating and features a front lock to control access to the equipment housed inside.

Gray
RAL colour: RAL7035
Protection rating: IP20
Front lock included

Standards and other specifications
The Lanberg WF10-2312-10S complies with various standards applicable to rack cabinets and structures, providing a defined configuration for installing compatible equipment.

Manufacturer code: WF10-2312-10S
Ean: 5901969424409
Warranty: 36 months
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, IEC297-2:1982
Included accessories: front lock, mounting bracket and screws M6
Volume (m ³): 0.0233
