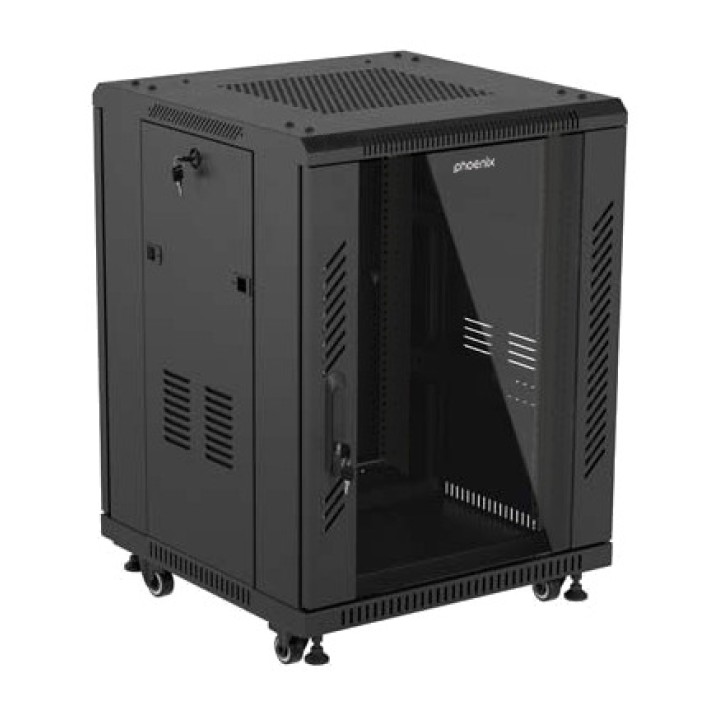

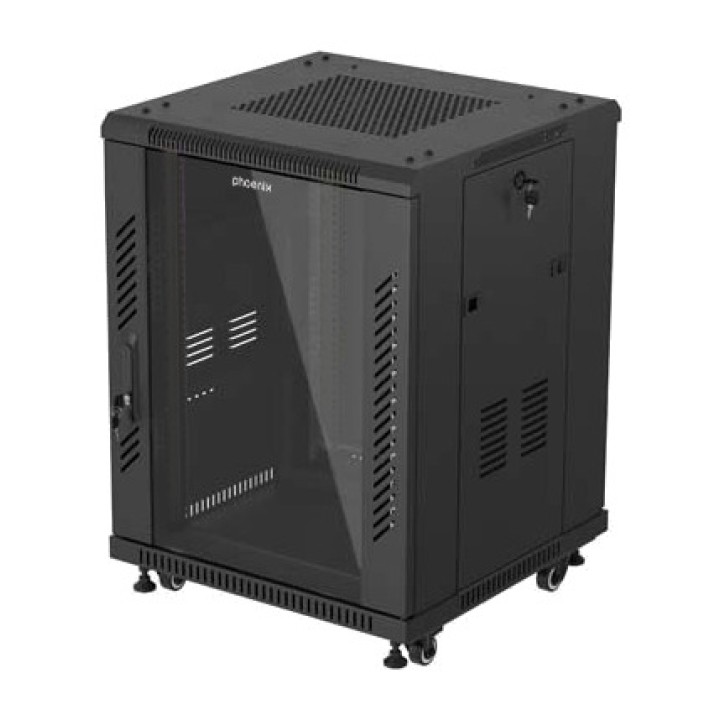

PHOENIX 19-inch floor-standing server rack cabinet 15U 600X600MM MAX-1000KG DSP0000041223

Features of the Phoenix Floor-Standing Cabinet x PHTN215U 15U 19"
The Phoenix PHTN215U Floor-Standing Cabinet is a professional floor-standing solution for medium-scale network and telecommunications installations. Its 15U capacity in the standard 19" format and 600 mm depth allow managed switches, patch panels, routers, rack-mounted UPS systems and storage equipment to be housed in a single cabinet with front and rear access.
Professional capacity for network infrastructures
With 15 rack units, the Phoenix PHTN215U provides sufficient space for organising communications, power and storage equipment. Its floor-standing installation and 600 mm depth make it a suitable choice for offices, educational institutions, shops, technical rooms and other professional installations.

15U capacity for rack equipment 19"

Dimensions: 600 × 600 mm in width and depth
Chassis height only (without accessories) 769 mm (76,9 cm) 769 mm (76,9 cm)
Height with Levelling Feet 842 mm (84.2 cm) 842 mm (84.2 cm)
Height with Castors 848 mm (84.8 cm) 848 mm (84.8 cm)
Usable internal height (15U) 666,75 mm (66,68 cm) 666,75 mm (66,68 cm)
Maximum load capacity of 800 to 1,000 kg

Robust SPCC steel construction
The cabinet is made of 2.0 mm thick cold-rolled SPCC steel, providing a sturdy structure to support installations with multiple pieces of equipment. Its powder-coated finish helps protect the surface, while its IP20 protection rating makes it suitable for indoor environments.

Cold-rolled SPCC steel

2.0 mm thickness
Black powder-coated finish
Protection rating IP20

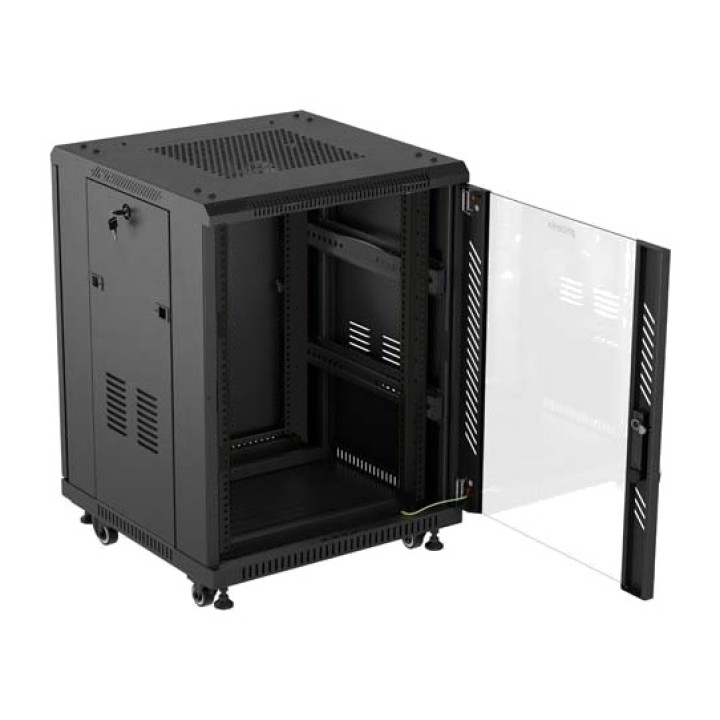

Double doors with front and rear access

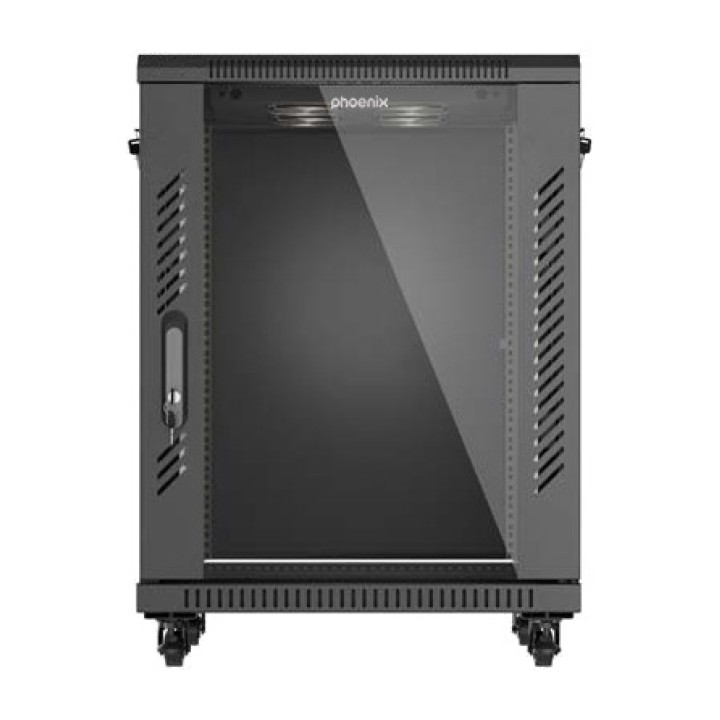

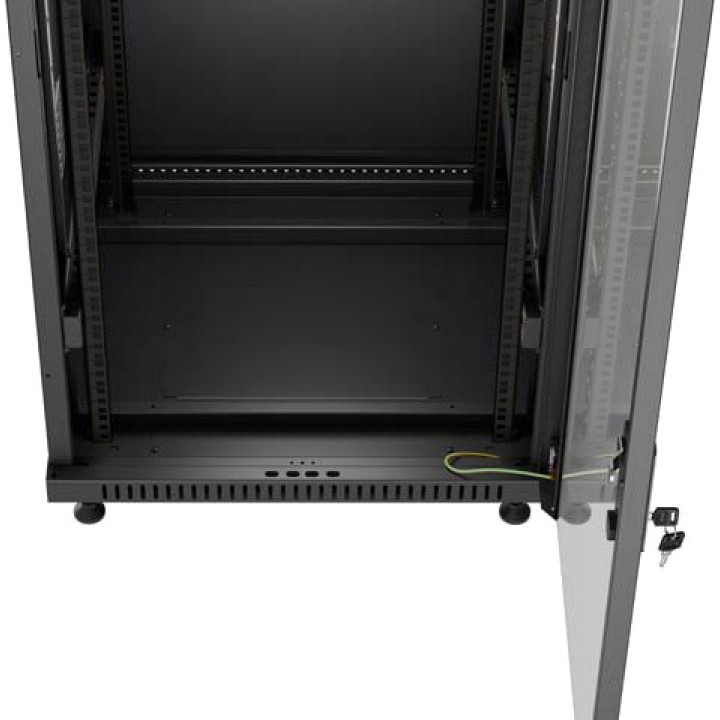

The Phoenix PHTN215U features a tempered-glass front door that allows the status of installed equipment to be checked visually. At the rear, it has a double-mesh steel door designed to promote airflow and provide easy access to connections.

Tempered glass front door

Steel rear door with double mesh
Doors open to more than 180°
Spring-loaded security locks

Active ventilation with four fans included

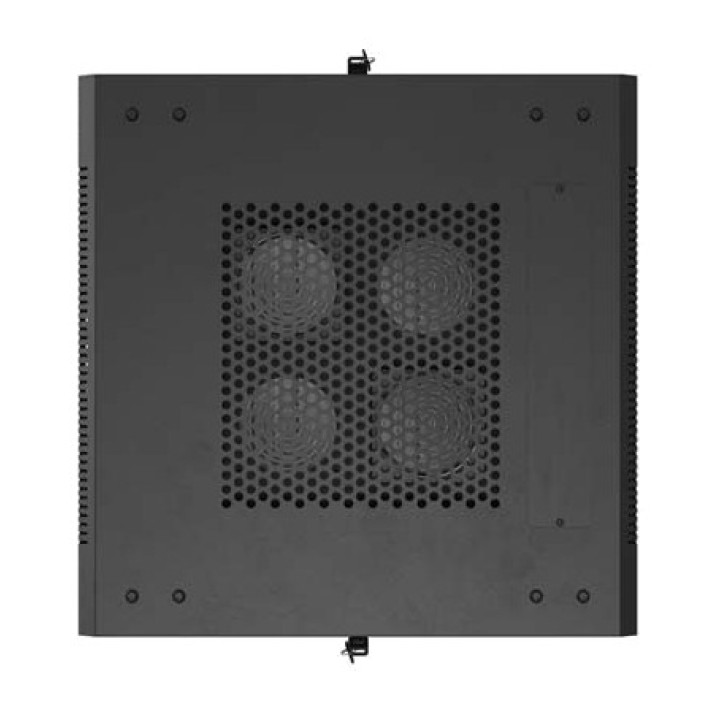

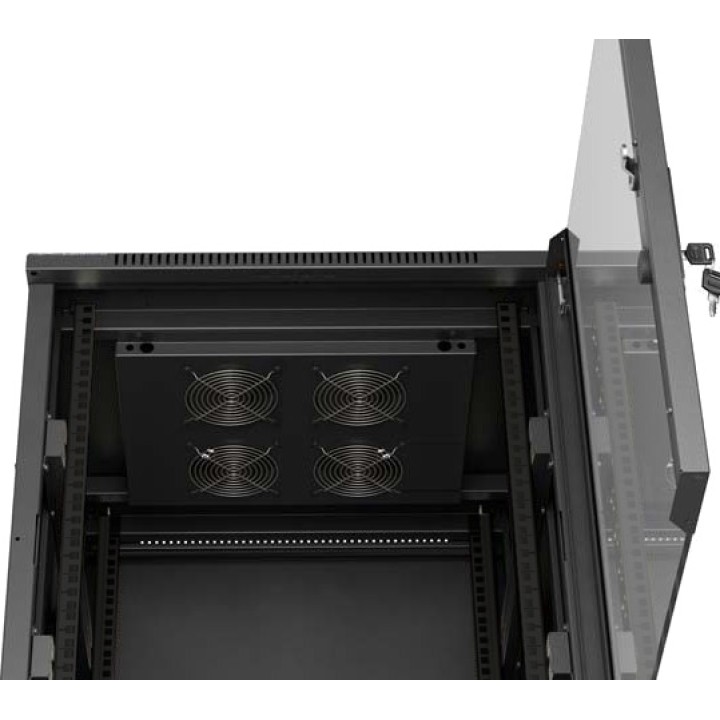

To maintain suitable thermal conditions, the cabinet includes four fans installed in the top panel. This active ventilation system helps remove the heat generated by switches, routers, power supply systems and other operating equipment.

4 fans included in the top cover

Active thermal management system
Double-mesh rear door to promote airflow

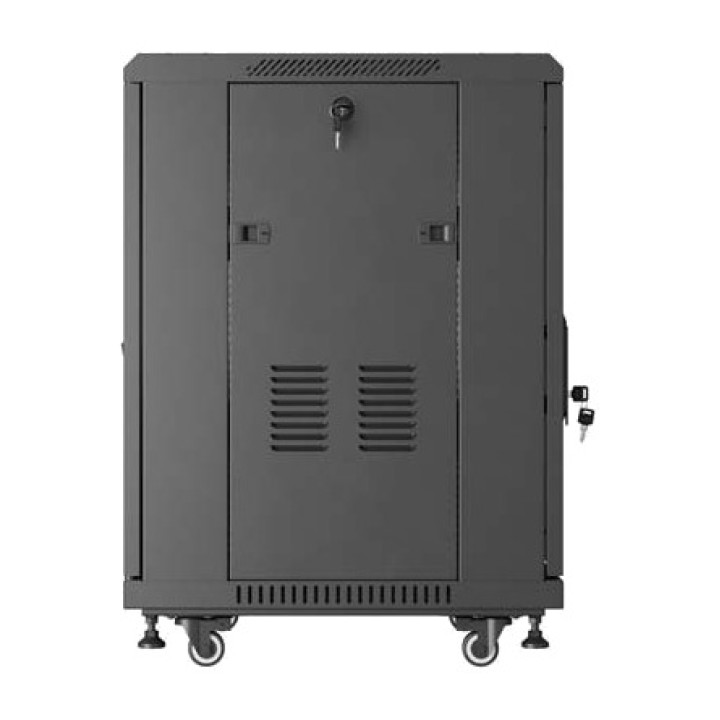

Removable side panels with locks
The removable side panels provide convenient access to the interior during assembly, cable connections and maintenance. Their security locks help protect the installed equipment and restrict access to the inside of the cabinet.

Removable side panels

Side security locks
Easy access for installation and maintenance

Flexible and orderly cable management
The cabinet has cable entry holes in the top, bottom and rear panels. This layout allows the entry and exit points for network and power cables to be adapted to each installation, making it easier to keep the cabling neat and accessible.

Cable entry in the top panel

Cable entry in the bottom panel
Cable entry in the rear panel

Mobility and levelling for a stable installation
The Phoenix PHTN215U includes four braked castors for easy movement during assembly or maintenance. It also features four M12 levelling feet, designed to adjust the cabinet's stability once it is in its final location.

4 castors with brakes included

4 levelling feet M12
Floor installation

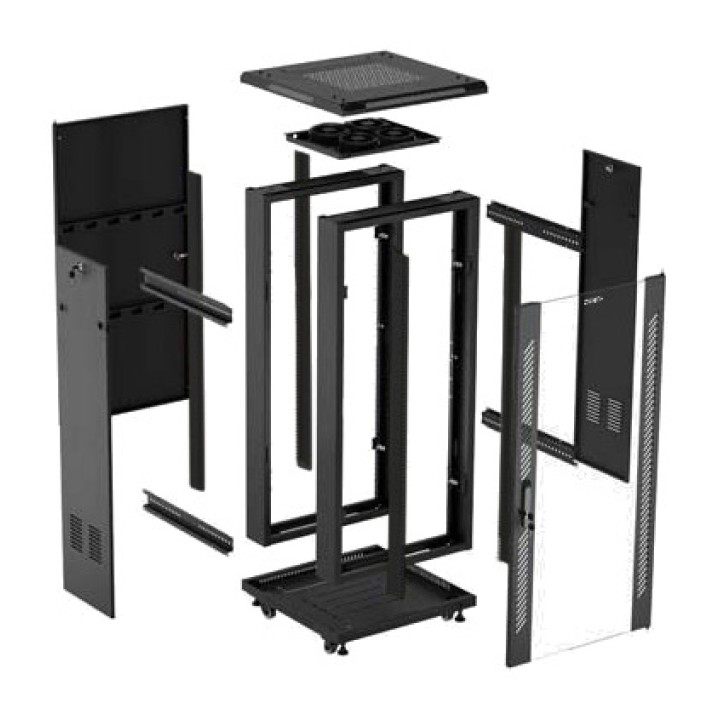

Supplied disassembled with accessories included
The cabinet is delivered disassembled in flat-pack packaging, making it easier to transport and store. The package includes the components required to complete assembly, install the equipment and make the earth connections.

Front, rear and side locks

4 levelling feet M12
4 castors with brakes
4 fans
40 screws and nuts M6

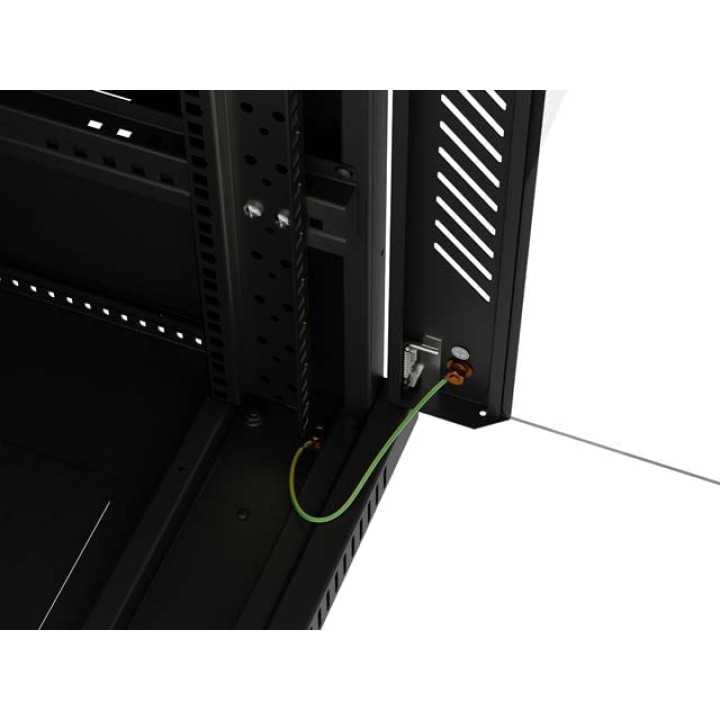

Grounding cables

Other specifications

Phoenix reference: PHTN215U

EAN Code: 8436626132528
Rack units: 15U
Format: standard 19"
Width and depth dimensions: 600 × 600 mm
Load capacity: 800 to 1,000 kg
Material: 2.0 mm cold-rolled SPCC steel
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: tempered glass, opens more than 180° and has a spring-loaded security lock
Rear door: double-mesh steel, opens more than 180° and has a spring-loaded security lock
Side panels: removable with lock
Ventilation: 4 fans included in the top panel
Cable openings: top, bottom and rear panels
Mounting: floor
Supply: disassembled in flat-pack packaging
Certifications: CE and RoHS
Applicable standards: ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI e IEC 297-2:1982
Volume (m ³): 0.2377
