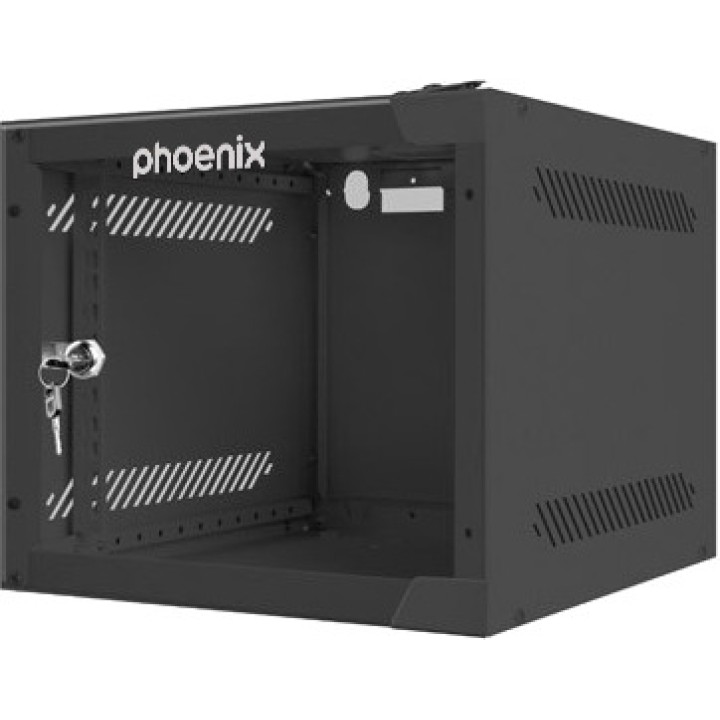

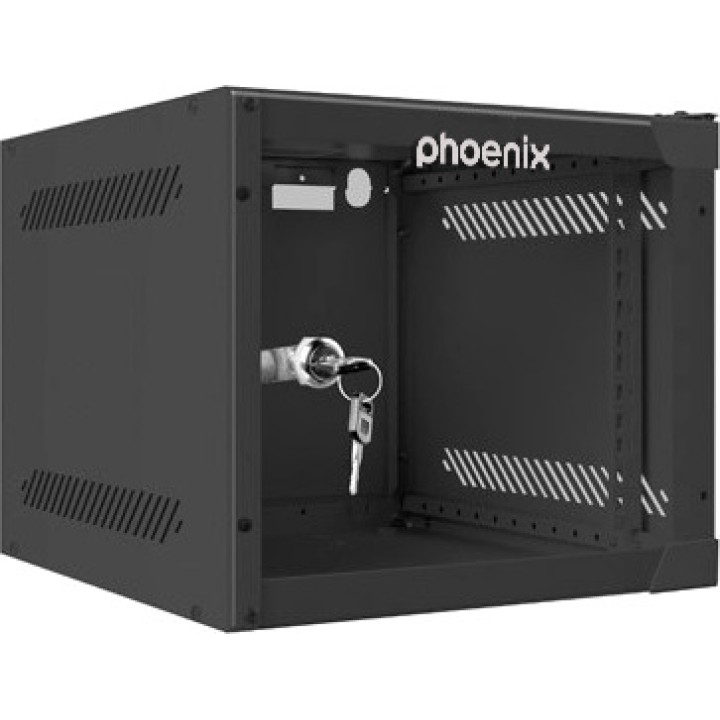

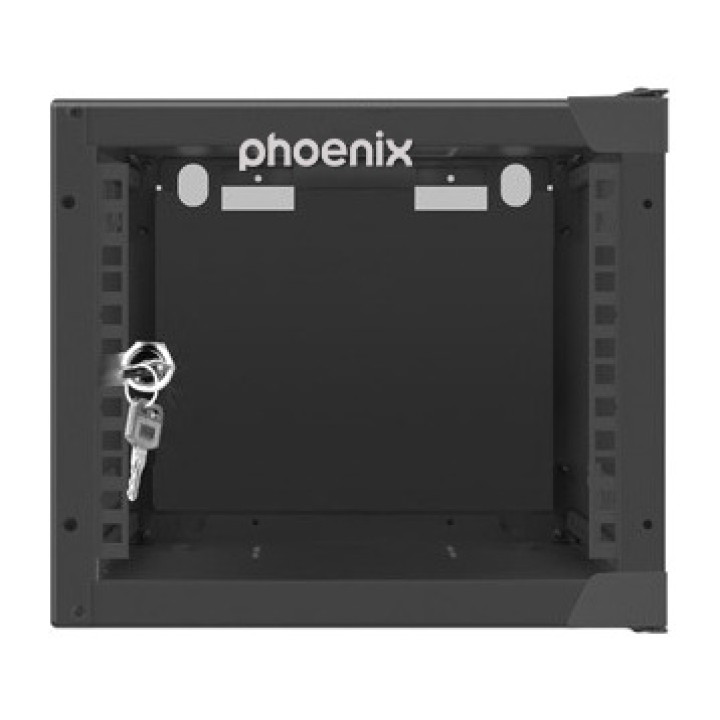

PHOENIX 10-inch wall-mount rack cabinet 4U 280X310X247MM MAX-20KG DSP0000041216

Features of the Phoeni Wall-Mount Cabinet x PHTN104U 4U 10"
The Phoenix PHTN104U Wall-Mount Cabinet is the most compact solution in the range for organising and protecting small network devices. At just 280 mm wide, with 4U of usable space, it allows 10" format equipment to be installed without taking up floor space, making it particularly suitable for homes, small offices and secondary network points.
Compact format for installations with limited space
Its 4U wall-mount design in 10" format makes it possible to create an organised network installation even in locations with very little space available. Its capacity is suitable for housing a switch with up to 8 ports in 10" format, a patch panel and the cabling required for basic infrastructure.

4U capacity for rack equipment of 10"
Compact width of 280 mm
Dimensions of 280 × 310 × 247 mm
Wall mounting without taking up floor space

Sturdy construction and protection IP20
The Phoenix PHTN104U is made of cold-rolled steel, providing a sturdy structure to protect the installed devices. Its black powder-coated finish improves surface durability, while the IP20 protection rating makes it suitable for indoor installations.

Cold-rolled steel structure
Powder-coated finish
COLOR BLACK
Protection rating IP20
Maximum load capacity of 20 kg

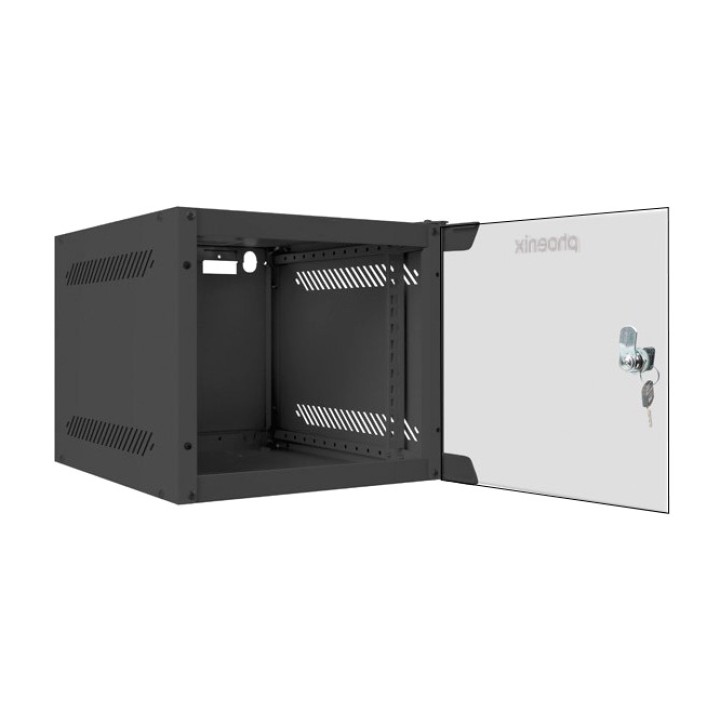

Tempered glass front door with lock
The front door is made of 5 mm tempered glass, allowing the installed equipment to be checked visually without opening the cabinet. Its opening angle of over 180° facilitates access during installation and maintenance, while the key lock helps prevent unauthorised access.

5 mm tempered glass front door
Opening angle of over 180°
Front lock with key
Convenient access to installed equipment

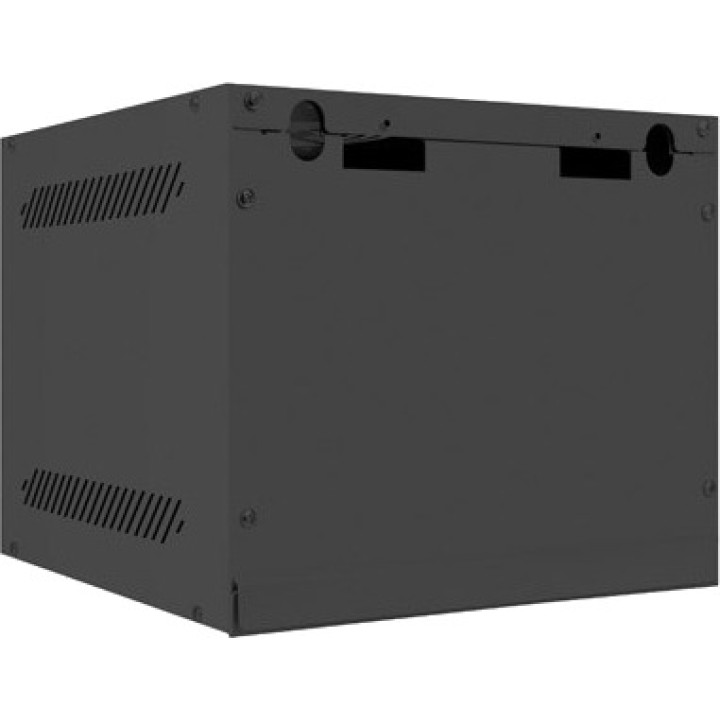

Cable entries for an orderly installation
The cabinet has cable routing holes in multiple positions, making it easier to route network and power connections in and out. This configuration allows the cabling to be adapted to the requirements of each installation and keeps the interior organised.

Cable entry holes in several positions
Flexible cable routing
Suitable for basic network installations

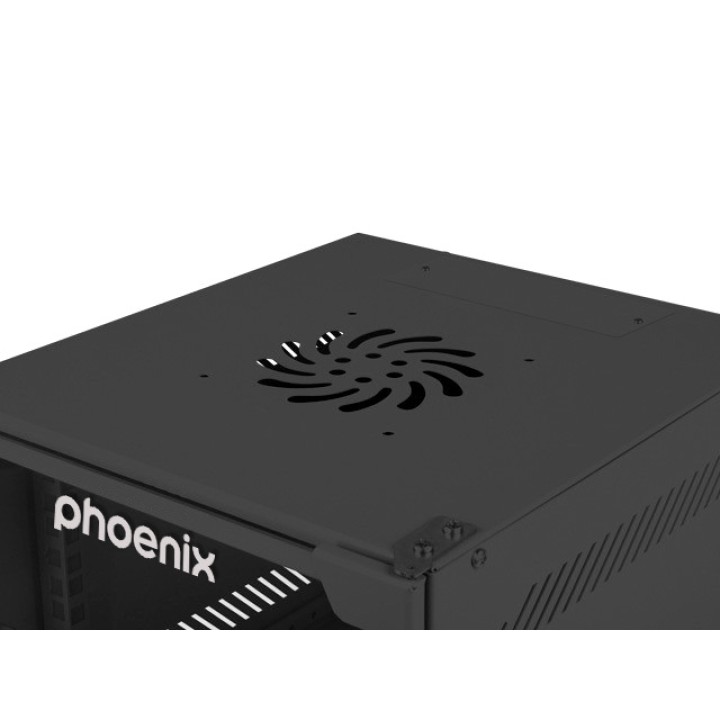

Ready for active ventilation
The top panel has an opening for a fan, allowing active ventilation to be added if required by the internal temperature or the installed equipment. This option helps improve air circulation inside the cabinet.

1 fan opening in the top cover
Designed to improve air circulation
Fan not specified among the included accessories

Supplied disassembled with mounting accessories
The Phoenix PHTN104U is supplied disassembled in Flat Pack format, making it easy to transport and store. It includes the front lock, the screws and nuts for installing equipment in the rack, and the components needed to secure the cabinet to the wall.

Front lock with key
10 screws and nuts M6
Wall-mounting hardware
Supplied disassembled in flat-pack packaging

Other specifications

Phoenix reference: PHTN104U
EAN Code: 8436626132559
Rack units: 4U
Format: compact 10"
Dimensions: 280 × 310 × 247 mm
Load capacity: 20 kg
Material: Cold-rolled steel
Finish: Powder coating
Protection: IP20
COLOUR: BLACK
Front door: 5 mm tempered glass, opens to over 180° and locks with a key
Cable openings: multiple positions
Ventilation: 1 fan opening in the top panel
Mounting: wall-mounted
Supply: disassembled in flat-pack packaging
Certifications: CE and RoHS
Applicable standards: ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI e IEC 297-2:1982
Volume (m ³): 0.0133
