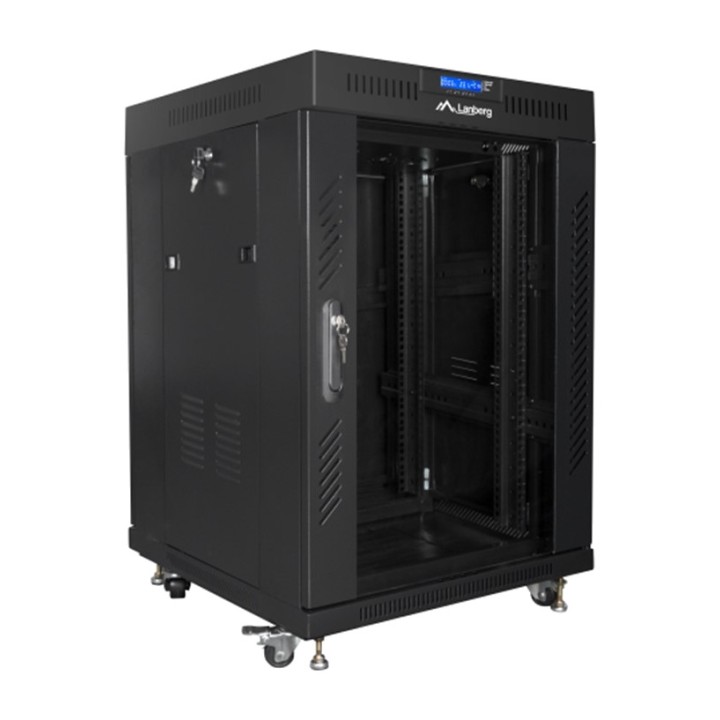

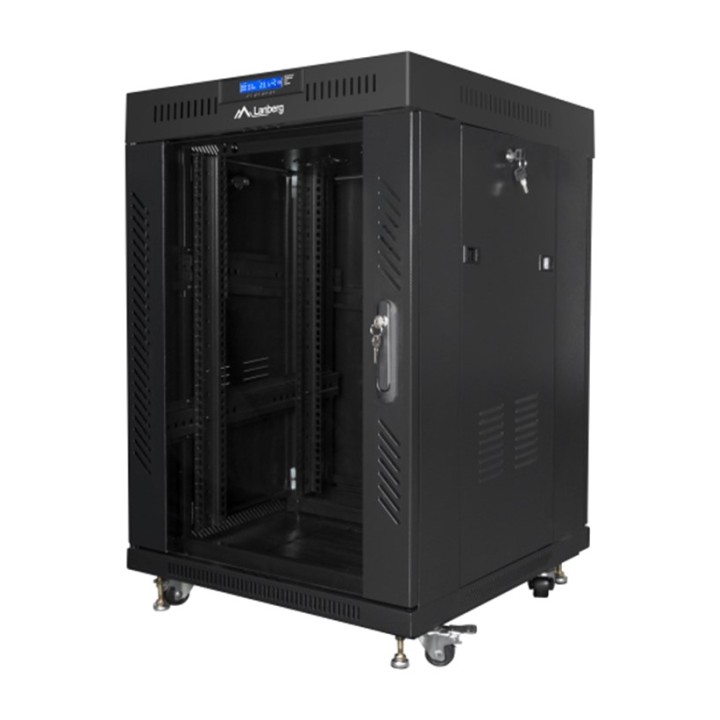

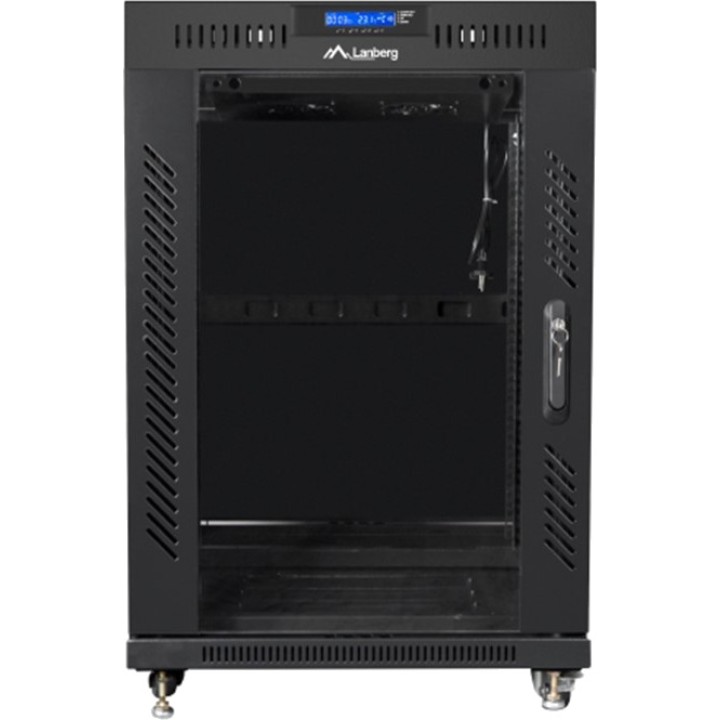

LANBERG Floor-standing rack cabinet with glass door and LCD display 19" 15U 600X600MM FF01-6615-12 DSP0000019376VAR

Features of the Lanberg FF01-6615-12SL 19" 15U 600 x 600 mm Grey Rack Cabinet with Glass Door and LCD Panel
The Lanberg FF01-6615-12SL rack cabinet is a freestanding 19" 15U solution designed to install and organise network equipment, servers and other devices compatible with this format. Its steel structure, static load capacity of up to 1200 kg, LCD panel with thermostat and included ventilation system make it possible to create an organised, stable IT installation that is ready to manage the cabinet’s internal conditions.
19" rack format with 15U capacity
Its 19" configuration and 15 height units provide space for integrating various IT infrastructure equipment and accessories. It has four vertical rails and an adjustable mounting depth, making it easy to accommodate devices with different dimensions.

FORMAT: 19"
Usable height: 15U
Number of vertical rails : 4
Mounting depth: 150 to 410 mm
Maximum mounting depth: 410 mm

Robust structure with a load capacity of up to 1200 kg
The cabinet is made of cold-rolled steel and components of different thicknesses to reinforce the main structural points. This construction supports a maximum static load of 1200 kg, providing a suitable base for installations with a large amount of equipment.

Maximum static load: 1200 kg
Frame thickness: 1,5 mm
Mounting rail thickness: 2 mm
Top and bottom panel thickness: 1,5 mm
Side panel thickness: 1,2 mm
Thickness of other components: 1,3 mm

Glass front door and metal rear access door
The 5 mm glass front door allows you to view the installed equipment without opening the cabinet. It has a single leaf and can open to an angle of up to 180°. At the rear, it features a 1 mm thick metal door for easy access to the wiring and internal components.

Front door: glass
Front door thickness: 5 mm
Rear door: metal
Rear door thickness: 1 mm
Door type: single-panel
Maximum front opening angle: 180°

LCD panel with thermostat for ventilation control
The integrated LCD panel makes it easy to control operating conditions inside the rack. It features a thermostat and timer, and also allows you to control the fans manually and set the temperature at which they start operating.

Integrated LCD panel
Thermostat included
Timer
Manual fan control
Ventilation activation temperature adjustment

Ventilation system included
The top of the cabinet is designed to promote air circulation and heat dissipation. The product includes a ventilation panel equipped with two fans, helping to maintain suitable conditions for the installed devices.

Number of fan spaces : 2
Ventilation panel included
2 fans included
Control via thermostat and LCD panel

Flat Pack design for easy transport and assembly
The Lanberg FF01-6615-12SL is supplied in Flat Pack format for self-assembly. This configuration reduces the volume required during transport and allows the disassembled cabinet to be moved to its final installation location before assembly.

Mounting type: for assembly
Packaging format: Flat Pack
Cabinet type: freestanding
Wheels with brakes included
Feet included

Grounding for a safer installation
The cabinet features grounding connections on the frame and doors, together with the corresponding ground wire. This configuration contributes to the proper electrical installation of the equipment housed in the rack.

Frame grounding
Main door grounding
Rear door grounding
Ground cable included

Dimensions and finish
With external dimensions of 600 x 600 x 922 mm, this rack offers a compact configuration in its 15U category. It features a RAL7035 grey finish and an IP20 protection rating.

WIDTH: 600 MM
Depth: 600 mm
Total height: 922 mm
Height without wheels: 819 mm
Weight: 60kg
Gray
RAL colour: RAL7035
Protection rating: IP20

Included accessories
The cabinet is supplied with the main components required to complete its assembly and commissioning, including mobility components, locks, ventilation, a thermostat and fasteners.

Ground wire
Front lock
Rear lock
Side locks
Ventilation panel with 2 fans
Feet
Wheels with brakes
Thermostat
Screws M6

Compatibility with accessories for rack installations
The FF01 series can be complemented with accessories designed to organize, expand and manage the installed infrastructure, such as shelves, cable organizers, panels, ventilation systems or power distribution units.

Universal, fixed, side-mounted and pull-out shelves
Cable organizers and management panels
Brush panels and covers
Ventilation panels and thermostats
Patch panels and keystone panels
PDU power strips
Accessories and tools to support installation

Other specifications
The Lanberg FF01-6615-12SL is designed in accordance with various standards used in telecommunications installations and rack equipment, and comes with a stated 36-month warranty.

Manufacturer code: FF01-6615-12SL
Ean: 5901969441116
Warranty: 36 months
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Volume (m ³): 0.2453
Volume (m ³): 0.2508
