LANBERG Wall-mounted rack cabinet with glass door 19" 9U 600X450MM WF01-6409-10 DSP0000001346VAR

Features of the Lanberg WF01 19" Wall-Mount Rack Cabinet 9U 600x450 Grey V2
The Lanberg WF01-6409-10S rack cabinet is a 19" wall-mount solution designed to organise and protect network equipment and ICT infrastructure in professional installations, offices or home environments. It offers 9U of capacity, a robust steel structure, a glass front door and a maximum static load of 60 kg, combining easy access, protection and an orderly installation.
19" wall-mount format with a capacity of 9U
Its format is designed for wall installations where making the most of the available space is important. The cabinet has 9U and four vertical rails, as well as a mounting depth of 392.5 mm to accommodate compatible equipment.

Cabinet type: wall-mounted
FORMAT: 19"
Usable height: 9U
Mounting depth: 392.5 mm
Number of vertical rails : 4
Maximum static load: 60 kg

Robust construction and glass front door

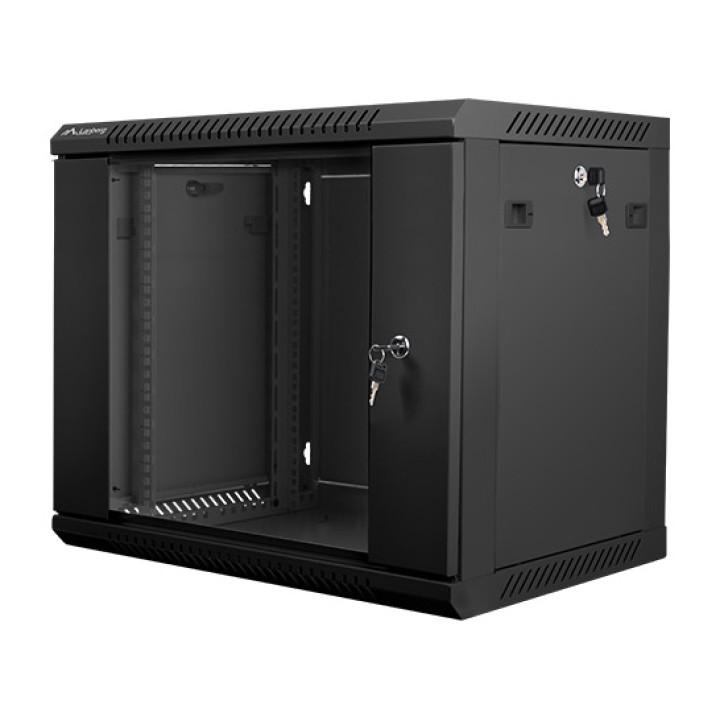

The cabinet is made of cold-rolled steel, with different thicknesses for each structural element, providing a sturdy construction for storing equipment. It features a single-leaf front door made of 5 mm glass and a front lock to protect the interior.

Front door: 5 mm glass
Door type: single-panel
Rear panel thickness: 1 mm
Top and bottom panel thickness: 1.2 mm
Side panel thickness: 1 mm
Mounting rail thickness: 1.5 mm
Frame thickness: 1.2 mm
Thickness of other elements: 1.2 mm

Ventilation designed for efficient cooling

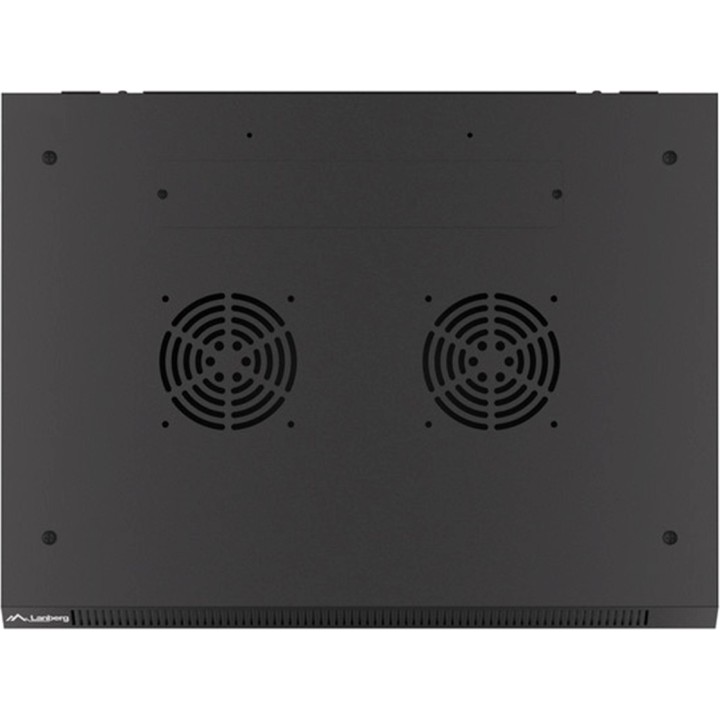

To ensure suitable operating conditions for the installed devices, the Lanberg WF01 has two spaces for fans located on the top panel. This configuration facilitates airflow and allows the cabinet to be supplemented with compatible cooling accessories when required by the installation.

Number of fan slots : 2
Integrated thermostat: no
LCD panel: no

Flat Pack design for easy transport and assembly
This model is supplied in Flat Pack format for self-assembly, a solution that makes it easier to transport when cargo space is limited. It includes the components required for assembly and comes with assembly instructions.

Assembly: self-assembly
Supply format: flat pack
Assembly hardware set included
Mounting bracket included
M6 screws included
Operating instructions included

Ready to organise a network infrastructure
The Lanberg WF01 series allows the installation to be supplemented with accessories for organisation, power distribution, connectivity and cooling. Options available for the range include shelves, cable managers, panels, PDU power strips and various ventilation solutions.

Compatible with RACK cabinet accessories
Cable management options
Universal, side-mounted and pull-out shelves available in the range
Patch panels and keystone panels available in the range
Cooling options using ventilation panels and thermostats
PDU power strips available as an accessory

Dimensions, finish and protection
With dimensions of 600 mm wide, 450 mm deep and 512.35 mm high, this cabinet features a grey RAL7035 finish suitable for ICT installations. It also has an IP20 protection rating.

WIDTH: 600 MM
Depth: 450 mm
Height: 512.35 mm
Weight: 18kg
Gray
RAL colour: RAL7035
Protection rating: IP20

Grounding and included accessories
The cabinet includes components designed to facilitate a complete and safe installation, including a ground wire, front lock and side latches. Grounding covers the bottom panel and the main door.

Ground connection: bottom panel and front door
Ground cable included
Front lock included
Side latches included
Assembly hardware set
Mounting bracket
Screws M6

Standards and other specifications
The Lanberg WF01-6409-10S has been designed in accordance with various standards used in rack and telecommunications equipment installations, providing a standardised basis for integrating compatible devices.

Manufacturer code: WF01-6409-10S
Ean: 5901969403107
Warranty: 36 months
Standards : ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Volume (m ³): 0.0784
Volume (m ³): 0.0772
