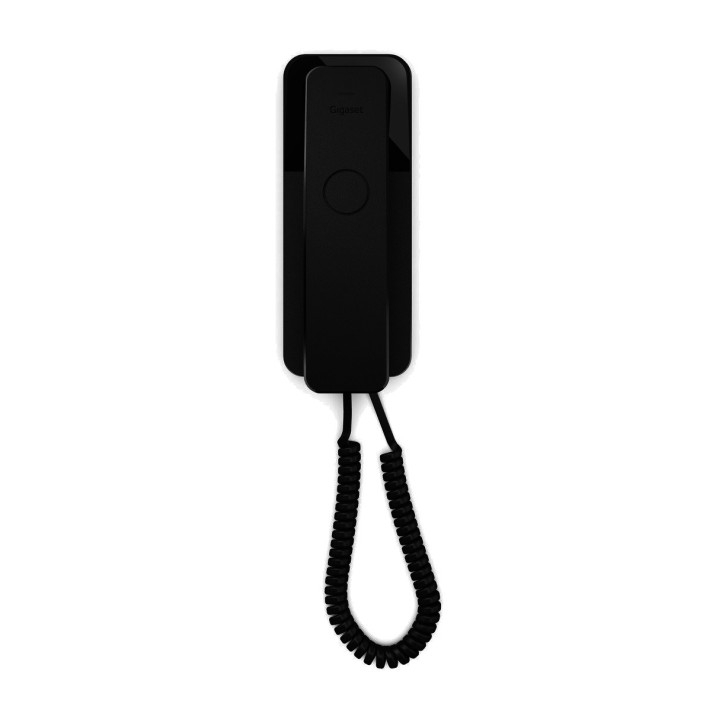

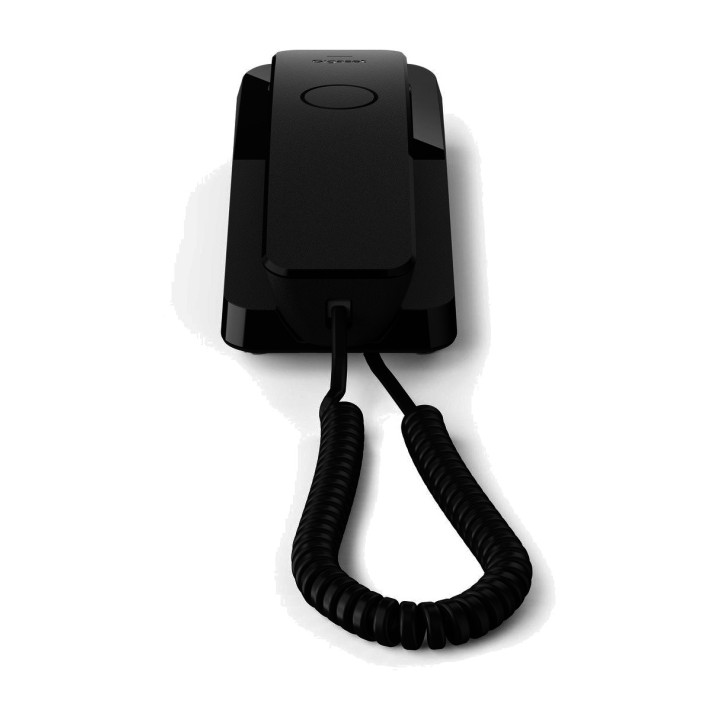

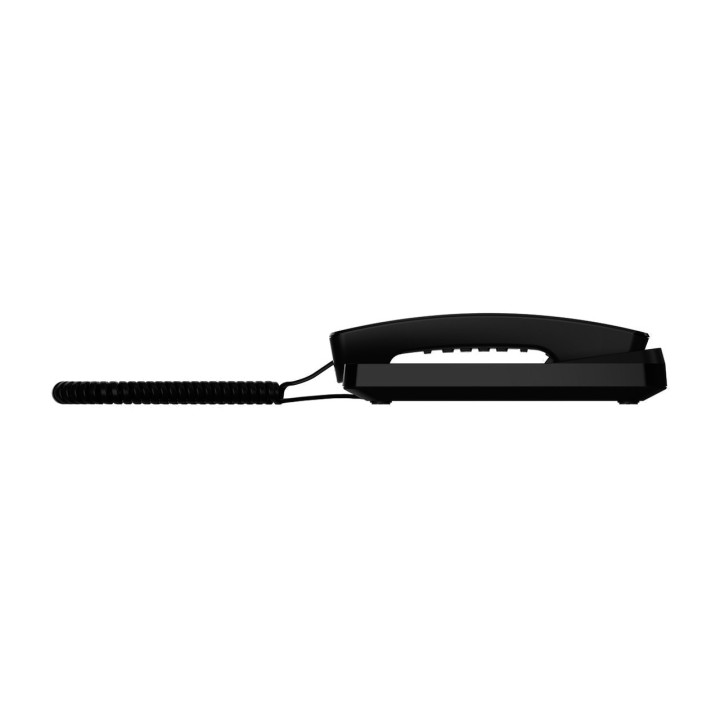

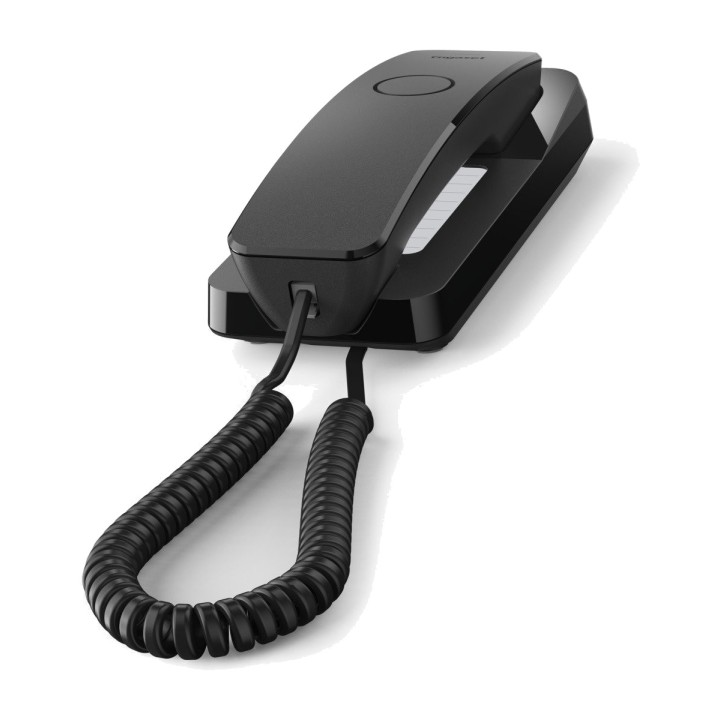

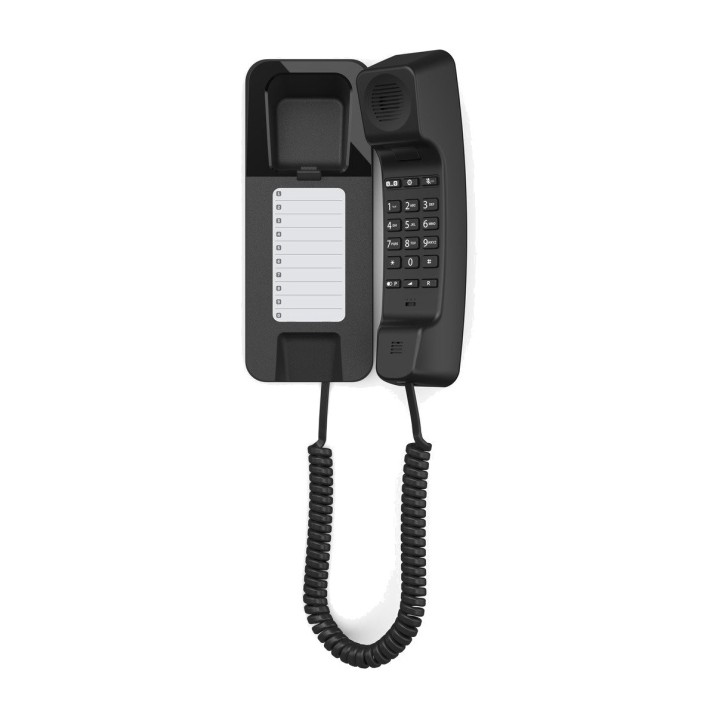

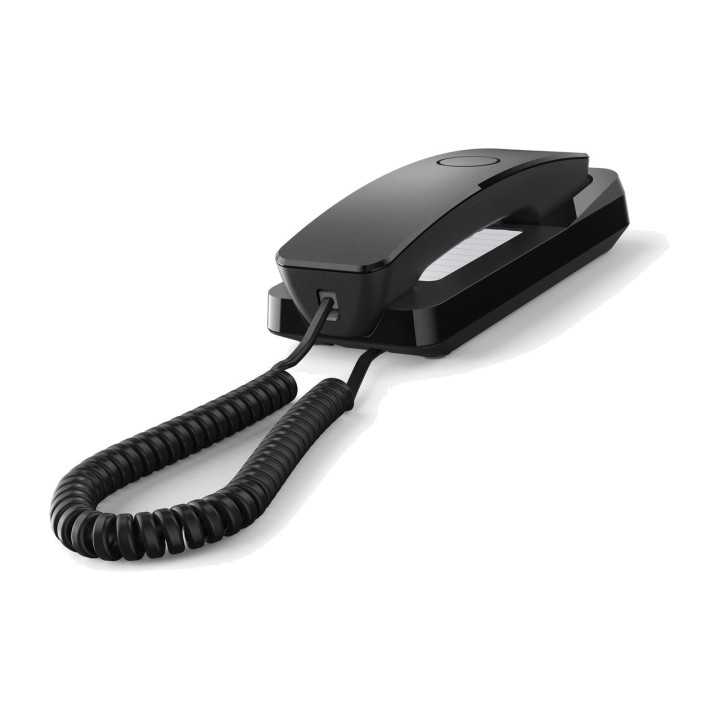

GIGASET Corded desktop and wall-mounted landline telephone DESK-200 MGS0000015924VAR

The space-saving corded desktop and wall-mounted telephone
Saves space thanks to its particularly narrow design

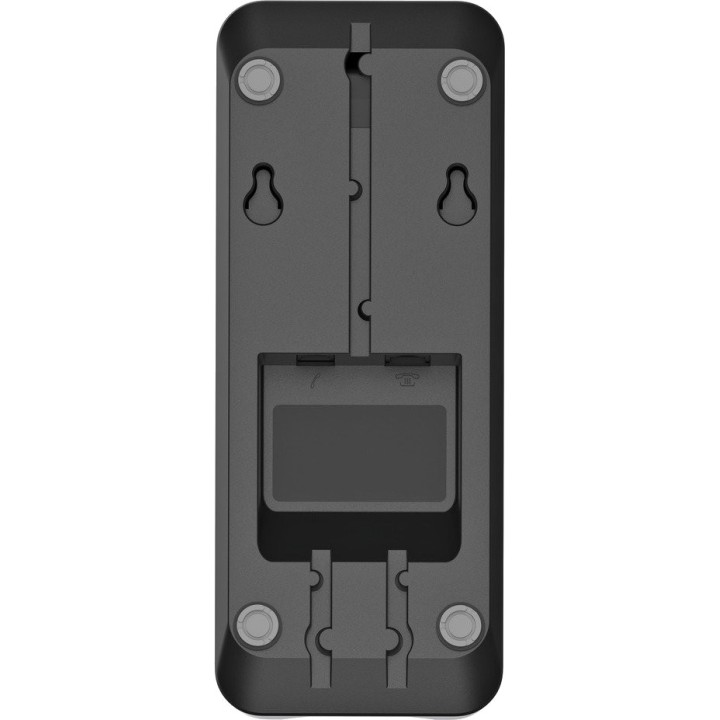

Easy wall mounting
Powered via the telephone line, no separate power supply required
Ten speed-dial keys
Hearing aid compatible
Redial
Call indication via LED
Suitable for use with telephone systems
Adjustable pulse / DTMF dialling
Adjustable flash function.
Compact, wall-mountable and corded: the phone with all the essential features
The Gigaset DESK 200 combines the most important telephony functions with an especially slim and compact design. It is therefore suitable as a space-saving desk phone or,
alternatively, it can be mounted on the wall quickly and easily. The Gigaset DESK 200 can be connected to the landline network or used as part of an internal telephone network at home or in the office.
Power supplied via the telephone line
The Gigaset DESK 200 does not require a separate power supply; power is supplied directly via the telephone line. This makes setup particularly
simple: connect the Gigaset DESK 200 to the telephone socket (public network, private branch exchange or gateway) and the phone is ready to use.
Visual and audible call signalling
The ringtone and volume of the Gigaset DESK 200 can be adjusted easily. Three different ringtones are available, each with three volume levels. In addition, the
visual call signalling via the handset LED helps ensure that no call is missed, even in particularly noisy environments. If you want some peace and quiet, you can also
switch off the ringtone. In that case, incoming calls are indicated visually only.
Quick dialling
Up to ten phone numbers can be stored as speed-dial numbers, allowing you to quickly reach the people you speak to frequently. The speed-dial numbers
are written on the enclosed paper insert and are therefore always close at hand. The convenient redial function lets you immediately call the last number again at the touch of a button. Need
to speak to someone in the room without the person on the other end of the line hearing you? Put the call on hold and press the mute key. You will then no longer be heard over the
phone. Another important feature for anyone with hearing difficulties: the Gigaset DESK 200 is hearing-aid compatible.
Dialling
The DESK 200 is suitable for connection to both the landline network and telephone systems. It supports the two standard dialling methods, offering maximum flexibility for
analogue telephone connection.

Pulse dialling (IWV)
Dual-tone multi-frequency dialling (DTMF)
Depending on the telephone system, it may be necessary to change the dialling method or the phone’s flash time. A slide switch on the DESK 200 handset lets you simply set the
desired dialling method.
specs
general
Gigaset product name DESK 200
Audio
Ringtone With adjustable volume (3 levels)
Handset volume Adjustable handset volume (2 levels)
Hearing aid support Yes
Keyboard
Keys 10 number keys, volume control key, mute key, redial key, menu access key
Functions: Programmable speed-dial keys (keys 0-9), selectable timed opening via switch
FUNCTIONS
Wall mounting Yes
Desktop use Yes
On-screen signalling and indications
LED notifications for incoming calls on the handset
Ringtones 3 preset signal tones
Dialling
Dialling methods DTMF - Dual-tone multi-frequency dialling, decadic pulse dialling
Redial A number of up to 32 digits
Feeding
Power adapter Power is supplied solely via the telephone line. No additional power supply is required, so calls can be made even
in the event of a power cut
Connectivity
Analogue connection interface: Connection to an external telephone line (a/b) Yes
Connection type Analogue
Compatible with private telephone networks Yes
WEIGHT AND DIMENSIONS
Desktop base: H x W x D in mm 57 x 80 x 208
Desktop base: Weight in g 352
Telephone handset: H x W x D in mm 47 x 51 x 197
Telephone handset: Weight in g 144
Handset cable: Weight in g 38
SUPPLY
Package contents: 1x desktop unit, 1x telephone line connection cable, 1x coiled handset cable, 1x quick-start guide
Volume (m ³): 0.0017
