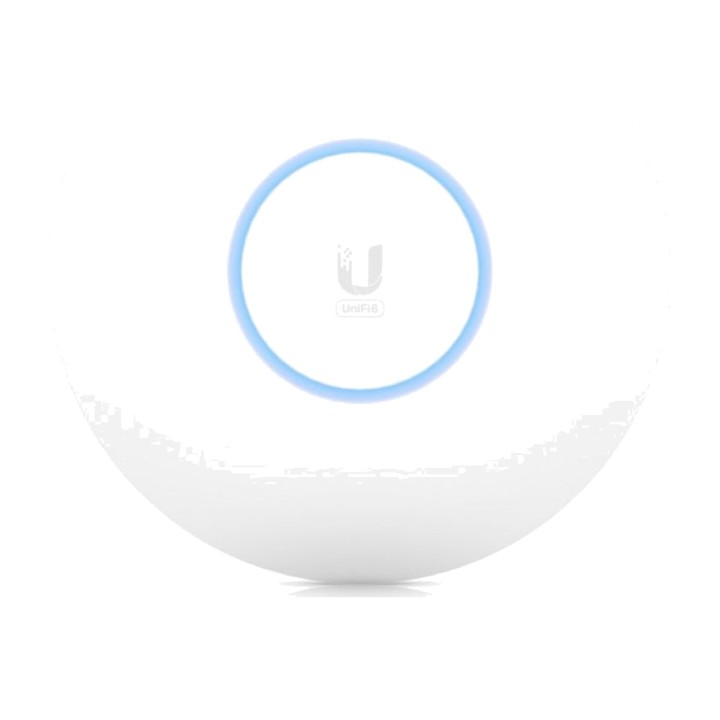

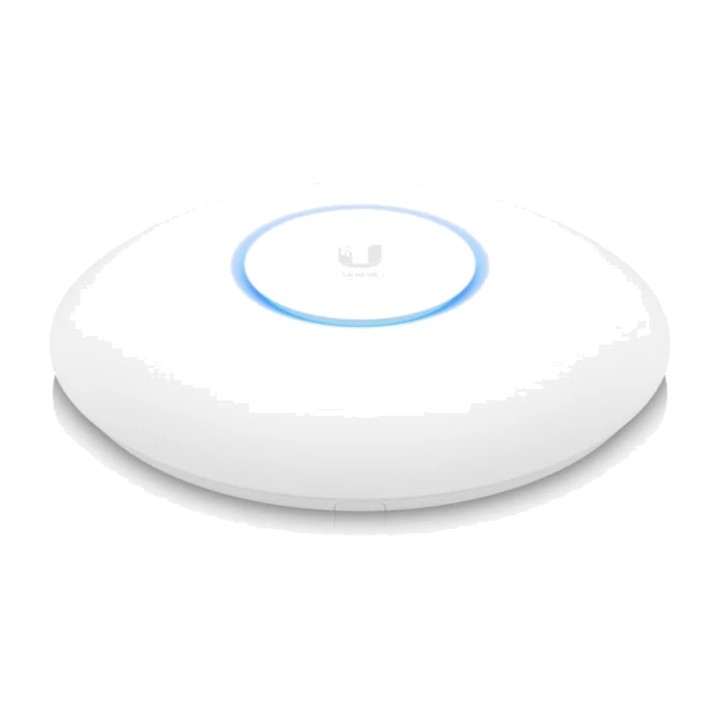

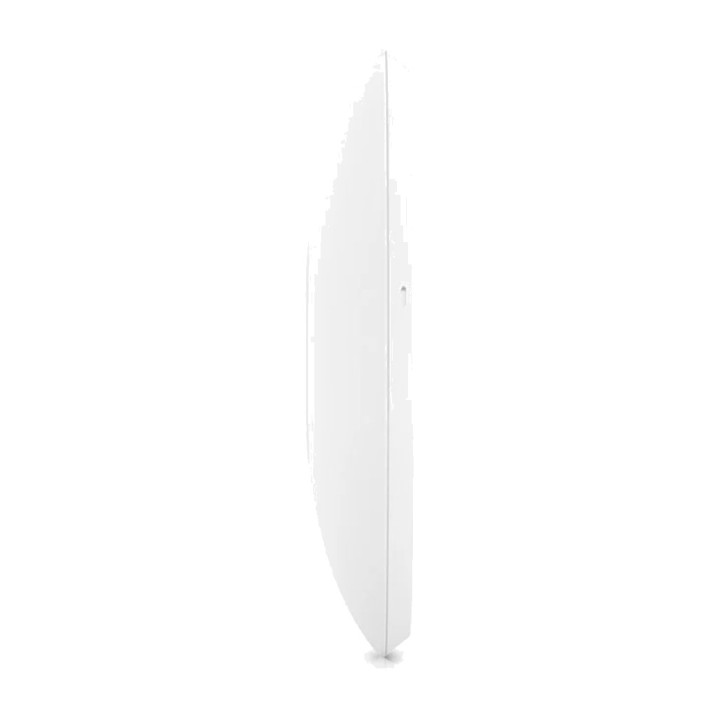

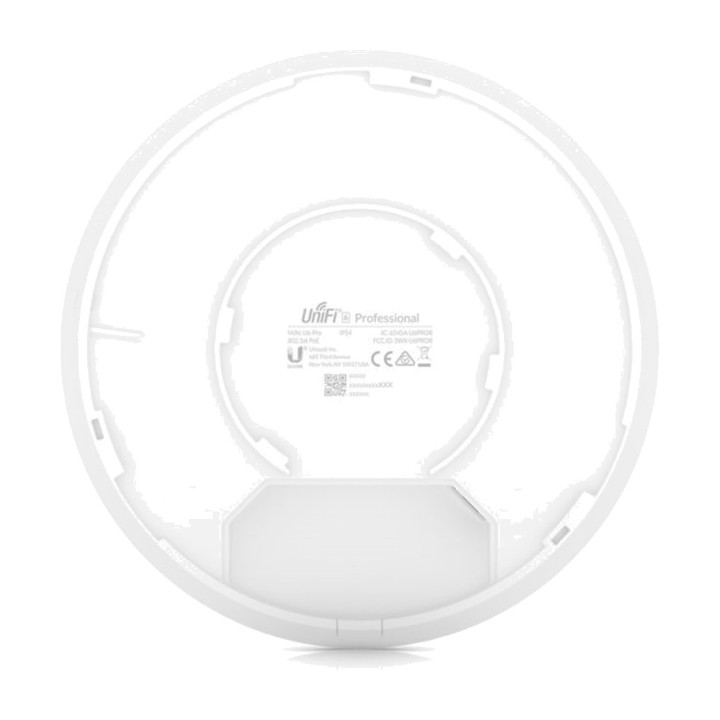

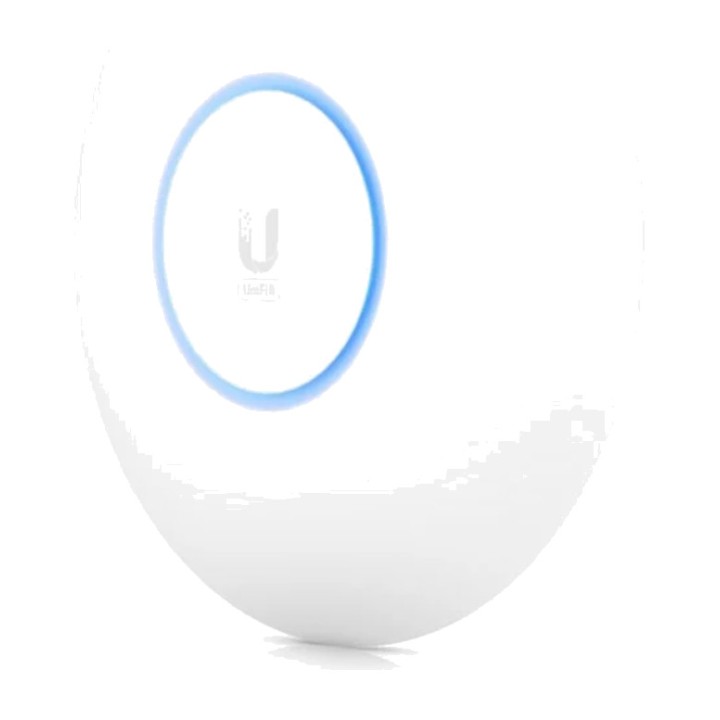

UBIQUITI High-performance WiFi 6 access point UNIFI U6-PRO MGS0000014857

Dual-band indoor WiFi 6 access point that can support more than 300 clients with its total throughput rate of 5,3 Gbps.

NOTE: PoE injector not included, requires 802.3at, such as U-POE-AT

The WiFi 6 Pro access point (U6 Pro) is a high-performance dual-band WiFi 6 access point ideal for home and office use. The U6 Pro can achieve a total throughput rate of up to 5,3 Gbps with
its 5 GHz (4x4 MIMO) and 2,4 GHz (2x2 MIMO) bands, allowing it to support more than 300 simultaneously connected clients while maintaining a consistent and reliable wireless experience throughout your network.
You can also isolate guest traffic to ensure optimal security and speed. The U6 Pro also operates in full 4x4 MIMO with 160 MHz channels to create wireless uplinks of
High capacity and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network app.

Characteristic:

Dual-band Wi-Fi 6 (802.11ax)
5 GHz band (4x4 MU-MIMO) with a throughput rate of 4.8 Gbps
2.4 GHz band (2x2 MIMO) with a throughput rate of 573.5 Mbps
Operates in full 4x4 MIMO with a 160 MHz bandwidth
Capacity for more than 300 simultaneous clients
Guest Traffic Isolation, which improves wireless network security and reduces traffic congestion

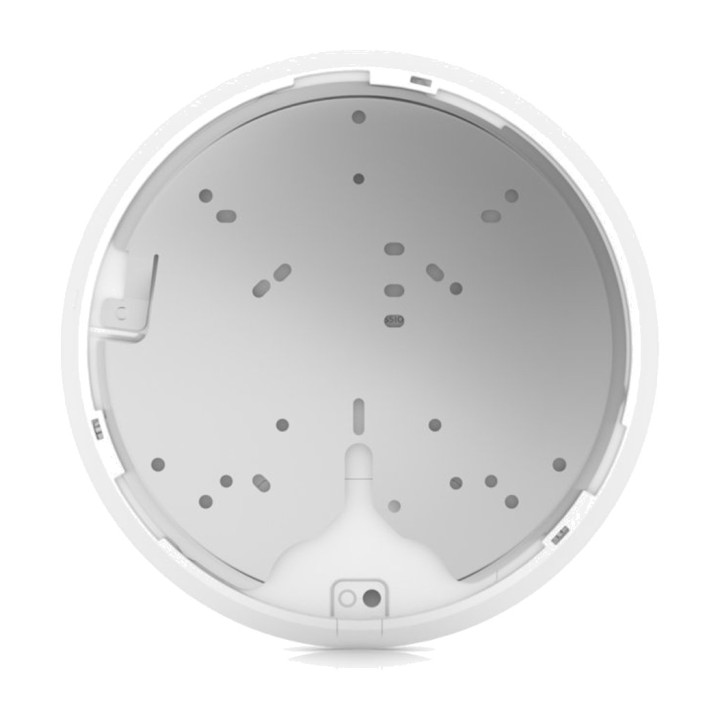

Includes universal mounting plate, backplate and screw set
DIMENSIONS
197 x 35 mm (7,76 x 1,38")

WEIGHT
Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)

Housing material
PLASTIC

mounting hardware
SGCC steel

Waterproofing
IP54

Hardware

Management interfaces
Ethernet/Bluetooth

Network interface

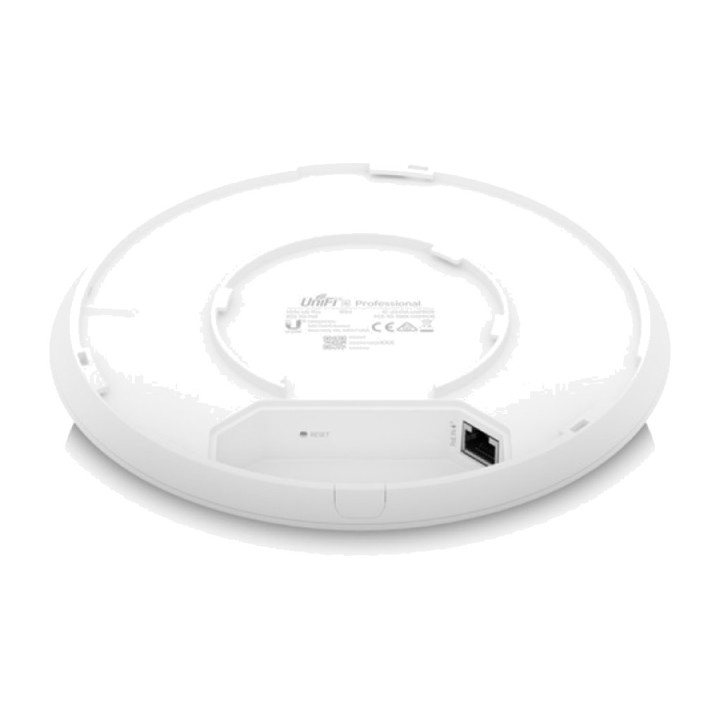

(1) Gb port E RJ45

Button
Factory reset

LED
WHITE BLUE

Power method
802.3at PoE+

Power supply options
UniFi PoE Switch
48 V, 0.5 A PoE adapter (not included)

Supported voltage range
44 a 57 VCC

Max. power consumption
13W

MIMO
2,4 GHz 2x2 (UL MU-MIMO)
5 GHz 4x4 (DL/UL MU-MIMO)

Throughput rate
2.4 GHz 573.5 Mbps
5 GHz 4.8 Gbps

Antenna gain
2.4 GHz 4 dBi
5 GHz 6 dBi

MOUNTING
Wall/ceiling (included)
Operating temperature
-30 a 60 C (-22 a 140 F)

Operating humidity
5 - 95 % non-condensing

Certifications
CE, FCC, IC

SOFTWARE
Wi-Fi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6

Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID
8 per radio

VLAN
802.1Q

QoS
Per-user rate limiting
Guest traffic isolation Supported

Concurrent clients
300+

Zero-wait DFS
In future firmware versions

Supported data rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b 1, 2, 5.5, 11Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) from 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Volume (m ³): 0.0048
