PHOENIX 24-inch all-in-one barebone with webcam and ASUS motherboard CAMPRO-H610T2 LGA1700 DDR4 120W DSP0000024744

Features of the Phoenix Unity CamPro 3 All-in-One Barebone
The Phoenix Unity CamPro 3 is an All-in-One barebone designed for building a customised, reliable all-in-one computer ready for professional, educational or advanced home use. It combines a 23.8-inch Full HD IPS display, Asus H610T2-CSM motherboard, integrated webcam and adjustable ergonomic stand to provide a versatile base that can be configured to suit each user's needs. Its design is intended for those looking for a compact, clean and functional system without the need for a separate tower. Thanks to its compatibility with 12th, 13th and 14th generation Intel processors, DDR4 memory, M.2 and SATA storage, and comprehensive connectivity, the Unity CamPro 3 lets you create balanced configurations for everyday work, administration, video conferencing, light design or multimedia use.

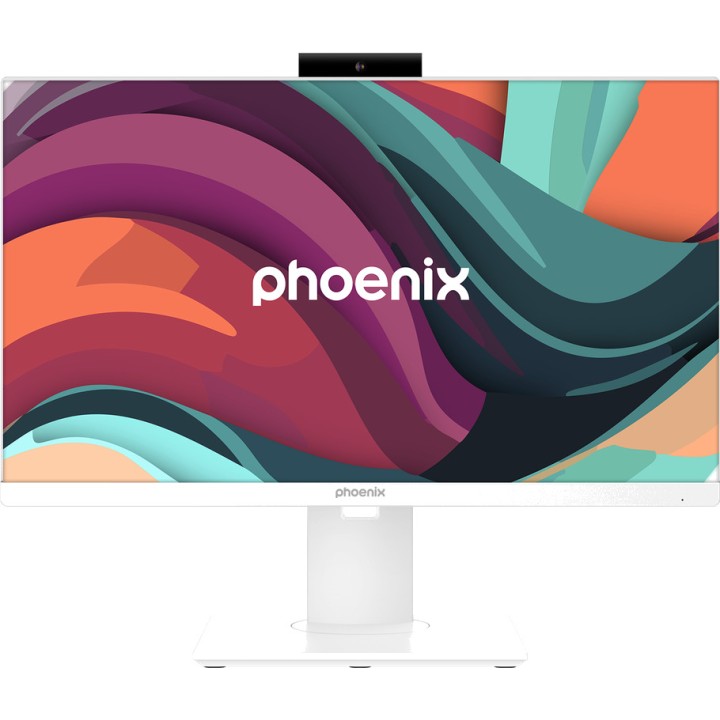

23.8-inch Full HD IPS display
The Phoenix Unity CamPro 3 features a 23.8-inch Full HD IPS display designed to deliver a sharp image, reliable colours and a comfortable viewing experience during everyday work. Its 99% sRGB coverage provides purer whites and accurate colour reproduction for productivity tasks, visual content and professional use.

23.8-inch display
Full HD resolution
IPS panel
sRGB coverage of 99%

Base for building a customised all-in-one computer
This barebone is designed as the perfect base for configuring a custom All-in-One system. It lets you choose key components such as the processor, memory and storage, tailoring the final performance to the needs of a workplace, classroom, shop or home environment.

Compact All-in-One format
Designed for customised configurations
Ideal for offices, education, administration and professional use

Integrated Asus H610T2-CSM motherboard
The Asus H610T2-CSM motherboard manages the components, providing a stable platform ready for Intel processors with an LGA 1700 socket. This board lets you build efficient, up-to-date systems suited to productivity tasks, while retaining the clean, compact form factor typical of an All in One.

Asus motherboard H610T2-CSM
Intel socket LGA 1700
Compatible with 12th, 13th and 14th generation Intel processors
Supports processors with up to 65 W TDP

2 Mpx flip-up webcam with dual microphone
The Unity CamPro 3 features a 2 Mpx flip-up webcam at the top of the system, accompanied by a dual microphone. This integration makes it a practical solution for video calls, online meetings, distance learning or customer service, without the need for additional peripherals.

Integrated 2 Mpx webcam
Flip-up design at the top
Integrated dual microphone
Ideal for video conferencing and collaborative work

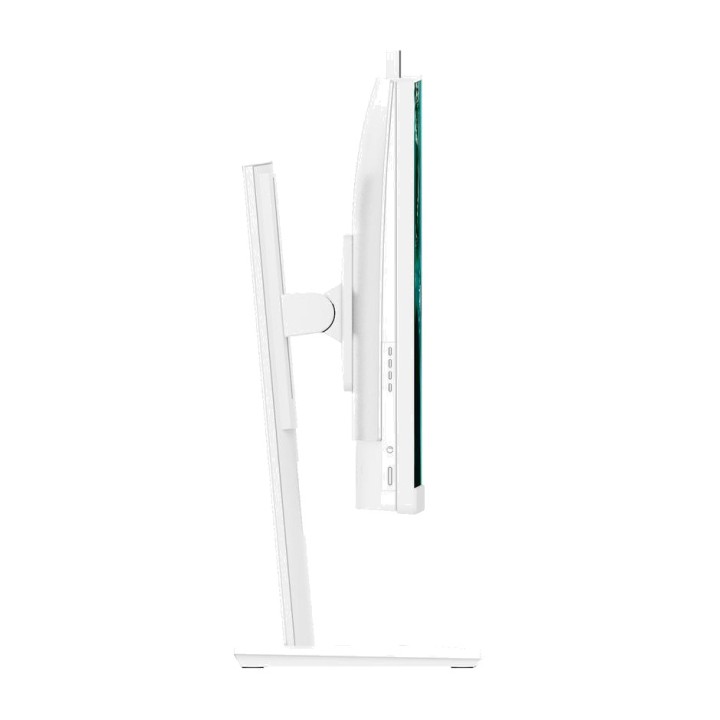

Adjustable ergonomic stand
Its stand lets you adjust the system’s position to suit each user’s needs. The monitor can be raised, lowered and rotated, and the entire All in One can also be rotated to show content to someone else comfortably. This flexibility improves ergonomics and makes it easier to use on shared desks, at reception areas, in classrooms or at service points.

Height adjustable
Allows you to raise and lower the screen
Screen rotation
Rotation of the entire device to share content

DDR4 memory and integrated Intel graphics
The barebone supports DDR4 memory in SO-DIMM format, with a maximum capacity of 64 GB and XMP support. It also uses the integrated Intel graphics of the installed processor, supporting 4K image output at 60 Hz, allowing you to work with external monitors or high-resolution content when the configuration requires it.

2 SO-DIMM slots
Maximum memory : 64 GB DDR4
XMP support
Integrated Intel graphics
4K image support at 60 Hz

M.2 and SATA storage options
The Phoenix Unity CamPro 3 lets you configure storage to suit your needs, combining M.2 PCIe 4.0 drives and SATA connections. This versatility lets you build fast systems for the operating system and applications, alongside additional drives for data storage.

1 x M.2 2260 / 2280 with PCIe support 4.0
12th-generation Intel processors support PCIe mode 4.0 x4
The Intel H610 chipset supports SATA mode
2 x SATA 6.0 Gb/s

Full connectivity for everyday use
This barebone includes a selection of connections designed to meet the usual needs of a modern workstation. It features high-speed USB ports, HDMI output, D-Sub output, an RJ45 network connection and audio connectors, making it easy to connect peripherals, external displays, wired networks and audio devices.

2 x USB 3.2 Gen 2, 1 Type A and 1 Type C
2 x USB 2.0 Type A
1 x D-Sub
1 x HDMI
1 x RJ45
2 x audio jacks

Gigabit networking and high-definition audio
For network connectivity, it features a Realtek RTL8111H Gigabit Ethernet controller with Asus LANGuard, designed to provide a stable wired connection. For sound, it has Realtek 7.1 Surround Sound High Definition Audio CODEC, suitable for multimedia use, video calls and professional tasks.

Realtek RTL8111H 1 Gb Ethernet
Asus LANGuard
Realtek 7.1 Surround Sound High Definition Audio CODEC

Power adapter included
The system is supplied with a 120 W power adapter, suitable for efficient All in One configurations. This power supply helps maintain a compact, tidy form factor, reducing cabling and making installation easier at any workstation.

Power adapter included
Adapter power : 120 W
Designed for compact and efficient configurations

RECOMMENDED USE
The Phoenix Unity CamPro 3 is a suitable solution for those who need a configurable All in One with a quality screen, integrated webcam and adjustable stand. Its compact design and customisation options make it particularly well suited to offices, educational institutions, reception areas, businesses, shops or users looking for a tidy, adaptable All-in-One system.

Offices and administrative workstations
Educational institutions and classrooms
Reception areas and service desks
Remote work and video conferencing
Home use, multimedia and everyday productivity

Other specifications

Product: All in One barebone
Brand: Phoenix
Model: Unity CamPro 3
Display: 23.8-inch Full HD IPS
Color coverage: s RGB 99%
Motherboard: Asus H610T2-CSM
Compatible CPU: Intel Socket LGA 1700
Compatible generations: 12th, 13th and 14th generation Intel
Maximum CPU TDP: up to 65 W
MEMORY : 2 x SO-DIMM DDR4
Maximum memory : 64 GB
XMP support: yes
Graphics: integrated Intel
Video support: 4K at 60 Hz
Video outputs: 1 x D-Sub , 1 x HDMI
M.2 storage: 1 x M.2 2260 / 2280 with PCIe support 4.0
SATA storage: 2 x SATA 6.0 Gb/s
Ethernet: Realtek RTL8111H 1 Gb with Asus LANGuard
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB connections: 2 x USB 3.2 Gen 2 and 2 x USB 2.0 Type A
Additional connectivity: RJ45 and 2 x audio jacks
Webcam: 2 Mpx, foldable
Microphone: dual integrated microphone
Power adapter: 120 W included
Volume (m ³): 0.0498
