EINAREX Micro ATX gaming PC case with tempered glass and handle PULSE PM300-CORE DSP0000043308

Features of the Einarex Pulse PM300 Core Black Tempered Glass Micro-ATX Mid-Tower Case EXCS-PM-300C-B

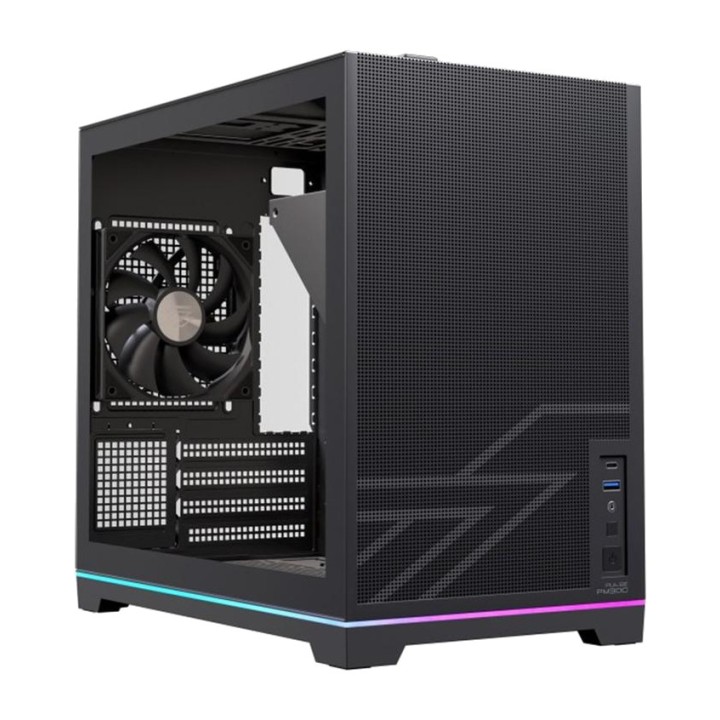

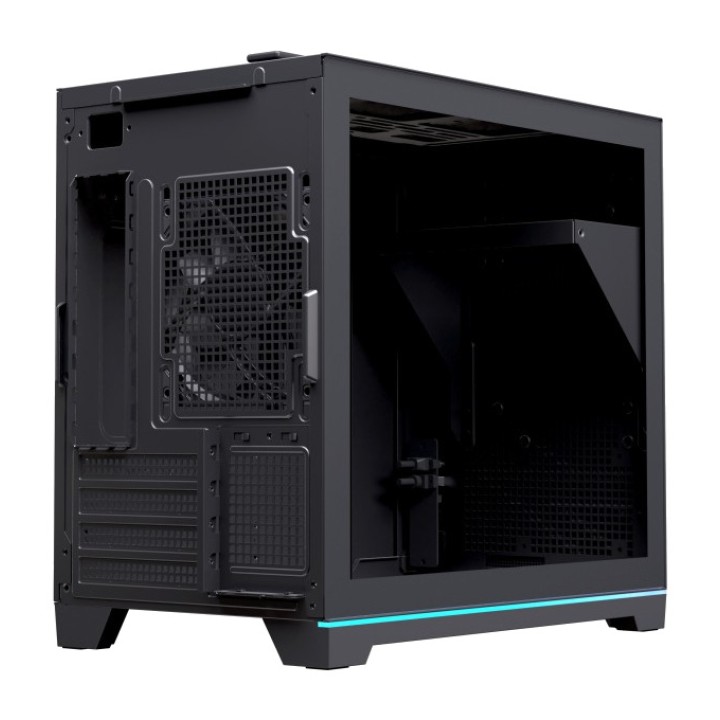

The Einarex Pulse PM300 Core is a compact Micro-ATX case designed for building gaming systems and high-performance computers in a small space. Its structure combines SPCC steel, ABS and clear tempered glass, offering a functional design with a modern look. It features a top handle for easy transport, mesh panels that promote airflow, bottom RGB lighting and an included rear PWM fan. It also supports graphics cards up to 340 mm and liquid cooling systems up to 240 mm, depending on the chosen configuration.

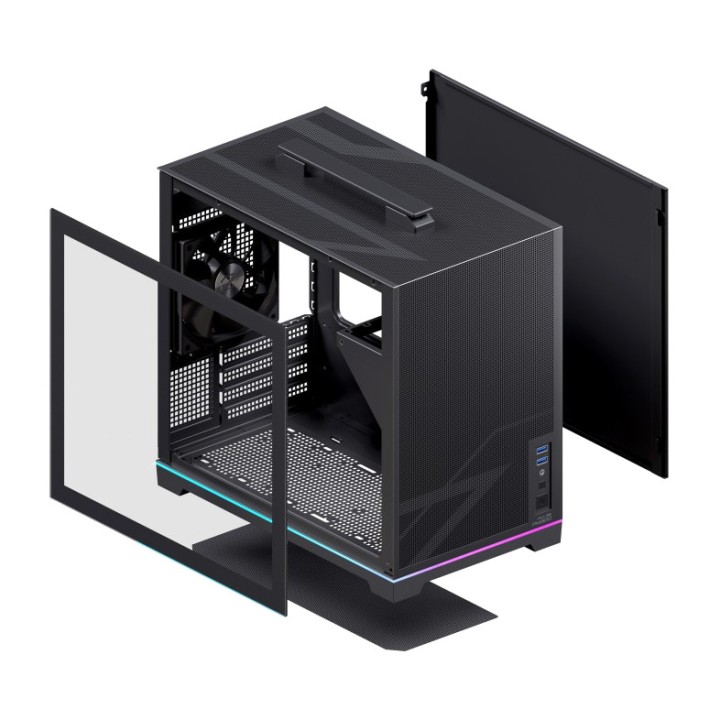

Compact design with carrying handle and tempered glass
The Einarex Pulse PM300 stands out with its Mini-Tower form factor, designed to make the most of space without compromising component compatibility. Its dimensions of 350 x 212 x 336 mm and weight of 4,25 kg make it easy to position and move. The handle integrated into the top makes the system easy to carry, while the tempered glass panel with a sliding mechanism reveals the inside of the computer.

Form factor: Mini-Tower compatible with Micro-ATX and Mini-ITX.
Materials: SPCC steel, ABS and clear tempered glass.
Side panel: tempered glass with sliding design.
Dimensions with feet: 350 x 212 x 336 mm (height x width x depth).
Foot height: 27 mm.
Net weight: 4,25 kg.
Transport: integrated top handle.
COLOR: negro.

Optimised ventilation to maintain performance

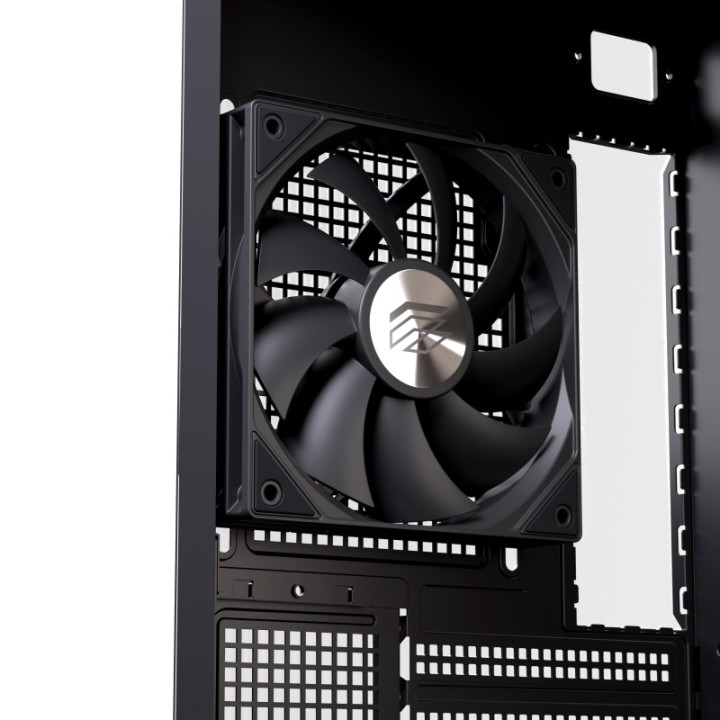

The case features mesh panels on the front and top to promote airflow to the internal components. Its layout allows additional fans to be installed in different positions to adapt cooling to the system's needs. It comes with a rear PWM fan as standard, whose speed can be adjusted via a compatible connection, helping to balance airflow and noise levels.

Included fan: 1 rear PWM fan.
Front ventilation: 1 90 mm fan with an SFX/ATX power supply and air cooler, or 1 120 mm fan with an SFX power supply and air cooler.
Top ventilation: up to 2 140 mm fans or 2 120 mm fans.
Rear ventilation: 1 120 mm fan.
Bottom ventilation: up to 2 120 mm fans.
Mesh panels: located at the front and top to promote airflow.

Compatibility with liquid cooling and large coolers
Despite its compact dimensions, the Pulse PM300 Core supports various cooling solutions to suit the processor and the rest of the hardware. It supports CPU coolers up to 175 mm in height and liquid-cooling systems with radiators up to 240 mm at the top. This flexibility makes it easy to choose between air and liquid cooling, taking into account the space available for the other components.

Maximum CPU cooler height: 175 mm.
Top liquid cooling: radiators up to 240 mm.
Cooling options: compatible with air- or liquid-cooling configurations.

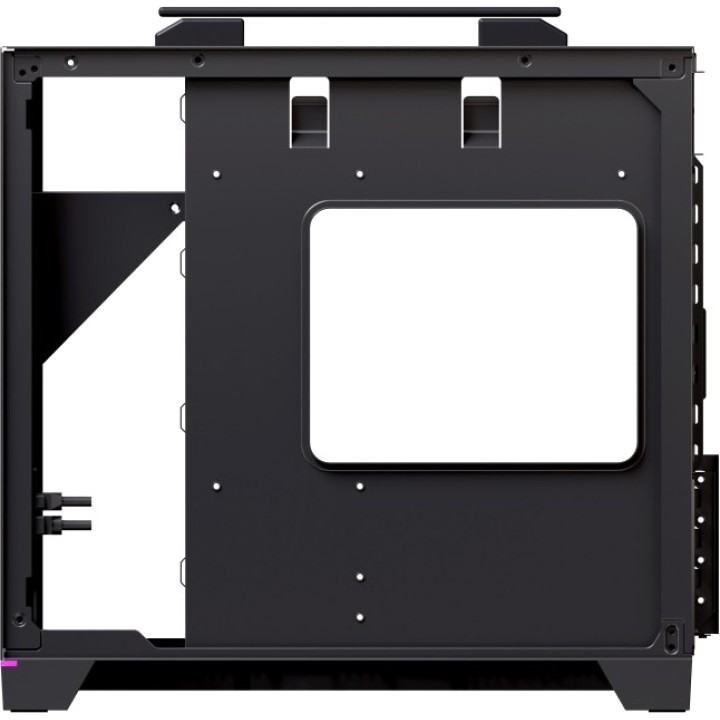

Space for graphics cards and high-performance components
The internal structure is designed to accommodate Micro-ATX and Mini-ITX motherboards, as well as graphics cards of various sizes. It supports GPUs up to 340 mm long with air cooling, while the available space is reduced to 250 mm when using liquid cooling, according to the manufacturer's specifications. It also supports ATX power supplies up to 150 mm and has four PCIe expansion slots.

Compatible motherboards: Micro-ATX and Mini-ITX.
Maximum GPU length with air cooling: 340 mm.
Maximum GPU length with liquid cooling: 250 mm.
Maximum power supply length: 150 mm.
Power supply compatibility: ATX, with SFX configurations also possible.
PCIe expansion slots: 4.

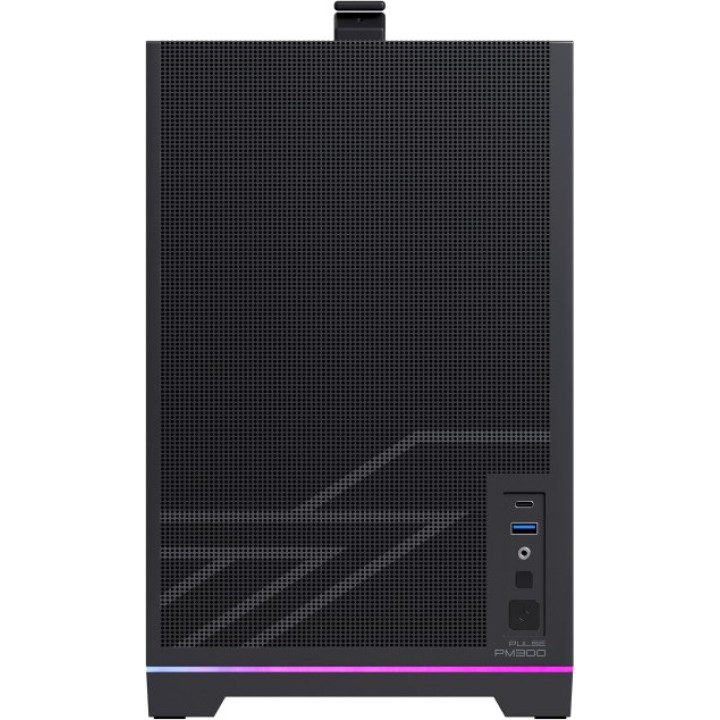

Convenient connectivity with USB 3.0 and USB Type-C
The connection panel on the Einarex Pulse PM300 provides easy access to commonly used ports, without needing to use the motherboard's rear connections. It features one USB 3.0 port, one USB Type-C port and a 3.5 mm audio connection, providing options for connecting peripherals, external drives and compatible audio devices.

USB 3.0: 1 port.
USB Type-C: 1 port.
Audio: 1 3.5 mm combined headphone and microphone jack.

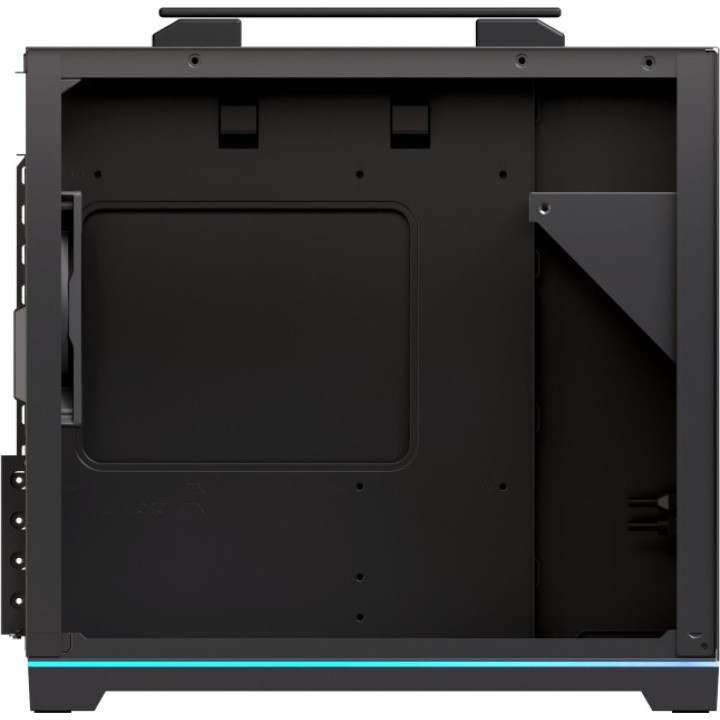

Flexible storage and cable management
The Pulse PM300 Core offers various options for installing SSDs and hard drives to suit the computer's storage needs. Its structure supports configurations with 2.5- and 3.5-inch drives, while the 12 mm of space allocated for cable management helps organize internal connections and keep the build tidier.

Storage configuration 1: 2 2.5-inch drives and 2 3.5-inch drives.
Storage configuration 2: 3 x 2.5-inch drives and 1 x 3.5-inch drive.
Cable management space: 12 mm.

Subtle RGB lighting and modern aesthetics
The exterior design combines a black finish with an RGB lighting strip along the bottom edge, adding a touch of colour without overwhelming the overall look. The transparent tempered glass lets you view the internal components, while the mesh surfaces enhance its technical, functional style. A suitable combination for building a compact gaming PC or a desktop computer with character.

Lighting: RGB strip integrated into the lower area.
Exterior finish: negro.
Side panel: transparent tempered glass.
Design: compact, with mesh panels and a top handle.
Volume (m ³): 0.0677
