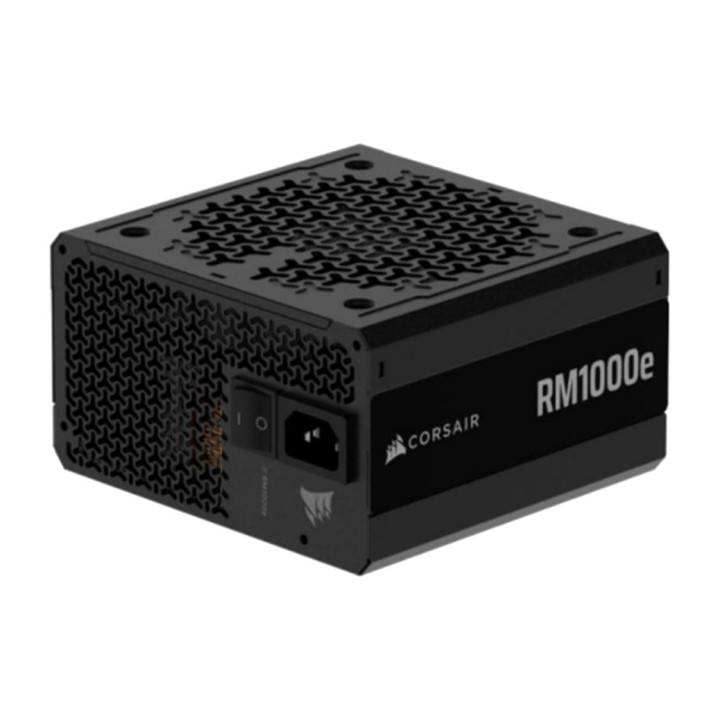

CORSAIR Modular PC power supply RM1000E 3RD GEN 1000W DSP0000042456

Features of the Corsair RM Series RM1000e 1000 W
The Corsair RM Series RM1000e is a 1000 W ATX power supply designed for computers that require high power capacity and connections ready for current hardware. This third-generation RMe features ATX 3.1 and PCIe 5.1 compatibility, a fully modular design and 80 PLUS Platinum certification, combining efficiency, connectivity and a tidier installation.
1000 W of power for high-performance systems
With a total output of 1000 W, the RM1000e can power PC configurations with high-consumption components. Its +12 V rail delivers up to 83.3 A and 1000 W of combined power, while it supports an input voltage of 100 to 240 V.

Total power : 1000 W
Combined power +12 V: 1000 W
Maximum output current +12 V: 83,3 A
Input voltage AC: 100 - 240 V
AC input frequency: 47–63 Hz
Input current : 12 - 6 A

80 PLUS Platinum certification
The power supply is 80 PLUS Platinum certified and has a stated efficiency of 91%. These features enable efficient use of the power supplied to the computer, making it a suitable choice for configurations that require powerful, stable power.

Certification: 80 PLUS Platinum
Efficiency: 91%
Form factor: ATX
Recommended use: PC

Compatible with ATX 3.1 and PCIe 5.1
Its compatibility with ATX 3.1 and PCIe 5.1 makes it easy to integrate into modern configurations. It has a 12+4-pin PCI Express connector with a 650 mm cable, as well as two 6+2-pin PCI Express connectors to expand connection options for different components.

STANDARD : ATX 3.1
Compatibility: PCIe 5.1
12+4-pin PCI Express connectors : 1
12+4-pin PCI Express cable length: 650 mm
6+2-pin PCI Express connectors : 2
4+4-pin CPU power connector: yes

Fully modular design
The fully modular design allows you to use only the cables needed for each configuration, helping keep the inside of the system more organized. The main motherboard connector is a 24-pin ATX connector with a 61 cm cable, while the CPU power cable is 75 cm long.

Design: fully modular
Motherboard power: 24-pin ATX
Motherboard cable length: 61 cm
CPU cable length: 75 cm
Number of power cables SATA: 4
Number of power connectors SATA: 2
SATA power cable length: 750 mm
Power connectors PATA: 2

Active cooling with a 120 mm fan
To manage temperatures during operation, the Corsair RM1000e uses an active cooling system equipped with a 120 mm fan. Its black design makes it easy to integrate aesthetically into a wide range of systems, and it has an integrated on/off switch.

Cooling type: active
Fan: 1 unit
Fan diameter: 12 cm
COLOUR: BLACK
Integrated on/off switch: yes

Other electrical specifications
The RM1000e distributes power across its various output rails to meet the needs of the connected components. Its specifications include 20 A on the +3.3 V and +5 V outputs, as well as a 3 A +5 VSB output.

Maximum output current +3,3 V: 20 A
Maximum output current +5 V: 20 A
Maximum output current +5 VSB: 3 A
Combined power 3,3 V: 150 W
Combined power +5 V: 150 W
Combined power +5 VSB: 15 W
REFERENCE: CP-9020337-EU
