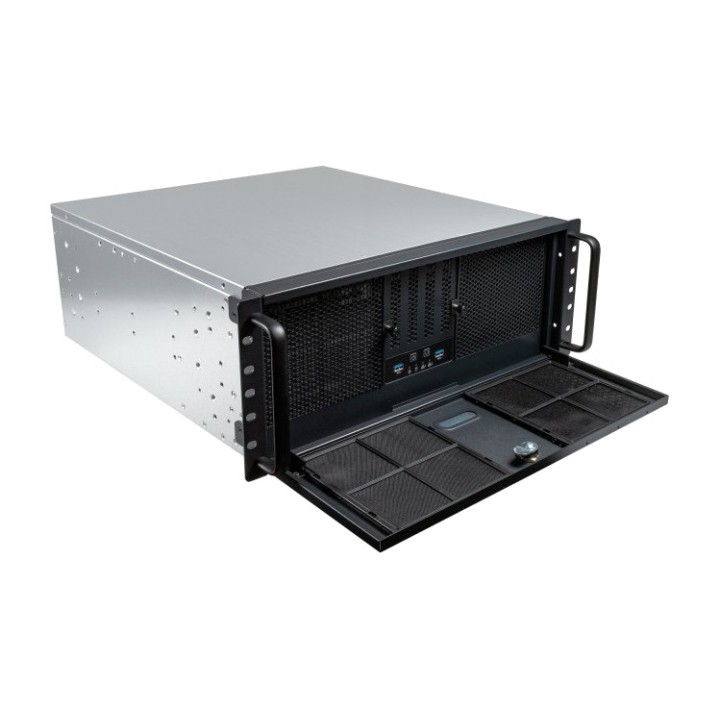

UNYKACH Rackmount server chassis with key lock and redundant power supply 4U 19" ATX-SGCC DSP0000035150

Features of the Unykach UK51918 ATX Silver/Black 19" 4U Rack Case
The Unykach UK51918 is a 4U rack case designed for professional environments that require reliability, security and good cooling capacity. Made from high-strength SGCC steel, it offers a robust design, with a key lock on the front and compatibility with ATX components, including redundant power supplies. Its modular internal design and modern connectivity make it a versatile solution for servers, storage systems or rack workstations.

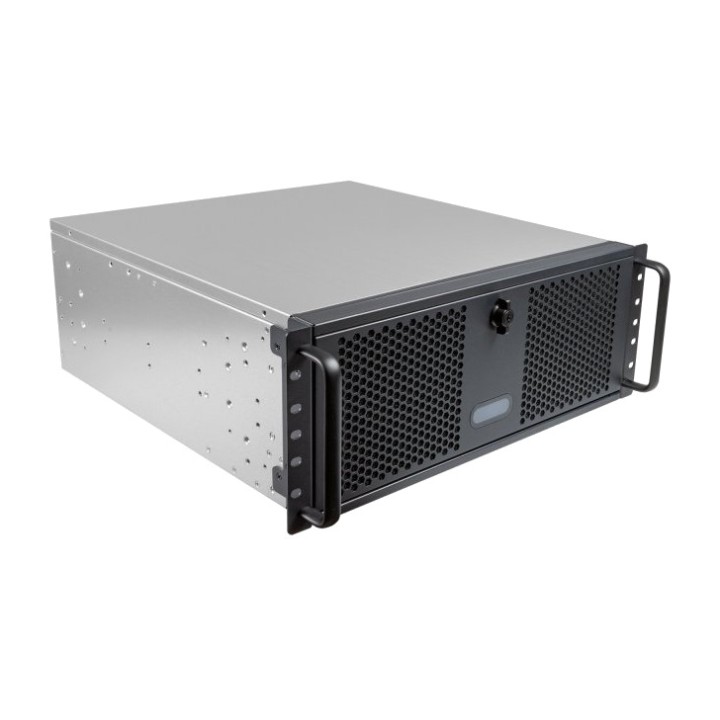

Secure construction and professional design
Designed to provide superior protection, this case is made from 1.2 mm SGCC steel and features a key-lock system on the front panel. This level of security is ideal for critical or shared installations, protecting components from unauthorised access.

Material: 1.2 mm thick SGCC steel
Front lock with key
CE certification and sustainability compliance

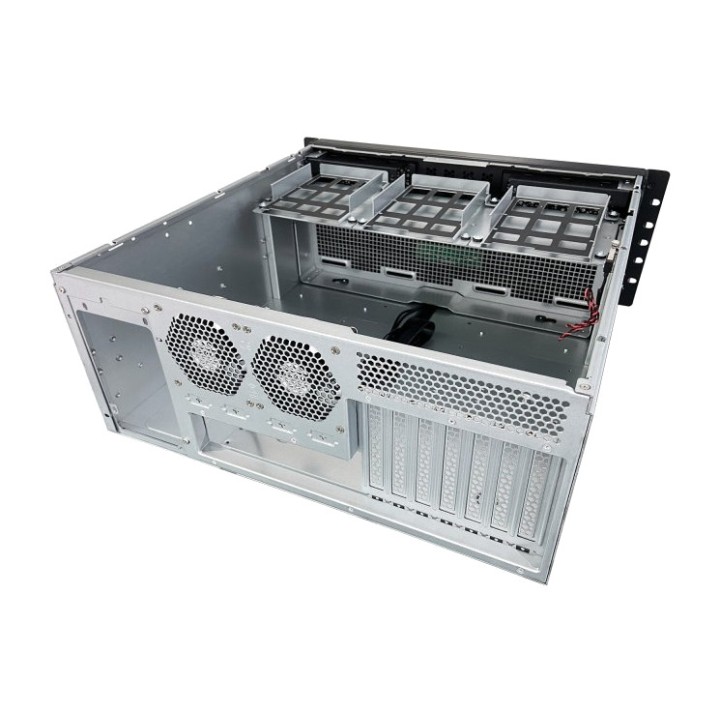

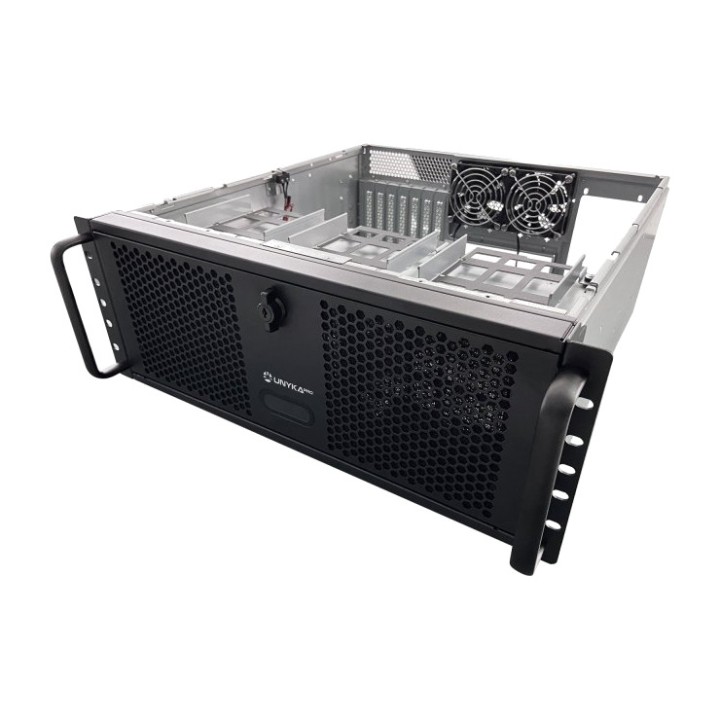

Ample capacity and optimised cooling
The UK51918 is ready for demanding systems, with space for liquid cooling up to 360 mm and included fans to maintain stable temperatures even under heavy loads. It offers flexible installation and efficient airflow.

Compatible with liquid cooling (bracket included)
Rear fans included: 2 x 80 mm
Supports 2 x 120 mm front fans

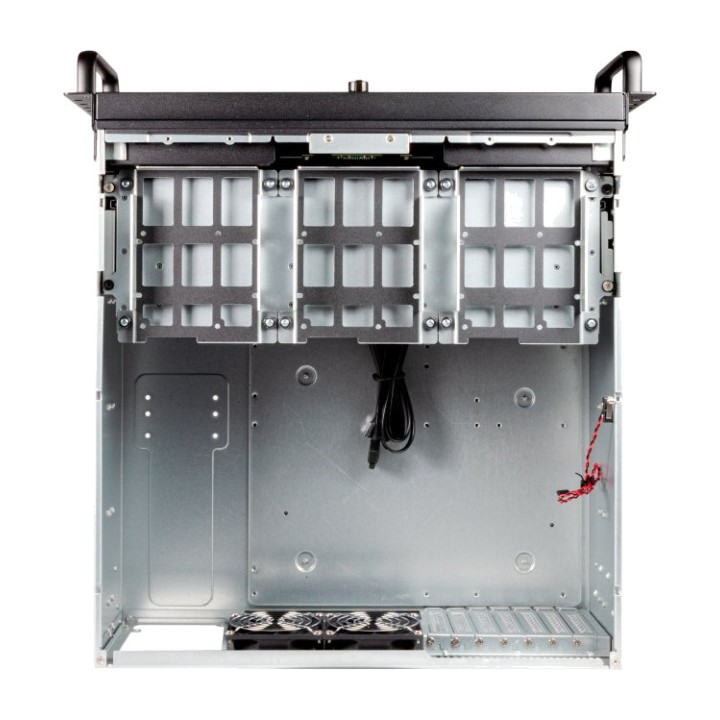

Storage and expansion versatility
With support for 3.5" HDDs and 2.5" SSDs, this case lets you adapt storage to the system’s needs. It also has 7 expansion slots for PCIe cards or other devices.

3 combined bays for HDD 3.5" / SSD 2.5"
7 expansion slots
Integrated dust filter

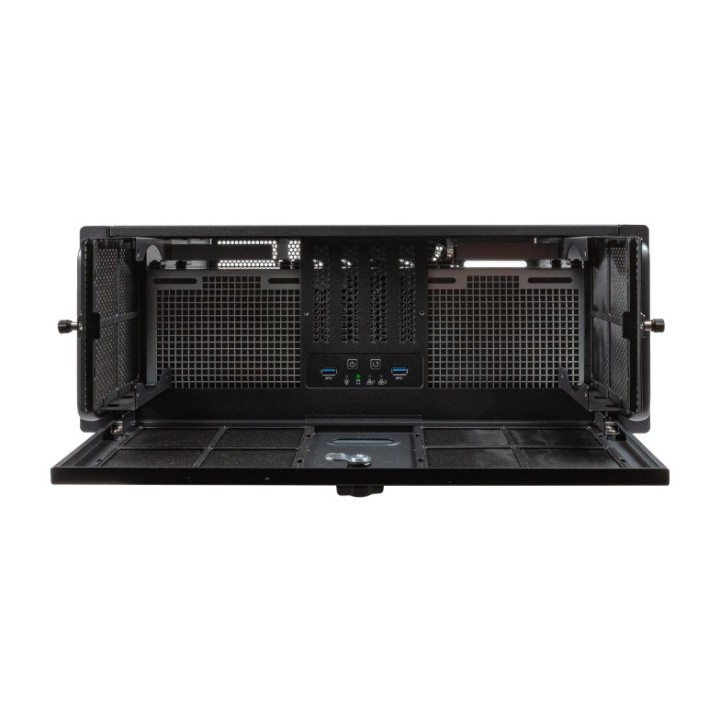

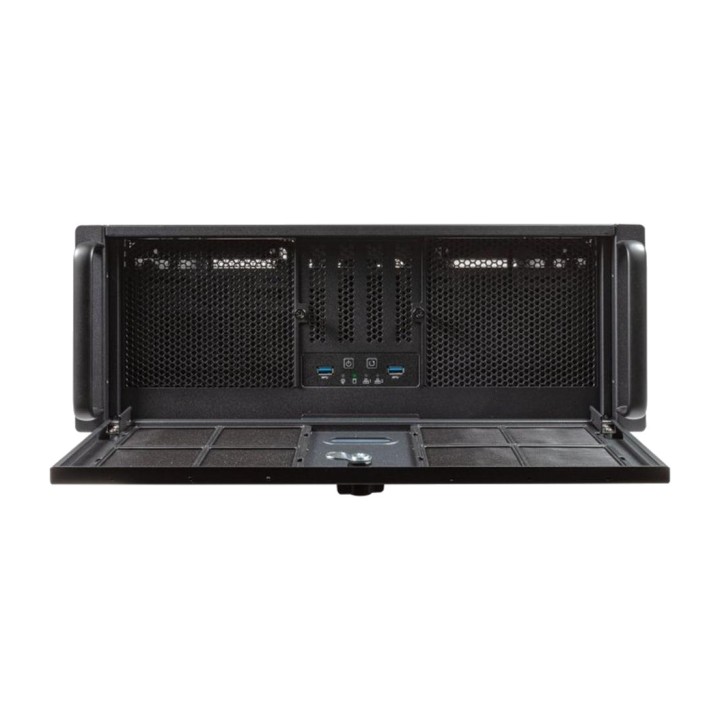

High-speed front connectivity
Equipped with quick-access ports for modern devices, its front panel includes 1 USB 3.0 Type-A port and 1 USB-C 3.2 Gen 2 port, making it easy to transfer data and connect current peripherals.

1 x USB 3.0 (Type A)
1 x USB-C 3.2 Gen 2
Power button and LED indicators

Compatibility with redundant power supplies
This chassis is designed to support standard ATX power supplies or redundant power supplies, improving fault tolerance and availability in critical environments.

Compatible with ATX PSU
Support for redundant power supplies (RPS)
Power supply not included

Dimensions and weight
Its 4U format makes it perfect for installation in 19" racks, taking up little vertical space without compromising internal capacity.

Product dimensions: 430 x 470 x 176 mm
Net weight: 10,3 kg
Packaged dimensions: 565 x 614 x 340 mm
Gross weight: 14,1 kg

Other specifications

Form factor: Rack 19" - 4U
Case type: Server
Color: Black and silver
Rack mounting: Yes
Volume (m ³): 0.0677
