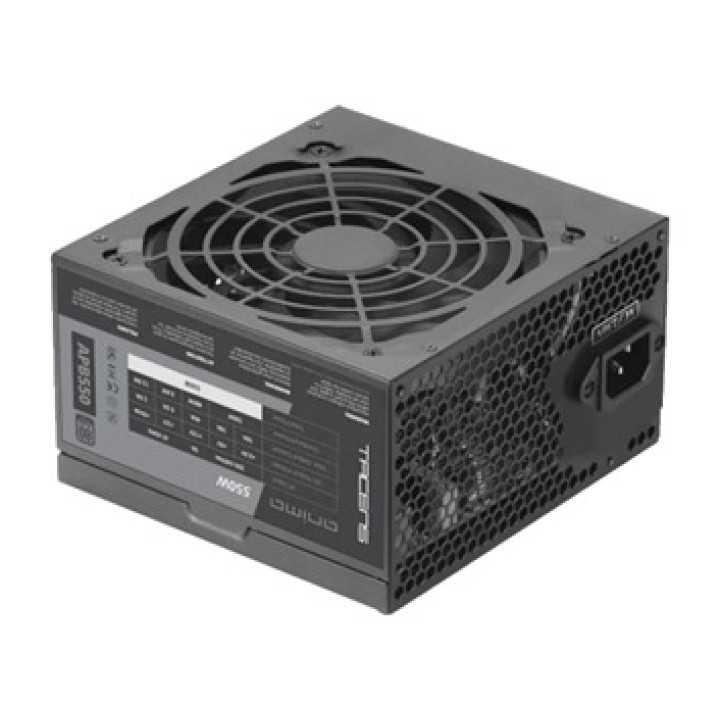

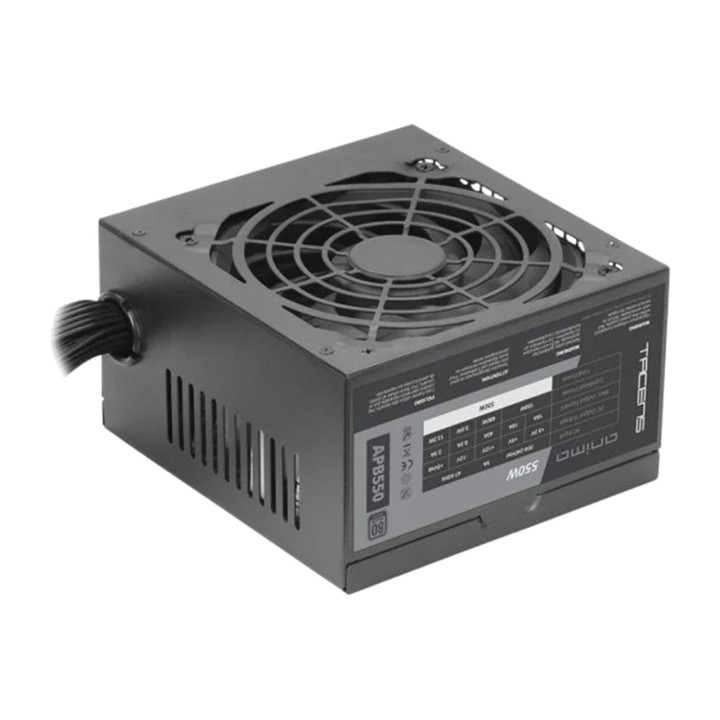

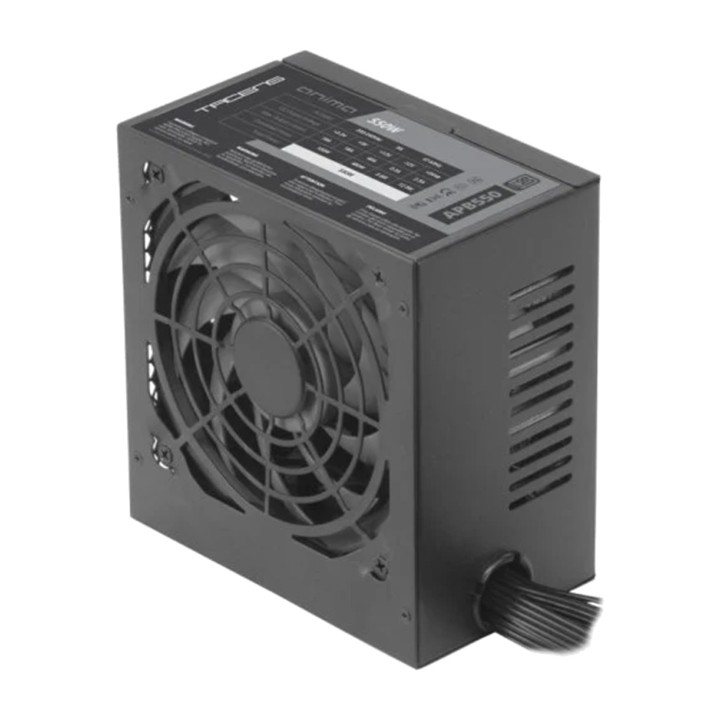

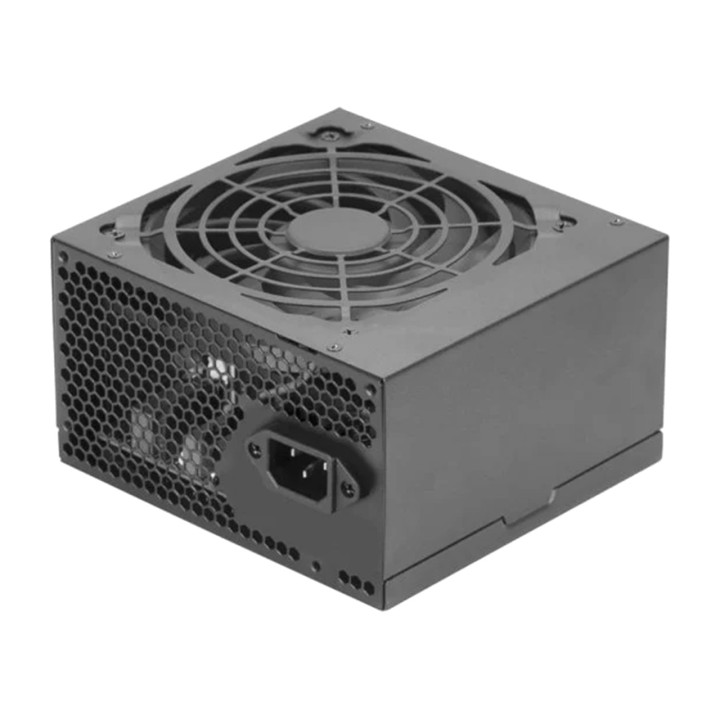

TACENS Quiet 80 Plus Bronze ATX power supply ANIMA APB550 550W DSP0000014579

The Tacens Anima APB550 ATX power supply is designed to deliver up to 550W of power safely and steadily, maximising your computer’s performance.
Characteristic:

OFFICIAL 80PLUS BRONZE CERTIFIED. The APB550 power supply is designed to deliver up to 550W of power safely and evenly and features 99% professional efficiency in the DIGITAL APFC system and 85% of
electrical efficiency and single-rail technology. In addition, the 80 Plus Bronze certification guarantees full and long-lasting operation.
TOTAL SAFETY. SMD TECHNOLOGY. The APB550 power supply is manufactured using ultra-stable, high-precision SMD technology on a double-layer fibreglass PCB, ensuring extreme performance and reliability under
any circumstances. In addition, the APB550 integrates the most advanced electronic safety systems: OVP (overvoltage protection), UVP (undervoltage protection), OCP (overcurrent protection), OPP (overpower protection
) and SCP EXTENDED (total protection against internal and external short circuits).

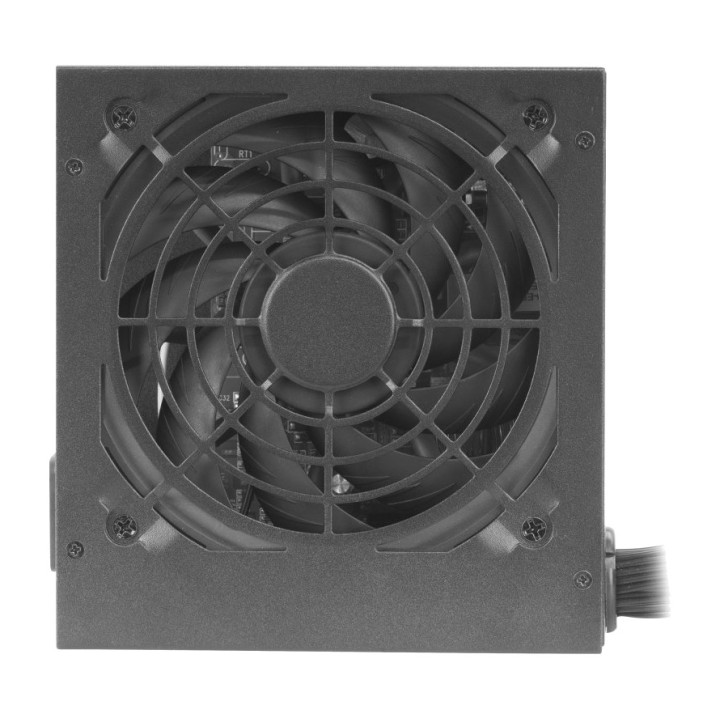

TOTAL SILENCE. Thanks to its ultra-quiet 120mm Tacens fan with anti-vibration system and its grille with unrestricted airflow, you’ll enjoy inaudible operation at 14dB.
FULL BLACK CABLES AND CASING. The APB550 is manufactured with a completely black finish and high-quality, long, flat black cables designed to offer maximum compatibility and convenient
installation: 120+4 pin, 1x12V 4+4 pin, 3xSATA, 2xMOLEX 4 pin and 1xPCI-E 6+2 pin.
PACKAGED WITH HIGH-PROTECTION EPE. To ensure the APB550 power supply arrives in perfect condition, it is fully protected by special packaging with a total shock-absorption system.

Tacens Anima Specifications APB550:

Ports and Interfaces
Maximum input current: 5A
Input voltage: 200-240V 50/60Hz
Output voltage/current : +3.3V - 18A / +5V - 18A / +12V - 40A / -12V - 0.3A / +5VSB - 2.5A
Power factor correction (PFC) type: Active
Connectors: 1x ATX MB 20+4 PIN / 1x EPS +12V 4+4 PIN / 1x PCIe 6+2 PIN / 3x SATA / 2x Molex x 4 PIN

WEIGHT AND DIMENSIONS
Width: 145mm
Depth: 150 mm
HEIGHT: 85MM
Weight: 850g

Cooling
Number of fans : 1
Fan diameter: 12 cm

Design
Product colour: Black
Cabling: Extra-long flat cables
Extras: SMD manufacturing process

Performance
Use with: PC
Power supply form factor (PSU): ATX
POWER: 550W
Noise level: 14dB
Certifications: ATX12V, Haswell Ready, CE, ROHS
Protections: OPP, OVP, UVP, SCP
Volume (m ³): 0.0058
